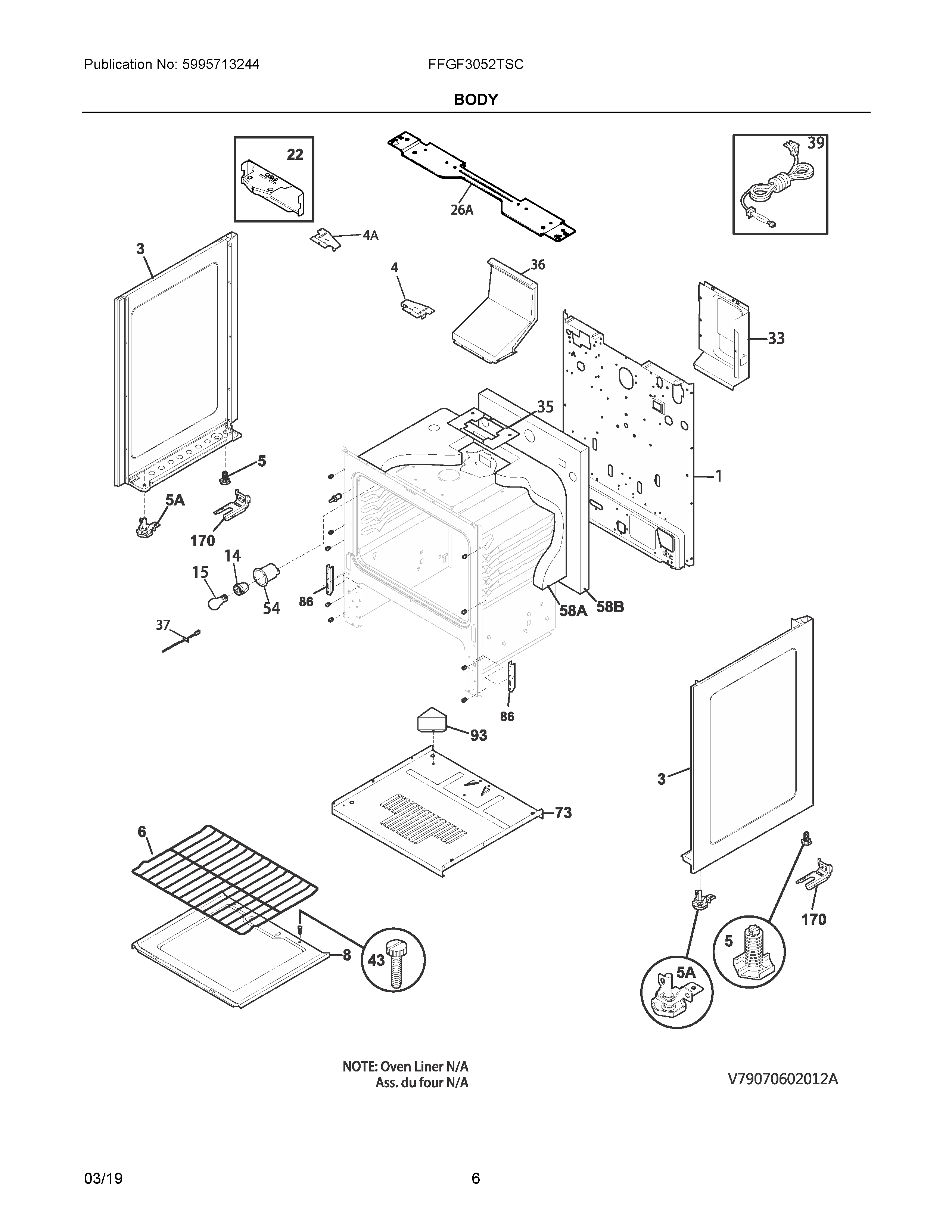

FFGF3052TSC 04 – BODY

Products

PositionProduct
NI5304503371 Frigidaire Oven Harness
NI316418901 Frigidaire Oven Screw
NI316279600 Frigidaire Screw
NIA316001017 Frigidaire Screw
NIA316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
NI5304491650 Frigidaire Block
NIB316116000 Frigidaire Screw
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NIA316064600 Frigidaire Oven Support
NI316021105 Frigidaire Oven Screw
1WCI 316029419
3316400144 Frigidaire Panel
3A316400145 Frigidaire Panel Assembly
4A316605401 Frigidaire Bracket-MAINTOP
4316605400 Frigidaire MAINTOP Bracket
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
5A5304509869 Frigidaire Oven Leveling Leg Assembly
6316067902 Frigidaire Oven Rack
8WCI 316495901
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21316408000 Frigidaire Oven Clip Assembly
22316286300 Frigidaire Bodyside Bracket
26A316498200 Frigidaire Oven Bracket
35316542102 Frigidaire Flue Gasket
36FLUE
37316233903 Frigidaire Range Oven Temperature Sensor
395304515659 Frigidaire Oven Power Cord
43316282700 Frigidaire Oven Screw
54WCI 5303271606
58AINSULATION, OVEN WRAPPER
58B316054202 Frigidaire Insulation
73WCI 316109902
86316441300 Frigidaire Receptacle
93WCI 316110000
