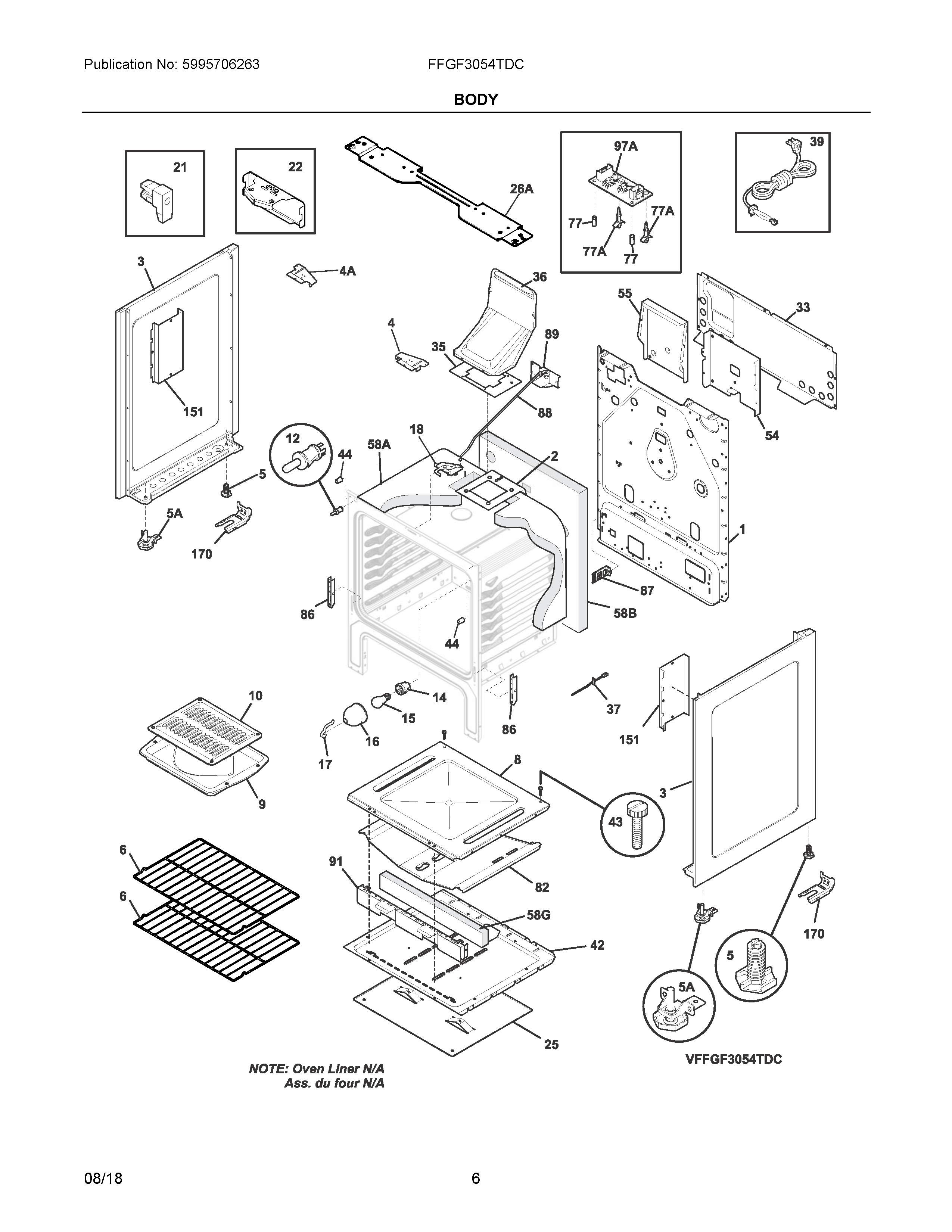

FFGF3054TDC 04 – BODY

FFGF3054TDC 04 – BODY

Written by

in

FFGF3054TDC 04 – BODY

Products

Position	Product
NI	316021132 Frigidaire Screw
NI	316001017 Frigidaire Screw
NIA	316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
NI	316418901 Frigidaire Oven Screw
NI	5304516119 Frigidaire Harness
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	241853202 Frigidaire Refrigerator Screw
NIB	316116000 Frigidaire Screw
NI	316279600 Frigidaire Screw
NI	5303285179 Frigidaire Oven Door Screw
NI	316021105 Frigidaire Oven Screw
NI	316260800 Frigidaire Screw-SHOULDER
NI	316432800 Frigidaire Clip
1	316401608 Frigidaire Back
2	316437100 Frigidaire Brace Assembly DSP
3	316400144 Frigidaire Panel
3A	316400145 Frigidaire Panel Assembly
4	316605400 Frigidaire MAINTOP Bracket
4A	316605401 Frigidaire Bracket-MAINTOP
5A	5304509869 Frigidaire Oven Leveling Leg Assembly
5	316272900 Frigidaire Oven Leg Levelling Plastic Screw
6	316496201 Frigidaire Oven Rack
8	316400603 Frigidaire Oven Stove Bottom Panel
9	WCI 316081900
10	Insert,broiler panOPTIONAL ACCESS0RY
12	316445501 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	316087500 Frigidaire Oven Retainer
18	316405800 Frigidaire Assembly Latch
21	316408000 Frigidaire Oven Clip Assembly
22	316286300 Frigidaire Bodyside Bracket
25	316406200 Frigidaire Oven Shield
26A	316498200 Frigidaire Oven Bracket
33	316402500 Frigidaire Oven Shield
35	316542102 Frigidaire Flue Gasket
36	FLUE
37	316490000 Frigidaire Oven Range Temperature Sensor
39	5304515659 Frigidaire Oven Power Cord
42	316400700 Frigidaire Shield
43	316282700 Frigidaire Oven Screw
44	316517600 Frigidaire Oven Spacer
54	5304512756 Frigidaire Shield
55	5304510473 Frigidaire Shield
58G	08067973 Frigidaire 0 Insulation
58A	316403700 Frigidaire Insulation
58B	WCI 316403600
77	316247900 Frigidaire Oven Spacer
77A	316114100 Frigidaire Oven Spacer
82	316400801 Frigidaire Oven Shield
86	316441300 Frigidaire Receptacle
87	316401202 Frigidaire Bracket
88	316232702 Frigidaire Rod
89	MOTOR
91	SHIELD, BURNER, FRONT
97A	5304515148 Frigidaire Oven Board
151	SHIELD, HEAT, BODYSIDE, (2)
