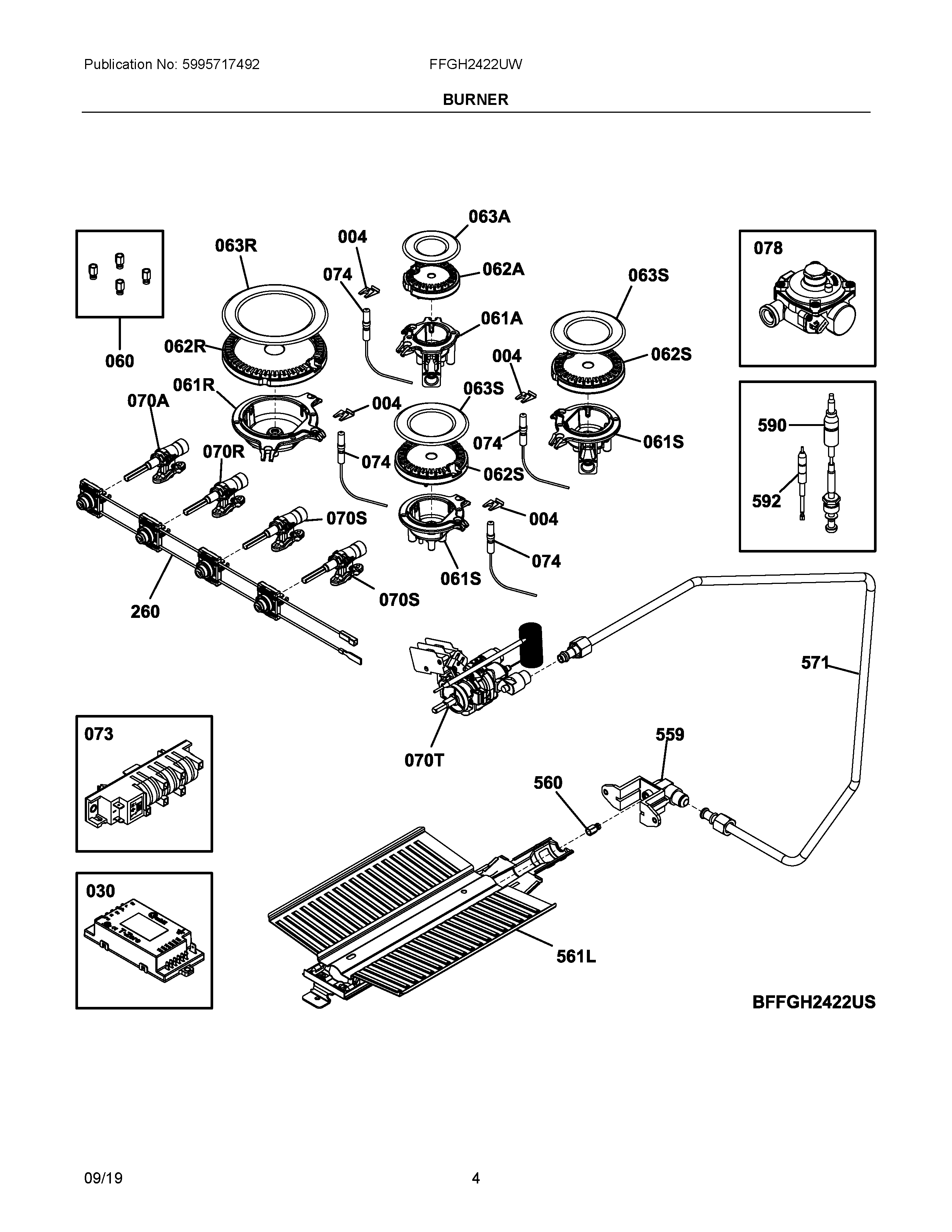

FFGH2422UW 03 – BURNER

FFGH2422UW 03 – BURNER

Written by

in

FFGH2422UW 03 – BURNER

Products

PositionProduct
NI5029426600 Frigidaire Screw Pack
NIBOLT, 9X13MM T10
4CLIP, SPRING, IGNITOR/THMCPLE
30357233503 Frigidaire PC Board
60405547395 Frigidaire Orifice Set
60A405549276 Frigidaire ORIFICE SET
61AA01483803 Frigidaire Burner Body
61RA01484003 Frigidaire Burner Body
61SA01483903 Frigidaire Burner Body
62A354013801 Frigidaire Top Burner
62R354013605 Frigidaire Burner Top
62S354013701 Frigidaire Range Top Burner
63A807242403 Frigidaire Cap
63S807242402 Frigidaire Cap
63R807242401 Frigidaire Range Cap
70RVALVE, TOP BURNER, LARGE
70AVALVE, TOP BURNER, SMALL
70TA13030601 Frigidaire Thermostat
70SA15580202 Frigidaire Valve Assembly
73SPARK MODULE
74357069804 Frigidaire Igniter
78REGULATOR
260A13059201 Frigidaire Switch Assembly
559SUPPORT NOZZLE, OVEN BURNER
560131002392 Frigidaire ORIFICE
560A354400003 Frigidaire Orifice
561LA14238401 Frigidaire Burner Assembly
571TUBE, SUPPLY, OVEN BURNER
590342907301 Frigidaire Thermocouple
592342906802 Frigidaire Igniter
