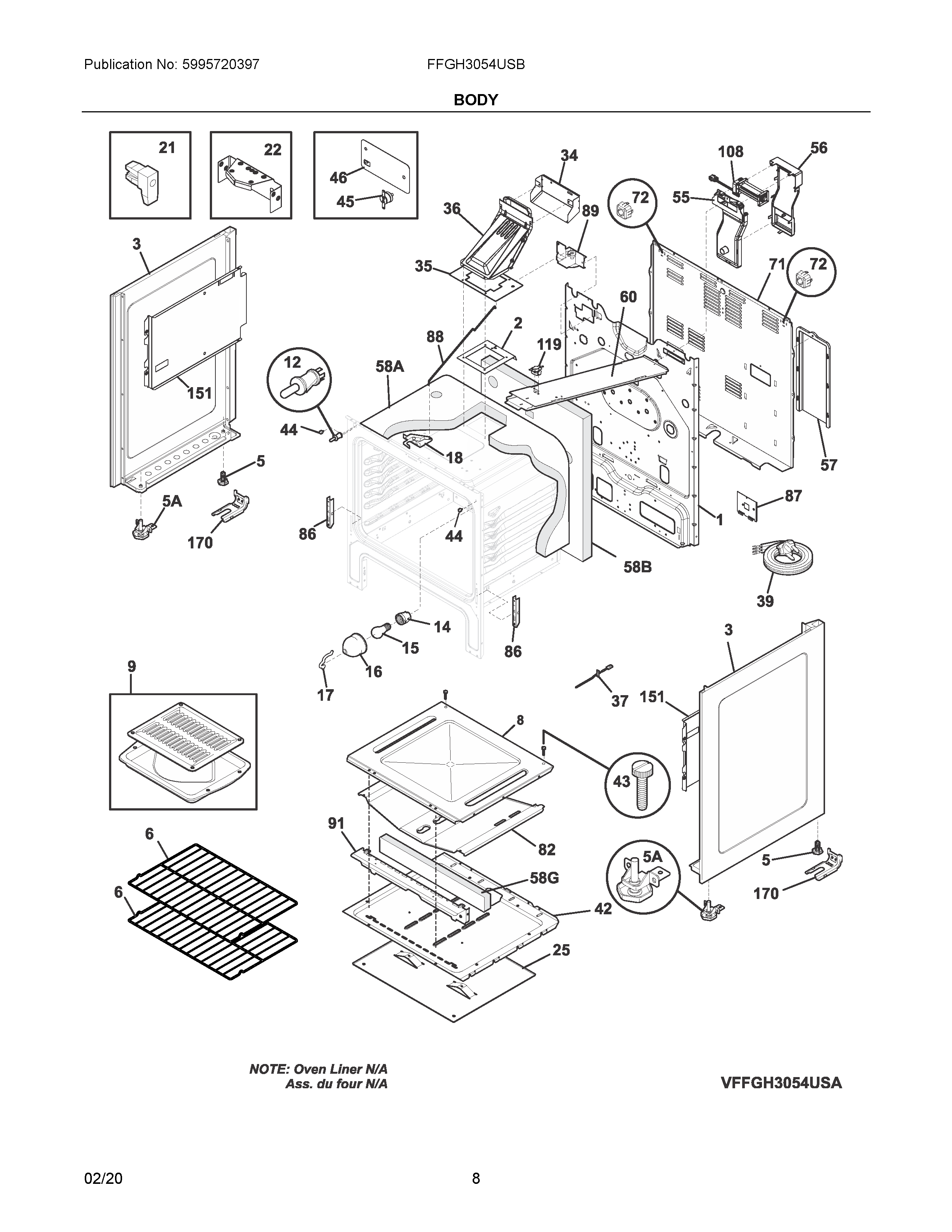

FFGH3054USB 04 – BODY

FFGH3054USB 04 – BODY

Written by

in

FFGH3054USB 04 – BODY

Products

PositionProduct
NIB316116000 Frigidaire Screw
NI316021132 Frigidaire Screw
NIA316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
NI316001017 Frigidaire Screw
NI316418901 Frigidaire Oven Screw
NIA316432800 Frigidaire Clip
NI316021109 Frigidaire Oven Screw
NIA241853202 Frigidaire Refrigerator Screw
NI5304518244 Frigidaire Oven Harness
NI5303285179 Frigidaire Oven Door Screw
NI316021105 Frigidaire Oven Screw
NIA316279600 Frigidaire Screw
NIA5304514202 Frigidaire Nut
NI316260800 Frigidaire Screw-SHOULDER
15304514161 Frigidaire Back
2316437100 Frigidaire Brace Assembly DSP
3A316400145 Frigidaire Panel Assembly
3316400144 Frigidaire Panel
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
5A5304509869 Frigidaire Oven Leveling Leg Assembly
6316496201 Frigidaire Oven Rack
8316400603 Frigidaire Oven Stove Bottom Panel
9BROIL PAN KIT, PAN & INSERT, SLATE BLUE, OPTIONAL, ACCESSORY
12316445501 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18316405800 Frigidaire Assembly Latch
21316408000 Frigidaire Oven Clip Assembly
225304514125 Frigidaire Bracket Assembly
25316406200 Frigidaire Oven Shield
345304514137 Frigidaire Shield
35316542102 Frigidaire Flue Gasket
365304514132 Frigidaire FLUE Box
37316490000 Frigidaire Oven Range Temperature Sensor
395304534000 Frigidaire Cord
42316400700 Frigidaire Shield
43316282700 Frigidaire Oven Screw
44316517600 Frigidaire Oven Spacer
455304514198 Frigidaire Thermostat
465304514193 Frigidaire Plate
555304514171 Frigidaire Oven Duct
565304514172 Frigidaire Oven Duct
57DUCT
58A316403700 Frigidaire Insulation
58BWCI 316403600
58G08067973 Frigidaire 0 Insulation
605304522591 Frigidaire Duct Assembly
715304514175 Frigidaire Shield
725304514177 Frigidaire Spacer
82316400801 Frigidaire Oven Shield
86316441300 Frigidaire Receptacle
87316602200 Frigidaire Plate
88316232702 Frigidaire Rod
89MOTOR
91SHIELD, BURNER, FRONT
1085304514166 Frigidaire Fan Assembly
119318578506 Frigidaire Oven High Limit Thermostat
1515304518926 Frigidaire Shield
