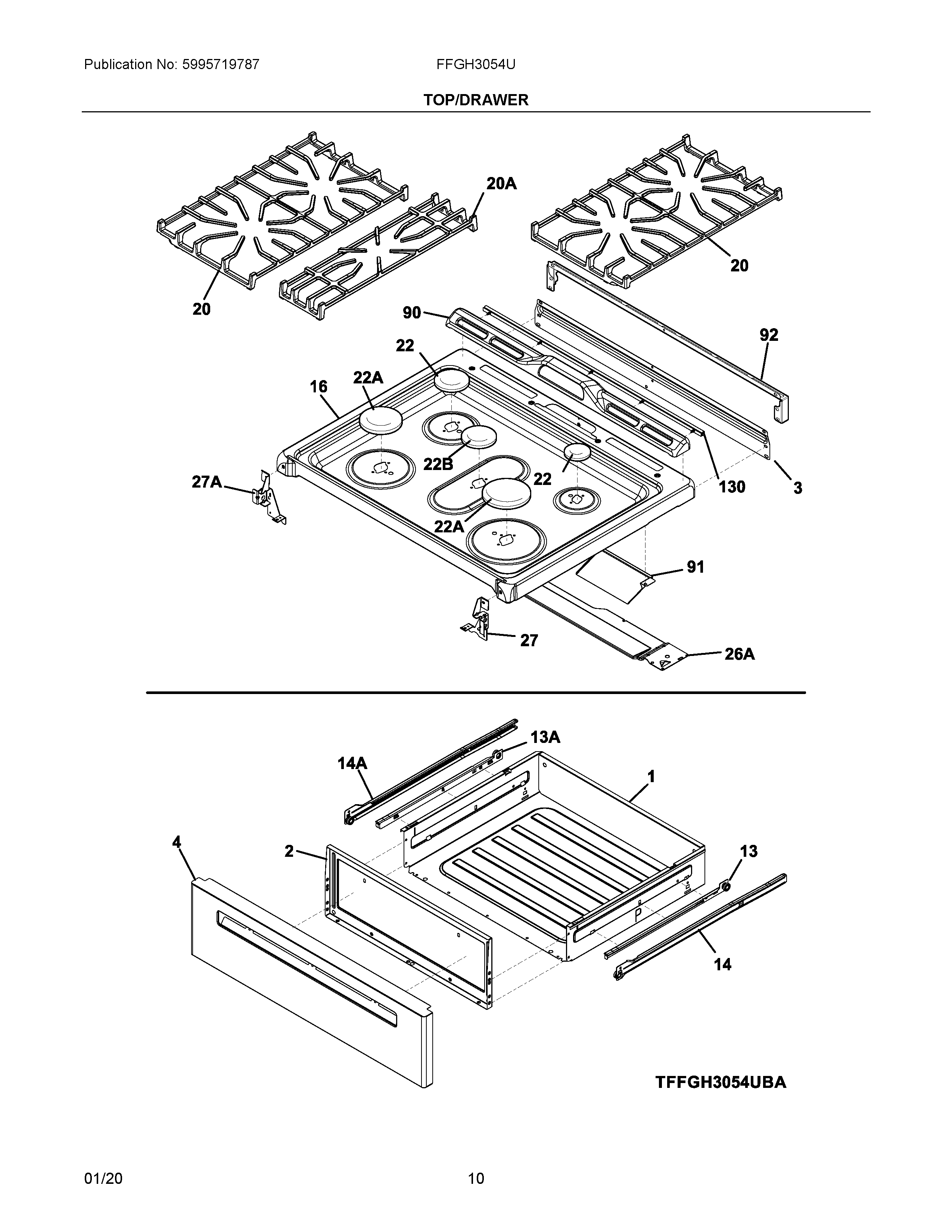

FFGH3054UWA 05 – TOP/DRAWER

FFGH3054UWA 05 – TOP/DRAWER

Written by

in

FFGH3054UWA 05 – TOP/DRAWER

Products

PositionProduct
NI5303285179 Frigidaire Oven Door Screw
NI316021105 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
1316408706 Frigidaire Oven Drawer Assembly
25304527988 Frigidaire Liner
35304514133 Frigidaire Oven Shield
45304513124 Frigidaire Oven Control Panel
135304517905 Frigidaire Oven Inner Right Hand Drawer Glide (Black)
13A5304517903 Frigidaire Oven Glide Drawer
14A5304517902 Frigidaire Oven Glide Drawer
145304517904 Frigidaire Oven Outer Right Hand Drawer Glide (Black)
165304521980 Frigidaire Maintop
20A5304518359 Frigidaire Oven Grate
205304518358 Frigidaire Oven Burner Grate
22B5304520372 Frigidaire Oven Surface Burner Cap Assembly
22A5304520371 Frigidaire Oven Surface Burner Cap
225304520370 Frigidaire Oven Surface Burner Cap
26ABRACKET, SUPPORT, REAR, CHASSIS
27A5304514124 Frigidaire Bracket
275304514123 Frigidaire Bracket
90TRIM VENT, VENT, WHITE, REAR
915304514181 Frigidaire Deflector Assembly
925304520261 Frigidaire Rear Filler Kit
130808931802 Frigidaire Oven Seal
