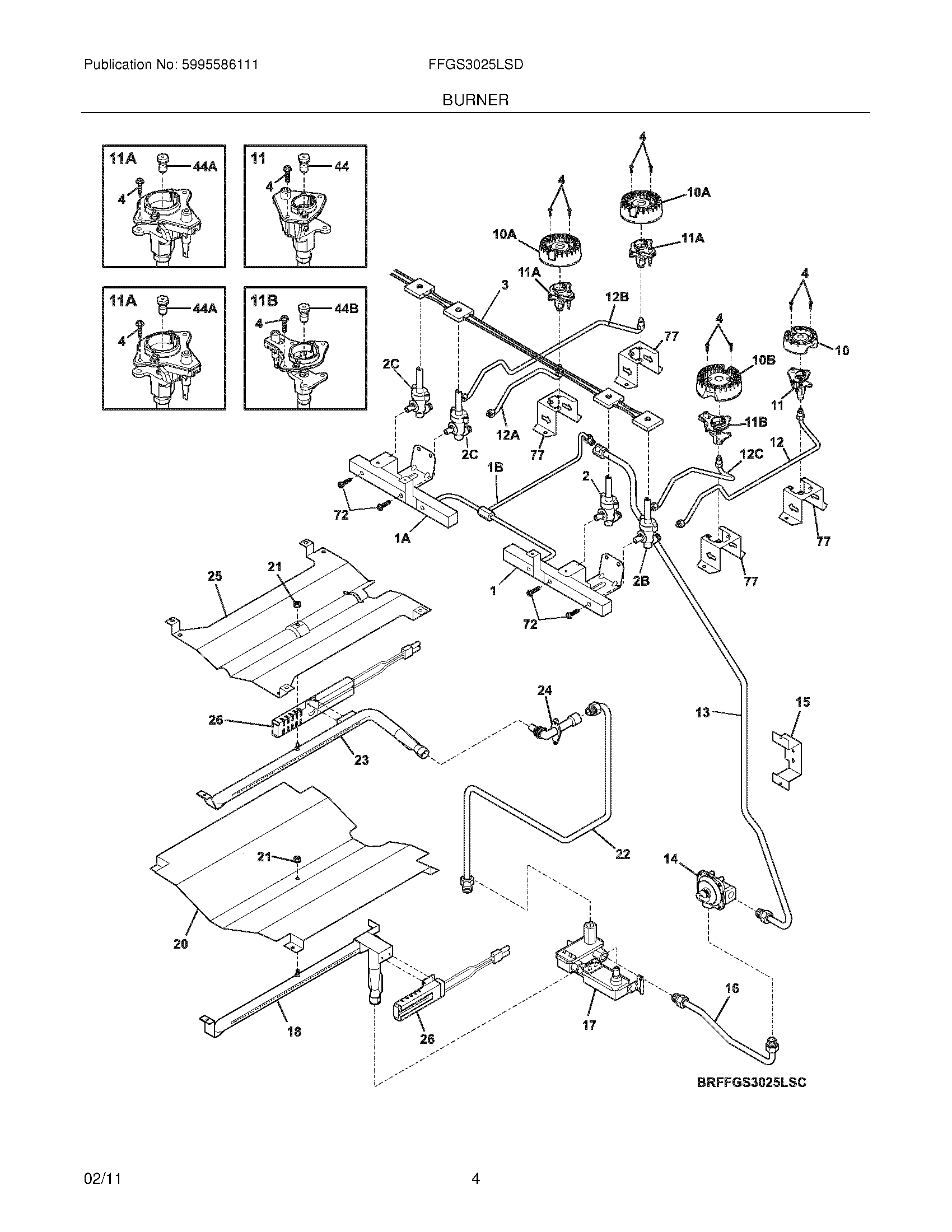

FFGS3025LSD 05 – BURNER

FFGS3025LSD 05 – BURNER

Written by

in

FFGS3025LSD 05 – BURNER

Products

PositionProduct
NI318565404 Frigidaire Conversion Kit
NIScrew,No.8-18 x 3/8 ,(10)
NI5300803416 Frigidaire Dishwasher Screw
NI5303323137 Frigidaire Oven Screw
NI5303211311 Frigidaire Refrigerator Screw
NI318199776 Frigidaire Electrical Harness
NI5303323129 Frigidaire Oven Screw
NIWCI 5304463705
NI318268600 Frigidaire Oven Harness
1B318305410 Frigidaire Oven Tube
1318305600 Frigidaire Oven Manifold
1AWCI 318305601
2B318233900 Frigidaire Oven Valve
2WCI 318233930
2CWCI 318233910
3WCI 318232659
4316240600 Frigidaire Igniter Mounting Screw
10B316438600 Frigidaire Range Sealed Burner, 14K
10316438200 Frigidaire Range Sealed Burner, 5K
10A316558300 Frigidaire Oven 9.5L Sealed Burner
11A316540700 Frigidaire Igniter/Orifice Assembly
11B316543206 Frigidaire Igniter Orifice Assembly
11316540800 Frigidaire Igniter/Orifice Assembly
12318916801 Frigidaire Tube
12CWCI 318916701
12A318916501 Frigidaire Tube
12BWCI 318916601
13WCI 318305110
145304521339 Frigidaire Regulator
15318262810 Frigidaire Oven Bracket
16WCI 318289500
17316404901 Frigidaire Oven Valve
18318292200 Frigidaire Oven Burner
20WCI 318290400
215303013272 Frigidaire Oven Nut
22318305203 Frigidaire Tube
23WCI 318292300
24WCI 316409703
25WCI 316401301
265303935066 Frigidaire Oven Flat Igniter 17" Leads
44B316527513 Frigidaire Oven Orifice
44A316527500 Frigidaire Oven Burner Orifice
44316527504 Frigidaire Oven Orifice
72316215600 Frigidaire Oven Screw
77WCI 318920300
