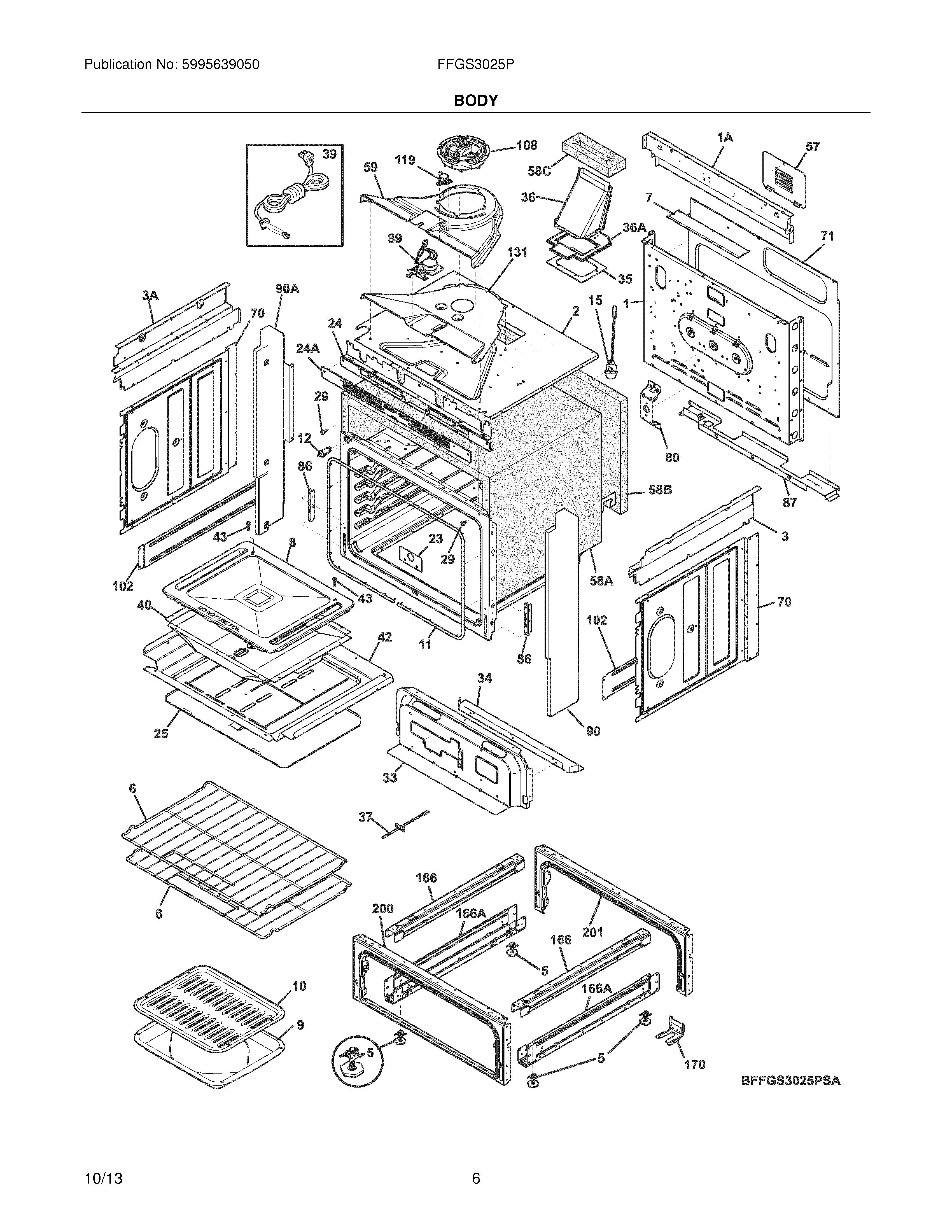

FFGS3025PBA 07 – BODY

FFGS3025PBA 07 – BODY

Written by

in

FFGS3025PBA 07 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIWCI 807704601
NI316021109 Frigidaire Oven Screw
NI316418900 Frigidaire Oven Screw
NIWCI 318579001
NI316001017 Frigidaire Screw
NI808041201 Frigidaire Oven Harness
1A139004600 Frigidaire Oven Panel
1139017306 Frigidaire Oven Panel
2139078201 Frigidaire Shield
3WCI 318225230
3AWCI 318225231
5Screw,leveling ,w/tee nut
6WCI 139011800
8139005002 Frigidaire Oven Panel
9318138801 Frigidaire Oven Pan
10316082001 Frigidaire Oven Insert
11807545502 Frigidaire Oven Seal
12316445501 Frigidaire Oven Switch
155304528790 Frigidaire Lamp Assembly Appliance
23139004500 Frigidaire Cover
24139074902 Frigidaire Vent Trim Frame
24A139075001 Frigidaire Oven Cover
25318291900 Frigidaire Bracket Assembly
29316517600 Frigidaire Oven Spacer
33WCI 318287800
34318289402 Frigidaire Panel
35318291300 Frigidaire Oven Seal
36AWCI 139008300
36139004402 Frigidaire BOX
37SENSOR
395304515659 Frigidaire Oven Power Cord
40139004700 Frigidaire Oven Box
42139004800 Frigidaire Oven Shield
43316282700 Frigidaire Oven Screw
57316283600 Frigidaire Oven Cover
58AINSULATION, WRAPPER, TOP & SIDES
58C318594401 Frigidaire Insulation
58BWCI 139011000
59139078002 Frigidaire Oven Duct
70139000601 Frigidaire Oven Shield
71139014001 Frigidaire Oven Shield
80139021101 Frigidaire Bracket Assembly
86318561100 Frigidaire Receptacle
87WCI 318260624
895304528836 Frigidaire Motor
90A5304511890 Frigidaire Oven Panel
905304511889 Frigidaire Oven Panel
102139004100 Frigidaire PANEL
108318575612 Frigidaire Oven Cooling Fan Motor
119807144901 Frigidaire Thermostat
131139078102 Frigidaire Oven Duct
166WCI 318298403
166318298410 Frigidaire Oven Bracket
1705304486410 Frigidaire Oven Kit
200WCI 318335600
201318298233 Frigidaire Oven Frame
2015303289910 Frigidaire Oven Screw
201318531701 Frigidaire Spacer
