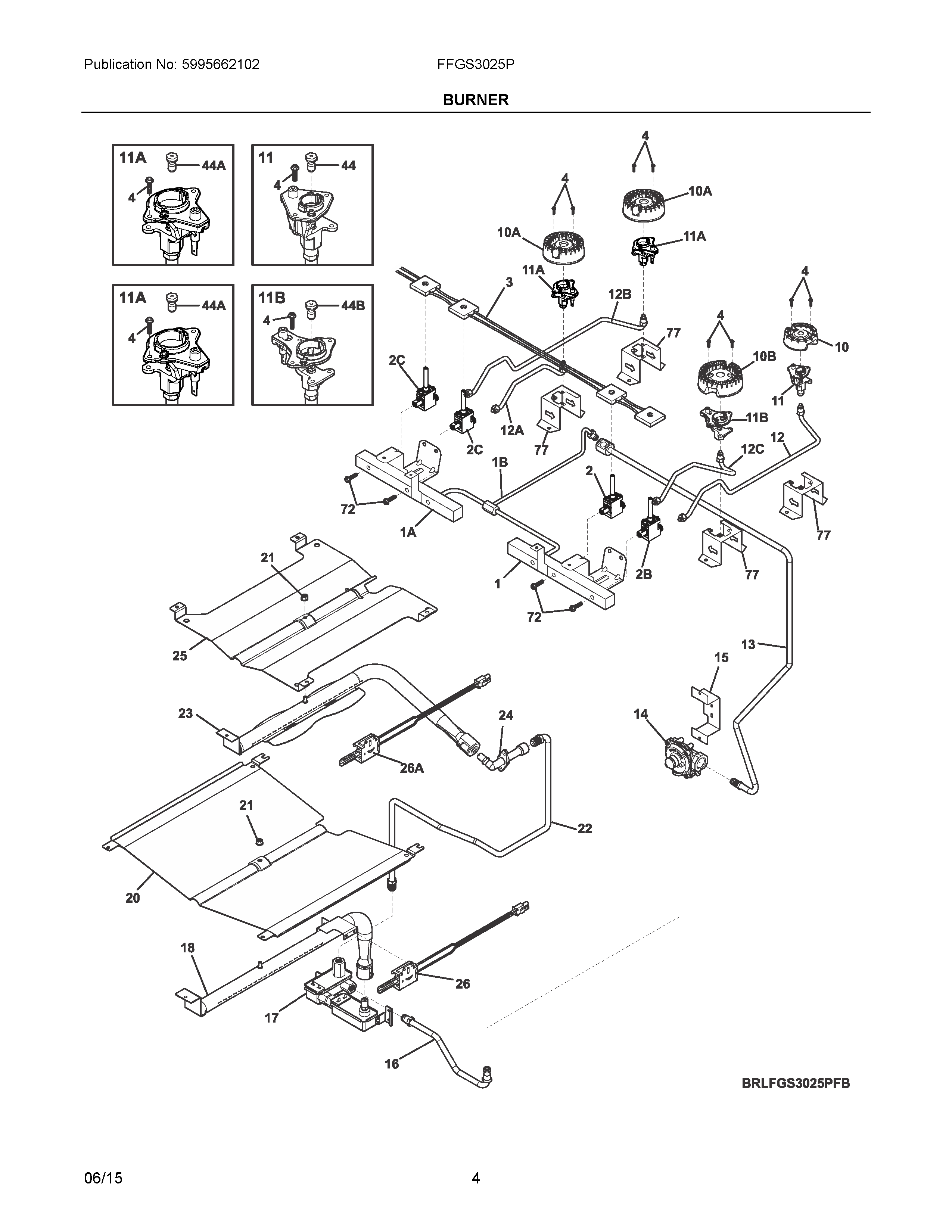

FFGS3025PBE 03 – BURNER

FFGS3025PBE 03 – BURNER

Written by

in

FFGS3025PBE 03 – BURNER

Products

PositionProduct
NI316418901 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
NI316260800 Frigidaire Screw-SHOULDER
NI316021109 Frigidaire Oven Screw
NI318565404 Frigidaire Conversion Kit
NI318199776 Frigidaire Electrical Harness
NI808041201 Frigidaire Oven Harness
1AWCI 318305601
1318305600 Frigidaire Oven Manifold
1B318305410 Frigidaire Oven Tube
2316271306 Frigidaire Oven Valve
2C316271301 Frigidaire Oven Valve
2B316271302 Frigidaire Oven Valve
3WCI 5304491103
4316240600 Frigidaire Igniter Mounting Screw
10B316438600 Frigidaire Range Sealed Burner, 14K
10316438200 Frigidaire Range Sealed Burner, 5K
10A316558300 Frigidaire Oven 9.5L Sealed Burner
11A316540700 Frigidaire Igniter/Orifice Assembly
11316540800 Frigidaire Igniter/Orifice Assembly
11B316543206 Frigidaire Igniter Orifice Assembly
12A318916501 Frigidaire Tube
12BWCI 318916601
12CWCI 318916701
12318916801 Frigidaire Tube
135304496152 Frigidaire Tube
145304521339 Frigidaire Regulator
15318262810 Frigidaire Oven Bracket
16WCI 318289500
17SAFETY VALVE
185304502520 Frigidaire Oven Burner
20139005100 Frigidaire Oven Baffle
215303013272 Frigidaire Oven Nut
22139009500 Frigidaire Tube
23139007101 Frigidaire Burner
24WCI 316409703
25WCI 316401301
26A139013701 Frigidaire Igniter
26139013700 Frigidaire Igniter
44B316527513 Frigidaire Oven Orifice
44316527504 Frigidaire Oven Orifice
44A316527500 Frigidaire Oven Burner Orifice
72316215600 Frigidaire Oven Screw
77WCI 318920300
