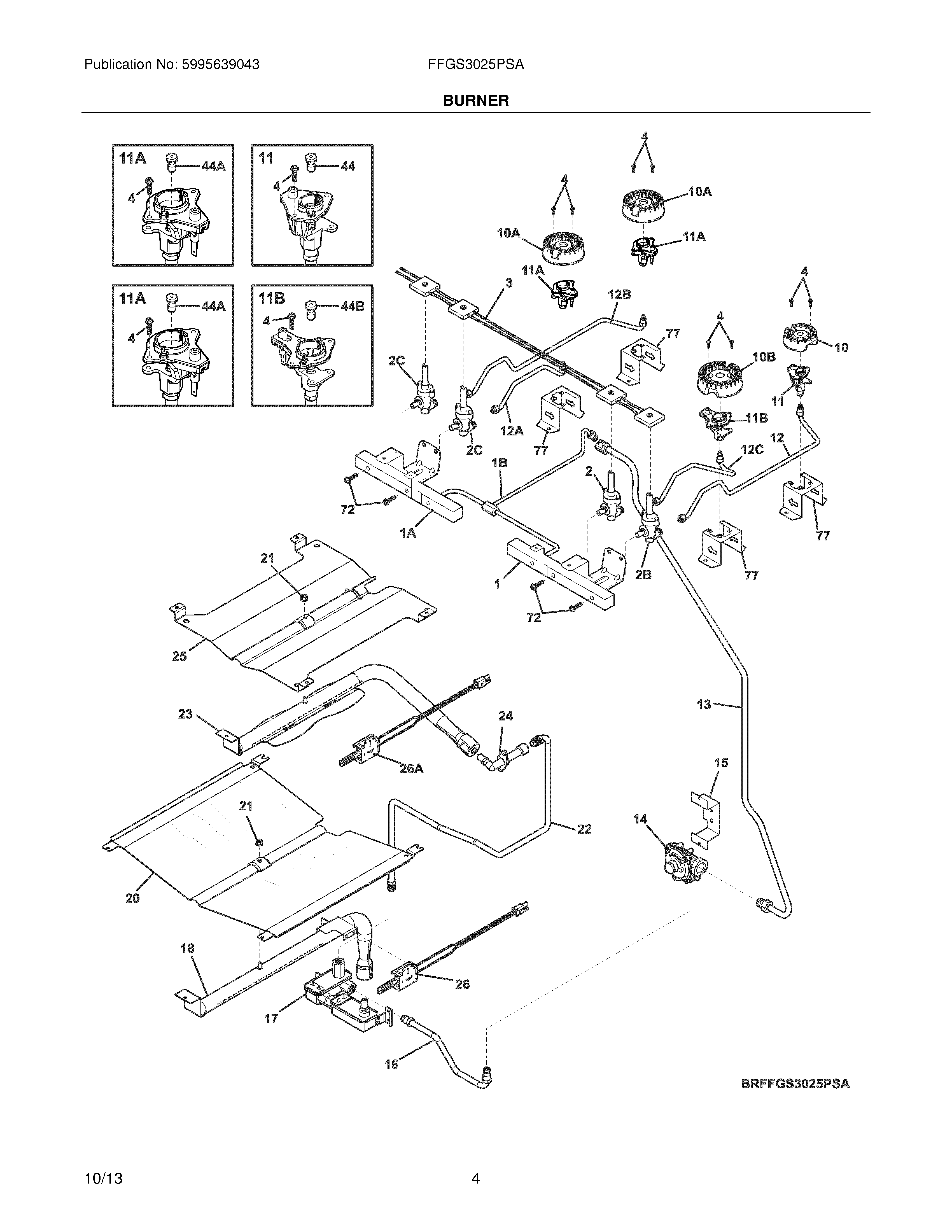

FFGS3025PSA 05 – BURNER

Products

Position	Product
NI	316418901 Frigidaire Oven Screw
NI	316021105 Frigidaire Oven Screw
NI	316260800 Frigidaire Screw-SHOULDER
NI	316021109 Frigidaire Oven Screw
NI	808041201 Frigidaire Oven Harness
NI	318565404 Frigidaire Conversion Kit
NI	318199776 Frigidaire Electrical Harness
1	318305600 Frigidaire Oven Manifold
1A	WCI 318305601
1B	318305410 Frigidaire Oven Tube
2C	WCI 318233910
2B	318233900 Frigidaire Oven Valve
2	WCI 318233930
3	WCI 318232659
4	316240600 Frigidaire Igniter Mounting Screw
10B	316438600 Frigidaire Range Sealed Burner, 14K
10A	316558300 Frigidaire Oven 9.5L Sealed Burner
10	316438200 Frigidaire Range Sealed Burner, 5K
11A	316540700 Frigidaire Igniter/Orifice Assembly
11	316540800 Frigidaire Igniter/Orifice Assembly
11B	316543206 Frigidaire Igniter Orifice Assembly
12C	WCI 318916701
12A	318916501 Frigidaire Tube
12B	WCI 318916601
12	318916801 Frigidaire Tube
13	WCI 318305110
14	5304521339 Frigidaire Regulator
15	318262810 Frigidaire Oven Bracket
16	WCI 318289500
17	SAFETY VALVE
18	5304502520 Frigidaire Oven Burner
20	139005100 Frigidaire Oven Baffle
21	5303013272 Frigidaire Oven Nut
22	139009500 Frigidaire Tube
23	139007101 Frigidaire Burner
24	WCI 316409703
25	WCI 316401301
26A	139013701 Frigidaire Igniter
26	139013700 Frigidaire Igniter
44B	316527513 Frigidaire Oven Orifice
44	316527504 Frigidaire Oven Orifice
44A	316527500 Frigidaire Oven Burner Orifice
72	316215600 Frigidaire Oven Screw
77	WCI 318920300
