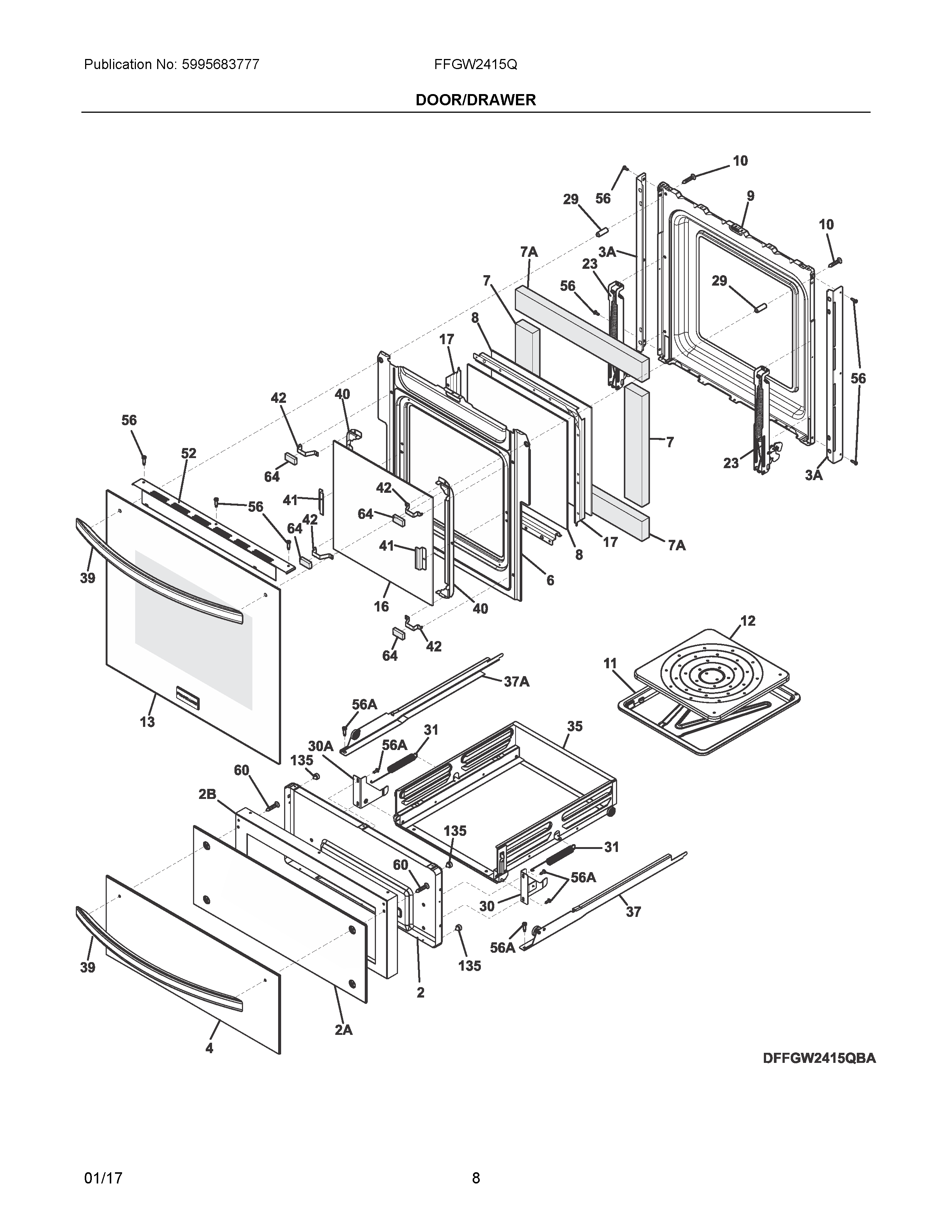

FFGW2415QBB 05 – DOOR/DRAWER

Products

Position	Product
NIA	316418900 Frigidaire Oven Screw
NIA	316021109 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
NI	5303013272 Frigidaire Oven Nut
2A	807192402 Frigidaire Oven Panel
2B	WCI 807193402
2	WCI 139076801
3A	139014401 Frigidaire Oven Trim
4	807278103 Frigidaire Oven Panel
6	139083101 Frigidaire Shield
7A	807193501 Frigidaire Insulation
7	318372017 Frigidaire Insulation
8	WCI 139085800
9	139014510 Frigidaire Liner
10	SCREW-OVEN DOOR, WASHER HEAD, 10-24 X 1.81
11	PAN-BROILER
12	INSERT-BROILER PAN
13	5304504223 Frigidaire Door Assembly
16	139085900 Frigidaire Oven Glass
17	139085701 Frigidaire Spacer
23	316575947 Frigidaire Oven Hinge Assembly
29	139023400 Frigidaire Oven Spacer
30A	808664402 Frigidaire Hinge
30	WCI 808664401
31	WCI 808721501
35	5304504568 Frigidaire Drawer Assembly
37A	3203723 Frigidaire Oven Rail
37	3203722 Frigidaire Oven Rail
39	WCI 808714302
40	318242702 Frigidaire Oven Bracket Assembly
41	318370602 Frigidaire Oven Bracket
42	318382302 Frigidaire Bracket
52	139023801 Frigidaire Trim
56	5303324184 Frigidaire Wall Oven Range Screw
56A	5300803416 Frigidaire Dishwasher Screw
60	5303292012 Frigidaire Oven Screw
64	318165800 Frigidaire Oven Door Glass Spacer with Screw
135	318147413 Frigidaire Oven Bumper
