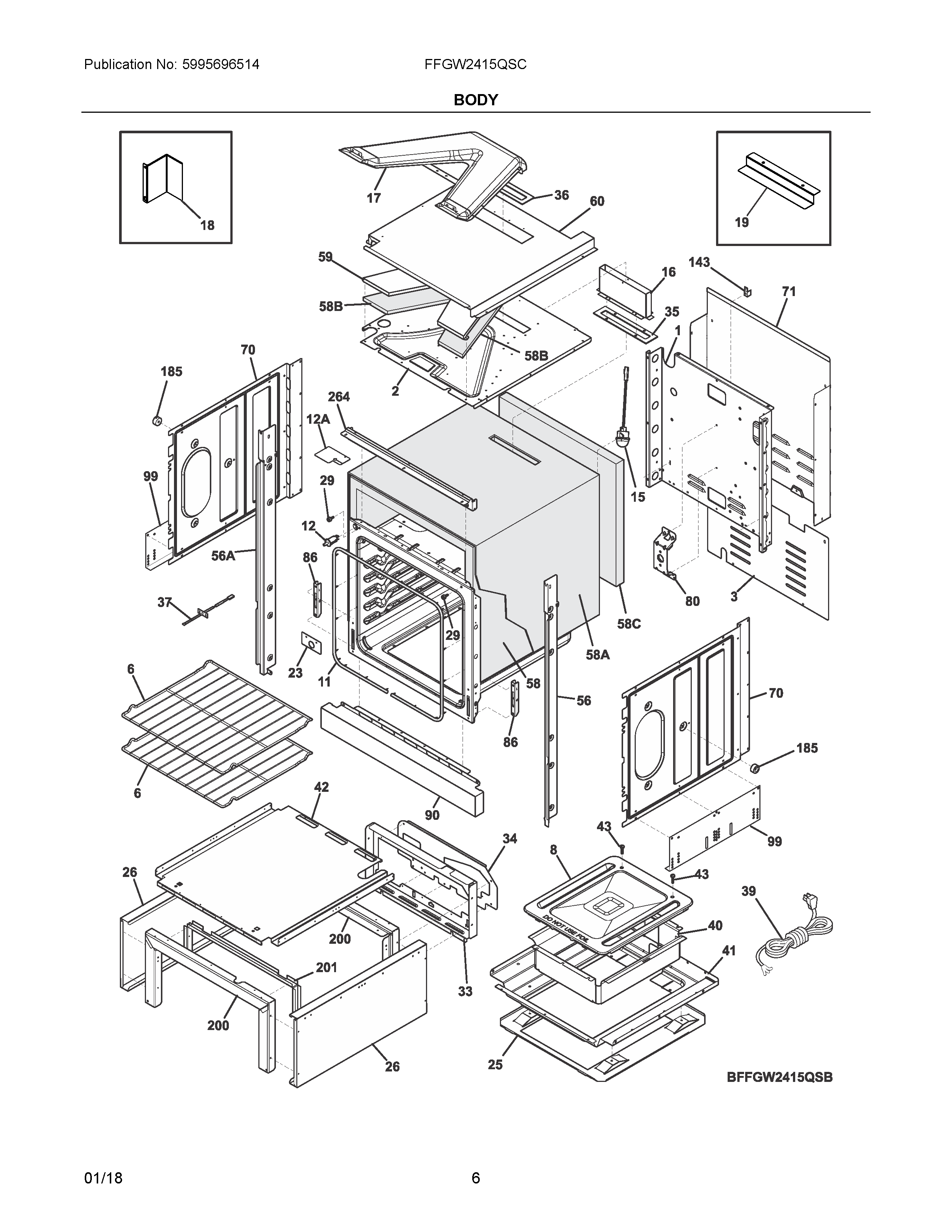

FFGW2415QSC 04 – BODY

FFGW2415QSC 04 – BODY

Written by

in

FFGW2415QSC 04 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI5304470882 Frigidaire Oven Screw
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
NIA807597603 Frigidaire Oven Screw
NIA318165800 Frigidaire Oven Door Glass Spacer with Screw
NIA316418900 Frigidaire Oven Screw
NIAWCI 318579001
NIA5303289910 Frigidaire Oven Screw
NIB316001017 Frigidaire Screw
NIAA5303324184 Frigidaire Wall Oven Range Screw
NI5304498103 Frigidaire Harness
NI316021109 Frigidaire Oven Screw
1WCI 139029600
2SHIELD, INSULATION, TOP
3807193201 Frigidaire Panel
6139012300 Frigidaire Oven Rack
8139076702 Frigidaire Cover Assembly
11807108501 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
12A5304504232 Frigidaire Oven Shield
155304528790 Frigidaire Lamp Assembly Appliance
16WCI 807246201
17FLUE ASSEMBLY, Y CHANNEL
18WCI 5304498078
19WCI 5304498109
23139004500 Frigidaire Cover
25WCI 808054701
26PANEL, DRAWER SIDE, (2)
29316517600 Frigidaire Oven Spacer
33FRAME, SERVICE PANEL, VALVE
34PANEL, VALVE MOUNTING
35WCI 807180901
36GASKET, FLUE BASE
37SENSOR
395304534000 Frigidaire Cord
40WCI 5304498071
41WCI 807844602
425304505654 Frigidaire Panel
43316282700 Frigidaire Oven Screw
56A139081802 Frigidaire Trim
56139081902 Frigidaire TRIM
58BWCI 807779801
58INSULATION, WRAPPER, OVEN
58AINSULATION, WRAPPER
58CWCI 139028500
59WCI 807780501
60WCI 807780601
70139000601 Frigidaire Oven Shield
71139029000 Frigidaire SHIELD
80139021101 Frigidaire Bracket Assembly
86318561100 Frigidaire Receptacle
90139905004 Frigidaire Oven Trim
99318284201 Frigidaire PANEL
143318172904 Frigidaire Bracket
185318531800 Frigidaire Oven Spacer
200WCI 5304498076
201WCI 5304498099
264139086101 Frigidaire TRIM
