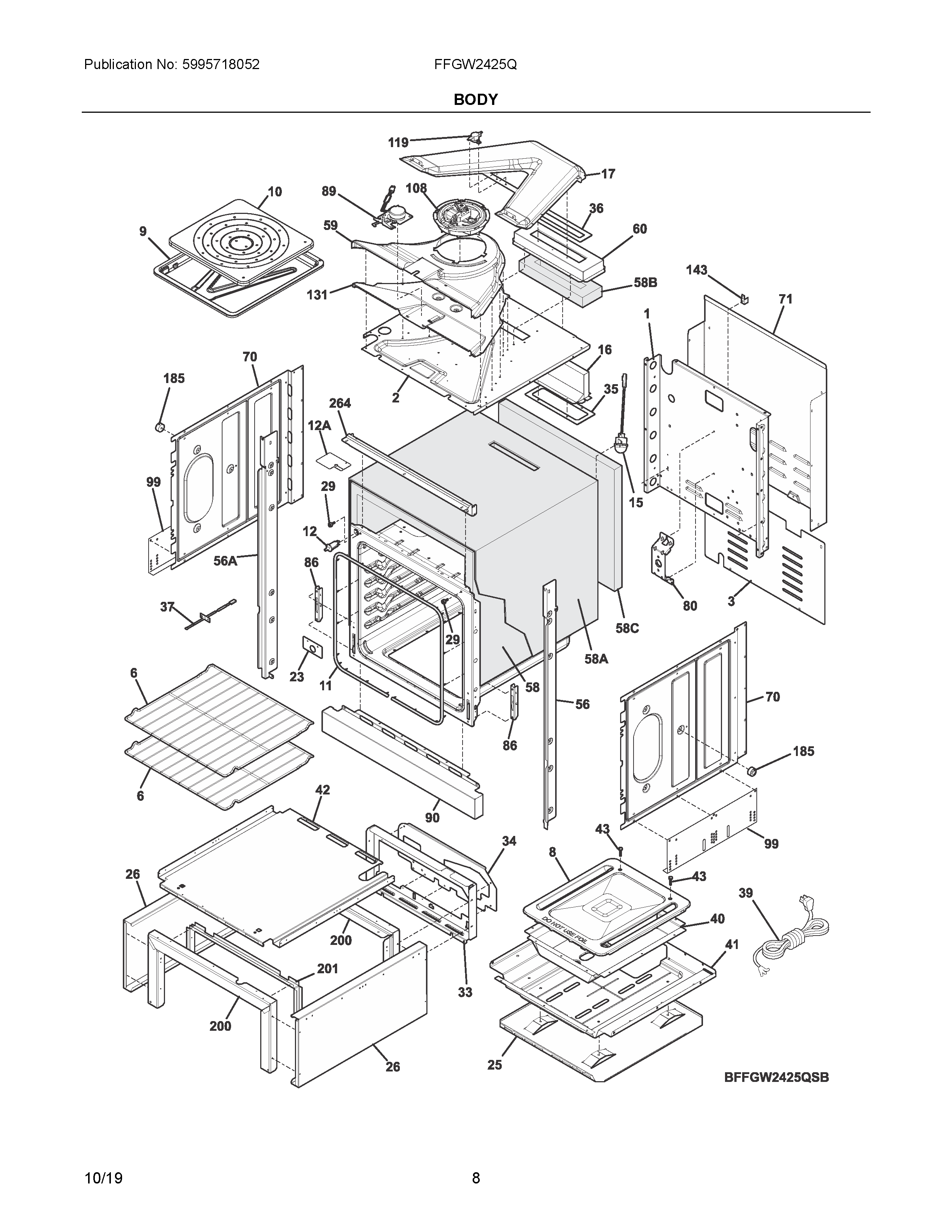

FFGW2425QBC 04 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI5304470882 Frigidaire Oven Screw
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
NIA807597603 Frigidaire Oven Screw
NI318165800 Frigidaire Oven Door Glass Spacer with Screw
NIA316418900 Frigidaire Oven Screw
NIAWCI 318579001
NIWCI 5304506293
NI316021109 Frigidaire Oven Screw
NIA316001017 Frigidaire Screw
NIA5303289910 Frigidaire Oven Screw
NIAA5303324184 Frigidaire Wall Oven Range Screw
1WCI 139029600
2SHIELD, INSULATION, TOP
3807193201 Frigidaire Panel
6139012300 Frigidaire Oven Rack
8139076702 Frigidaire Cover Assembly
9PAN-BROILER
10INSERT-BROILER PAN
11SEAL, OVEN DOOR
12808136601 Frigidaire Oven Switch
12A5304504232 Frigidaire Oven Shield
155304528790 Frigidaire Lamp Assembly Appliance
16FLUE ADAPTOR, ASSEMBLY
17FLUE ASSEMBLY, Y CHANNEL
23139004500 Frigidaire Cover
255304498068 Frigidaire Shield
26PANEL, DRAWER SIDE, (2)
29316517600 Frigidaire Oven Spacer
33FRAME, SERVICE PANEL, VALVE
34PANEL, VALVE MOUNTING
35GASKET, FLUE ADAPTOR
36GASKET, FLUE BASE
37SENSOR
395304534000 Frigidaire Cord
40807844501 Frigidaire Box
41807844601 Frigidaire Bracket
425304505654 Frigidaire Panel
43316282700 Frigidaire Oven Screw
56139081902 Frigidaire TRIM
56A139081802 Frigidaire Trim
58AINSULATION, WRAPPER
58BINSULATION, FLUE ADAPTOR
58INSULATION, WRAPPER, OVEN
58CWCI 139028500
59139078002 Frigidaire Oven Duct
60SHIELD, FLUE INSULATION
70139000601 Frigidaire Oven Shield
71139029000 Frigidaire SHIELD
80139021101 Frigidaire Bracket Assembly
86318561100 Frigidaire Receptacle
89139021302 Frigidaire Oven Motor
90139905002 Frigidaire Oven Trim
99318284201 Frigidaire PANEL
108807123002 Frigidaire Oven Motor Assembly Range/Wall
1195304504257 Frigidaire Oven Switch Assembly
131139078102 Frigidaire Oven Duct
143318172904 Frigidaire Bracket
185318531800 Frigidaire Oven Spacer
200WCI 5304498076
201WCI 5304498099
264139086101 Frigidaire TRIM
