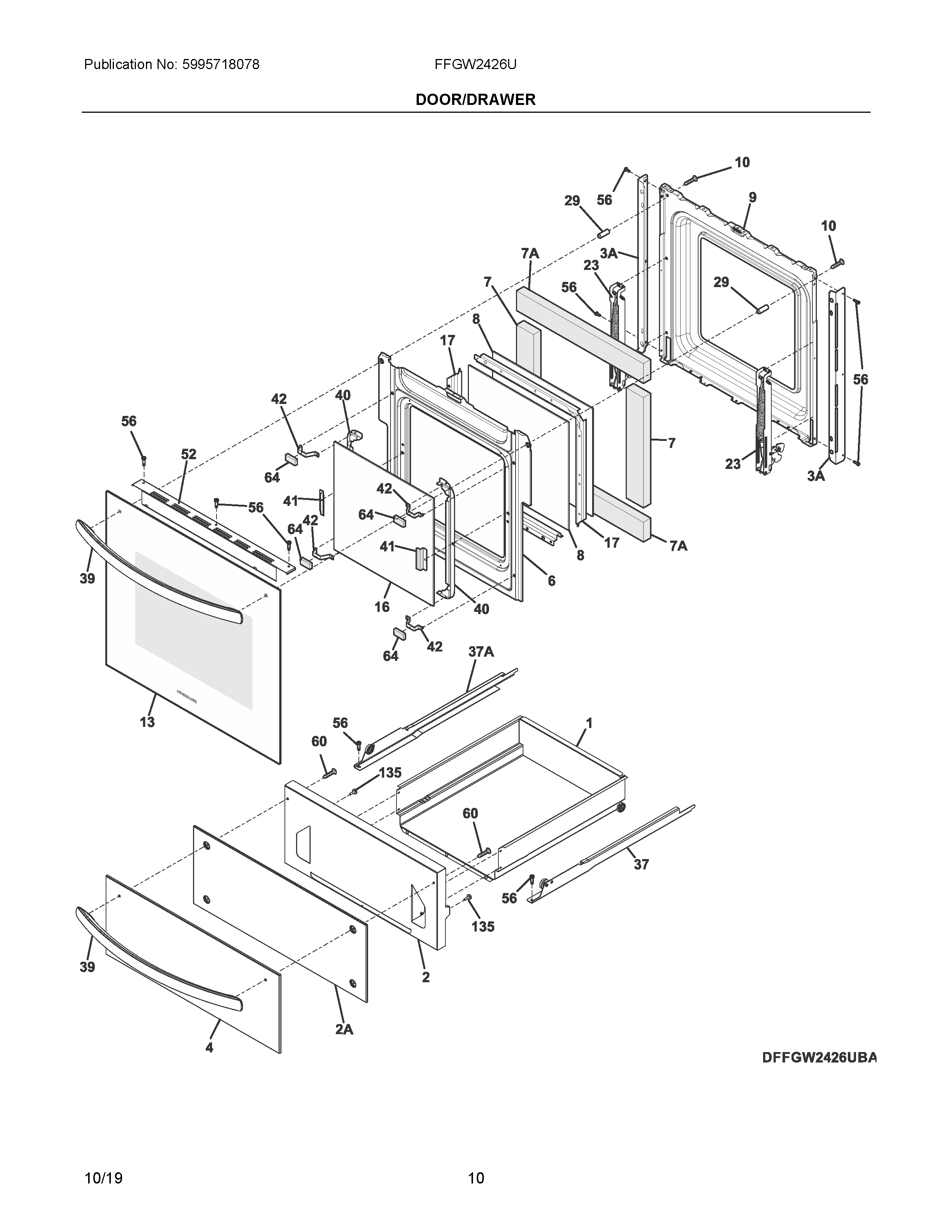

FFGW2426UBA 05 – DOOR/DRAWER

Products

Position	Product
NI	316021109 Frigidaire Oven Screw
NIA	316418900 Frigidaire Oven Screw
1	WCI 5304508514
2A	807192402 Frigidaire Oven Panel
2	5304504259 Frigidaire Liner
3A	139014401 Frigidaire Oven Trim
4	807278103 Frigidaire Oven Panel
6	139083101 Frigidaire Shield
7	318372017 Frigidaire Insulation
7A	807193501 Frigidaire Insulation
8	WCI 139085800
9	139014510 Frigidaire Liner
10	SCREW, 10-14 X 1.920", HANDLE MTG.
13	DOOR ASSEMBLY, OUTER, STEEL/GLASS, BLACK
16	139085900 Frigidaire Oven Glass
17	139085701 Frigidaire Spacer
23	316575952 Frigidaire Hinge
29	139023400 Frigidaire Oven Spacer
37A	3203723 Frigidaire Oven Rail
37	3203722 Frigidaire Oven Rail
39	5304513071 Frigidaire Oven Handle
40	318242702 Frigidaire Oven Bracket Assembly
41	318370602 Frigidaire Oven Bracket
42	318382302 Frigidaire Bracket
52	139023801 Frigidaire Trim
56	5303324184 Frigidaire Wall Oven Range Screw
60	5304517503 Frigidaire Screw
64	318165800 Frigidaire Oven Door Glass Spacer with Screw
135	3131903 Frigidaire Door/Drawer Bumper
