FFGW2426UWB 04 – BODY
Written by
in

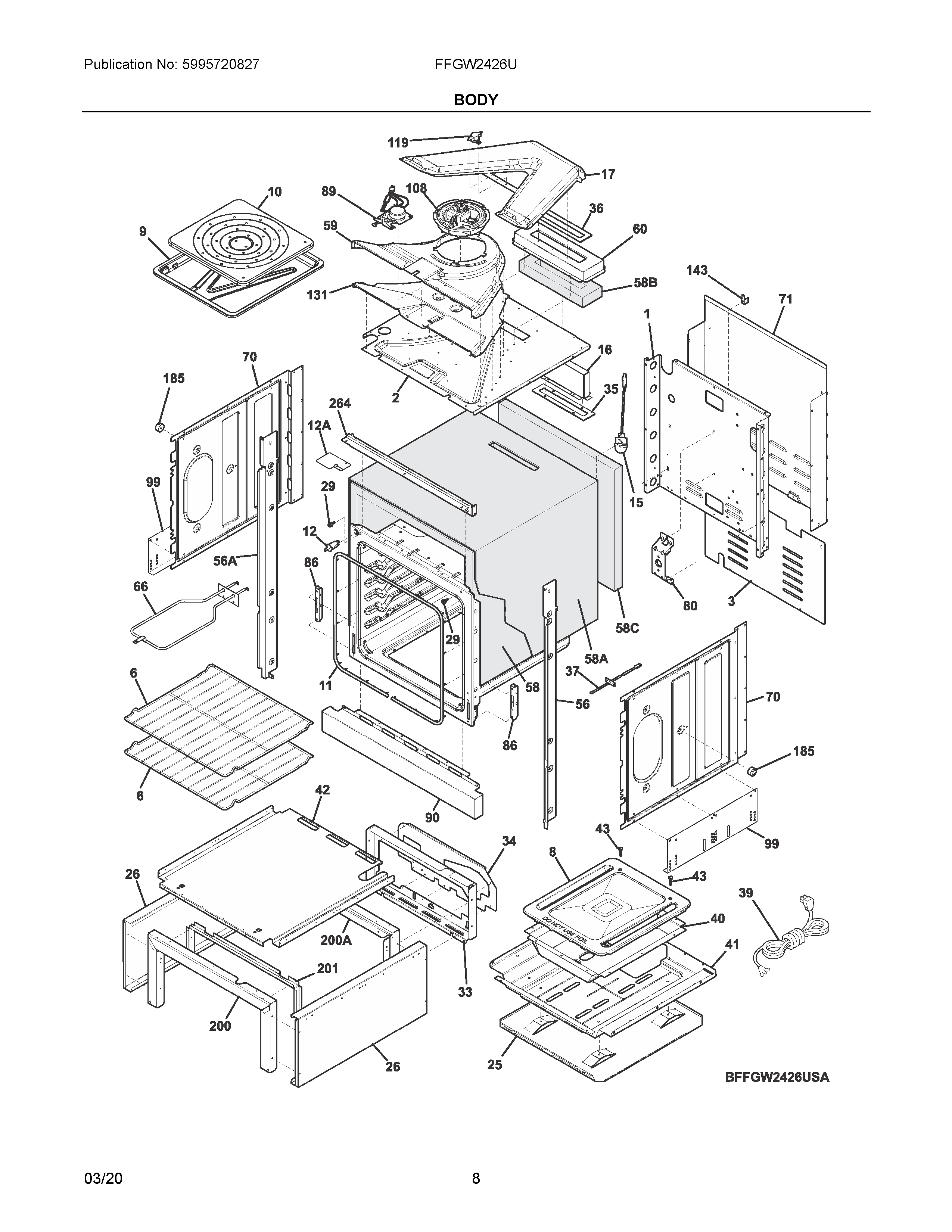

FFGW2426UWB 04 – BODY
Products
Position
Product
NI
316021105 Frigidaire Oven Screw
NIA
318946500 Frigidaire Oven Light Bulb Range/Wall
NI
318165800 Frigidaire Oven Door Glass Spacer with Screw
NIA
316418900 Frigidaire Oven Screw
NIA
WCI 318579001
NI
5304513708 Frigidaire Harness
NI
5304471184 Frigidaire Screw
NIA
316001017 Frigidaire Screw
NIAA
5303324184 Frigidaire Wall Oven Range Screw
NI
316021109 Frigidaire Oven Screw
NIA
5303289910 Frigidaire Oven Screw
NIA
807597603 Frigidaire Oven Screw
1
WCI 139029600
2
SHIELD, INSULATION, TOP
3
807193201 Frigidaire Panel
6
139012300 Frigidaire Oven Rack
8
139076702 Frigidaire Cover Assembly
9
PAN-BROILER
10
INSERT-BROILER PAN
11
SEAL, OVEN DOOR
12A
5304504232 Frigidaire Oven Shield
12
808136601 Frigidaire Oven Switch
15
5304528790 Frigidaire Lamp Assembly Appliance
16
WCI 807246201
17
FLUE ASSEMBLY, Y CHANNEL
25
5304498068 Frigidaire Shield
26
PANEL, DRAWER SIDE, (2)
29
316517600 Frigidaire Oven Spacer
33
FRAME, SERVICE PANEL, VALVE
34
PANEL, VALVE MOUNTING
35
WCI 807180901
36
GASKET, FLUE BASE
37
SENSOR
39
5304534000 Frigidaire Cord
40
807844501 Frigidaire Box
41
807844601 Frigidaire Bracket
42
5304505654 Frigidaire Panel
43
316282700 Frigidaire Oven Screw
56
139081901 Frigidaire Trim
56A
139081801 Frigidaire TRIM
58
INSULATION, OVEN WRAPPER
58B
INSULATION, FLUE ADAPTOR
58C
WCI 139028500
59
139078002 Frigidaire Oven Duct
60
SHIELD, FLUE INSULATION
66
5304513074 Frigidaire Element
70
139000601 Frigidaire Oven Shield
71
139029000 Frigidaire SHIELD
80
139021101 Frigidaire Bracket Assembly
86
318561100 Frigidaire Receptacle
89
5304528836 Frigidaire Motor
90
139905001 Frigidaire Oven Trim
99
318284201 Frigidaire PANEL
108
807123002 Frigidaire Oven Motor Assembly Range/Wall
119
THERMOSTAT,SAFETY,125C
131
139078102 Frigidaire Oven Duct
143
318172904 Frigidaire Bracket
185
318531800 Frigidaire Oven Spacer
200
WCI 5304513041
200A
WCI 5304513042
201
WCI 5304498099
264
139086101 Frigidaire TRIM
←
