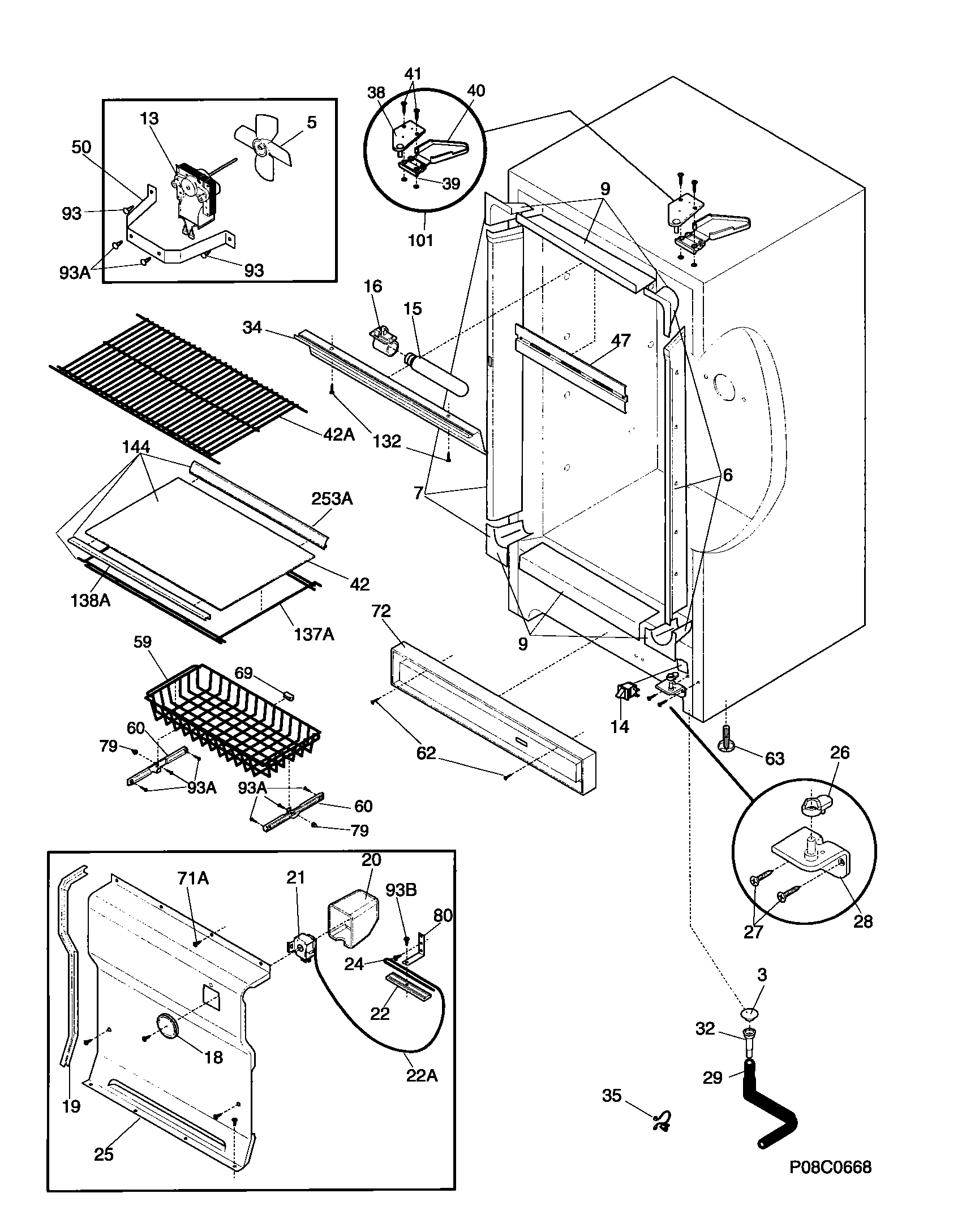

FFH17FC7CW0 05 – CABINET

FFH17FC7CW0 05 – CABINET

Written by

in

FFH17FC7CW0 05 – CABINET

Products

PositionProduct
NIWCI 09948773
NI216502400 Frigidaire Refrigerator Grommet Unit
NIWCI 216910401
3216503100 Frigidaire Refrigerator Screen-Drain
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 216604200
7WCI 216603700
9WCI 216603300
135304436055 Frigidaire Refrigerator Fan Motor Kit
14216822900 Frigidaire Refrigerator Switch
155304517886 Frigidaire Refrigerator Light
16297139501 Frigidaire Refrigerator Socket
18216707200 Frigidaire Refrigerator Cold Control Knob
19WCI 216204900
20WCI 216230300
215304513033 Frigidaire Refrigerator Temperature Control
22ATUBE
22CLAMP, CAP TUBE, COLD CONTROL
24SCREW, CLAMP, TRUSS HD CR, CONTROL
25WCI 216820200
26WCI 216503300
27154518001 Frigidaire Refrigerator Screw
28WCI 216247400
295304512272 Frigidaire Hose Drain
325304511843 Frigidaire Refrigerator Sleeve
34WCI 216816216
35297315800 Frigidaire Refrigerator Clip
38HINGE-UPPER
39WCI 5303294372
40297164400 Frigidaire Refrigerator Hinge Cover
41241710601 Frigidaire Refrigerator Screw
42AWCI 216458200
42WCI 216781700
47297192903 Frigidaire Refrigerator Baffle
50WCI 216394000
59WCI 216372800
60297013500 Frigidaire Refrigerator Slide
62131420300 Frigidaire Screw
63216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
695305878546 Frigidaire Refrigerator Bumper-Basket
71A134178901 Frigidaire Screw
72WCI 216294400
79301036 Frigidaire Refrigerator Insert Nut
80WCI 06594601
93216858001 Frigidaire Refrigerator Screw
93B216036601 Frigidaire Refrigerator Screw
93A216629601 Frigidaire Refrigerator Screw
101KIT-TOP HINGE
132WCI 5303283898
137WCI 216781600
138WCI 216492200
144Shelf-assy,fixed,glass ,complete
253WCI 216492300
