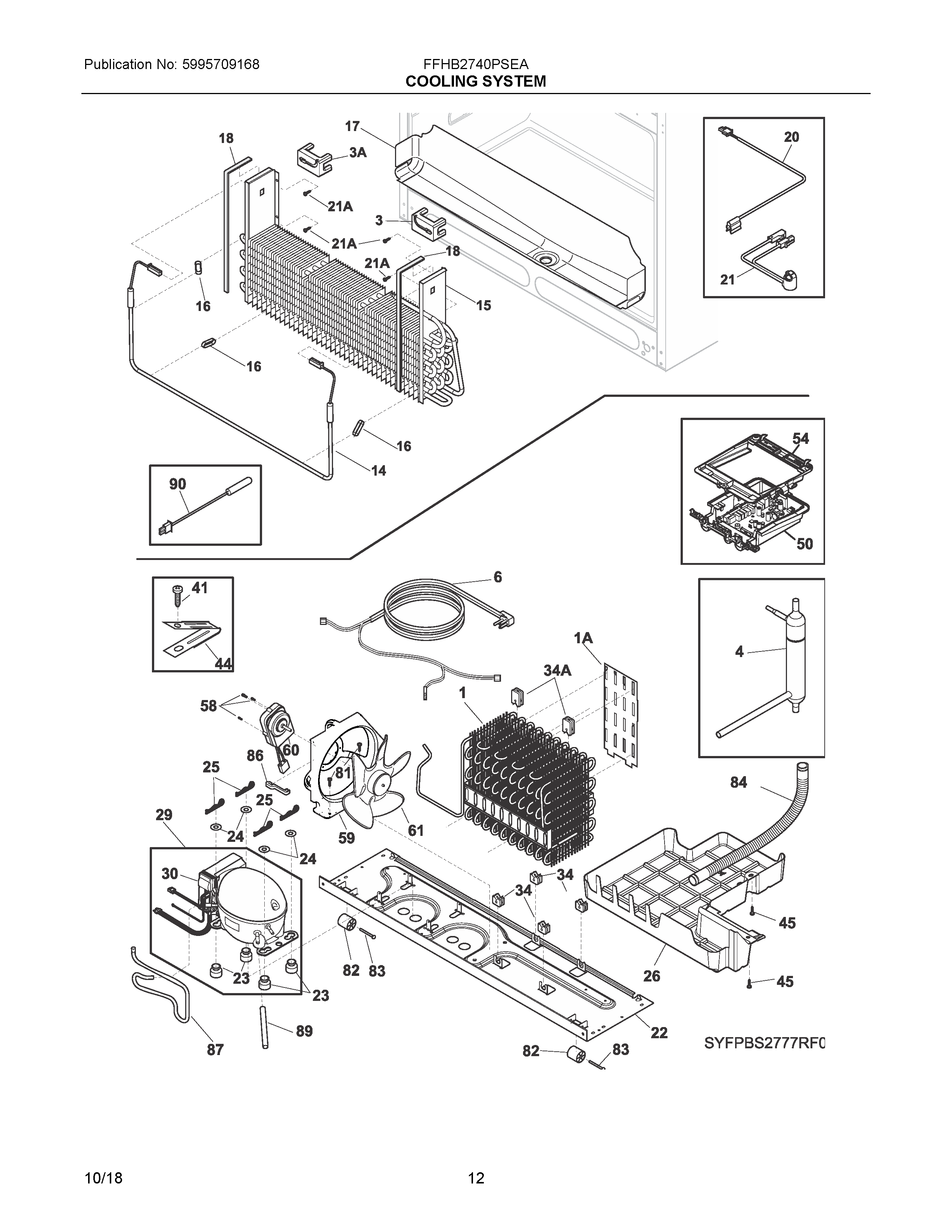

FFHB2740PSEA 06 – COOLING SYSTEM

FFHB2740PSEA 06 – COOLING SYSTEM

Written by

in

FFHB2740PSEA 06 – COOLING SYSTEM

Products

Position	Product
NIA	218252201 Frigidaire Refrigerator Screw
NIA	242036801 Frigidaire Refrigerator Plastic Clip
NIA	240346701 Frigidaire Refrigerator Foam Seal Tape
NIA	241842301 Frigidaire Refrigerator Thermistor Cap
NI	5303918445 Frigidaire Refrigerator Heat Exchanger
NIA	808165201 Frigidaire Refrigerator Harness
NI	241510904 Frigidaire Refrigerator Dispenser Harness
NI	218709101 Frigidaire Refrigerator Handle Mounting Screw
1	241862903 Frigidaire Refrigerator Condenser
1A	241987301 Frigidaire Refrigerator Deflector-Air
3A	241838402 Frigidaire Refrigerator Block-Evaporator Coil
3	241838401 Frigidaire Refrigerator Block-Evaporator Coil
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	241516904 Frigidaire Refrigerator Service Cord
14	5303918410 Frigidaire Refrigerator Defrost Heater Kit
15	5303918569 Frigidaire Refrigerator Evaporator Kit
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	241791201 Frigidaire Refrigerator Trough-Drain
18	241860101 Frigidaire Refrigerator Gasket
20	808137001 Frigidaire Refrigerator Thermistor
21	5304521781 Frigidaire Refrigerator Thermostat
21A	218362501 Frigidaire Refrigerator Screw
22	241602112 Frigidaire Refrigerator Base Compressor
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	241812301 Frigidaire Refrigerator Compressor Mount Washer
25	242037702 Frigidaire Refrigerator Spring Clip
26	241920609 Frigidaire PAN-DEFROST SXS SD
29	241706201 Frigidaire Refrigerator Compressor
30	241577505 Frigidaire Refrigerator Inverter
34	241929901 Frigidaire GROMMET-COND MTG
34A	241929902 Frigidaire Condenser Mounting Grommet
41	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
44	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45	5304455650 Frigidaire Refrigerator Screw
50	5304508721 Frigidaire Refrigerator Main Power Board
54	807854301 Frigidaire Refrigerator Support
58	240569202 Frigidaire Refrigerator Screw
59	241946106 Frigidaire Refrigerator Shroud-Cond Fan
60	MOTOR-CONDENSER FAN
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
81	240359403 Frigidaire Refrigerator Fan Shroud Screw
82	240335202 Frigidaire Refrigerator Roller
83	5304455655 Frigidaire Refrigerator Rivet
84	241830904 Frigidaire Refrigerator Drain Tube
86	240409302 Frigidaire Refrigerator Condenser Tube Spacer
87	TUBE-CONNECTOR, SUCTION
89	WCI 215346900
90	240597220 Frigidaire Sensor
