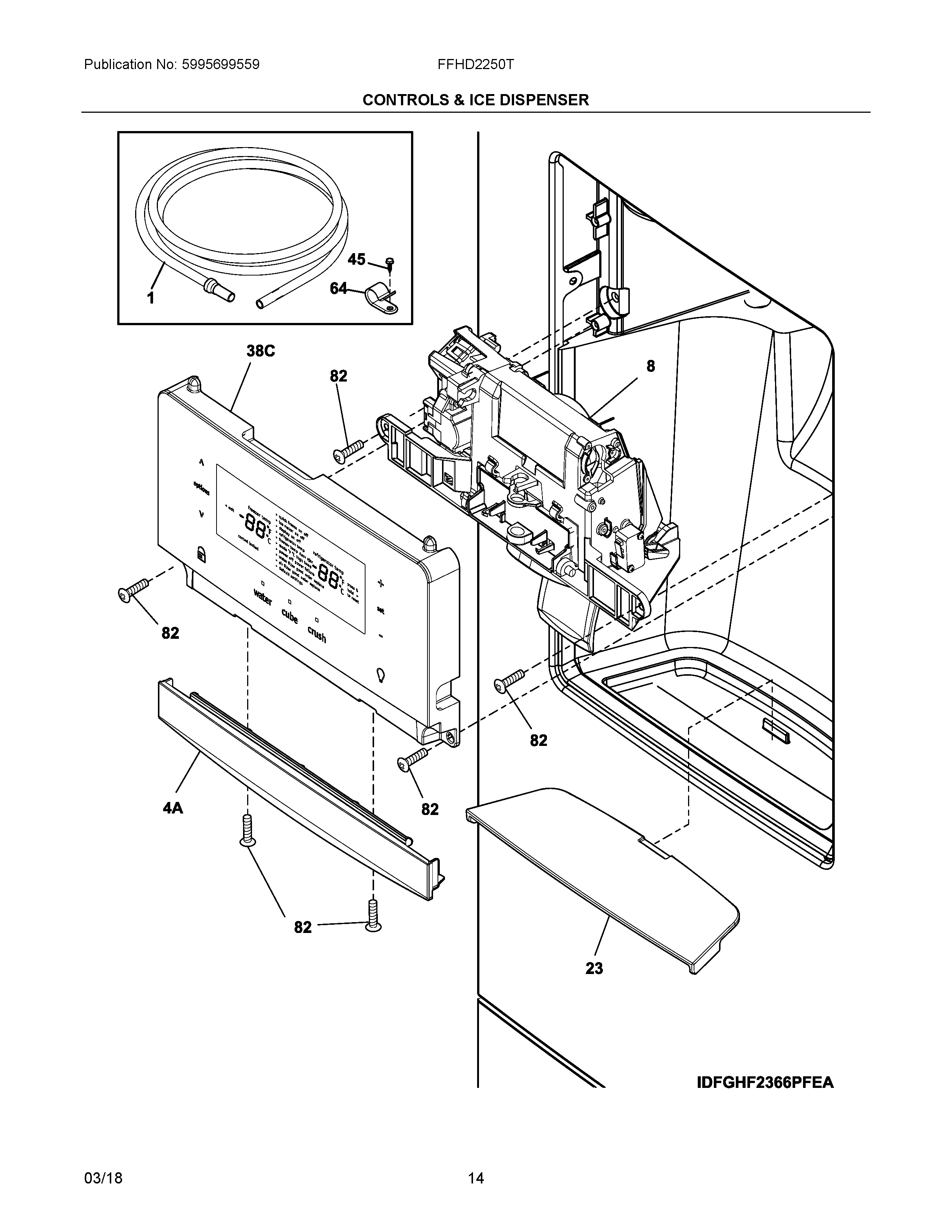

FFHD2250TD3 07 – CONTROLS & ICE DISPENSER

Products

Position	Product
NIC	241953902 Frigidaire Refrigerator Screw
NI	5304521784 Frigidaire Refrigerator Harness
NI	5303918596 Frigidaire Refrigerator Dispenser Heater Kit
NI	240451503 Frigidaire Refrigerator Screw
NIC	242200102 Frigidaire Refrigerator Clip
NIB	241806601 Frigidaire Refrigerator Water Connector
NIA	242220119 Frigidaire Refrigerator Water Tube
NI	241510904 Frigidaire Refrigerator Dispenser Harness
1	218976436 Frigidaire Refrigerator Water Inlet Tube
4A	242194302 Frigidaire TRIM
8	242270106 Frigidaire Refrigerator Module
23	SUMP, DISPENSER, GREY
38C	5304512332 Frigidaire Refrigerator Control Assembly
45	5304455650 Frigidaire Refrigerator Screw
64	240396801 Frigidaire Refrigerator Tube Clamp
