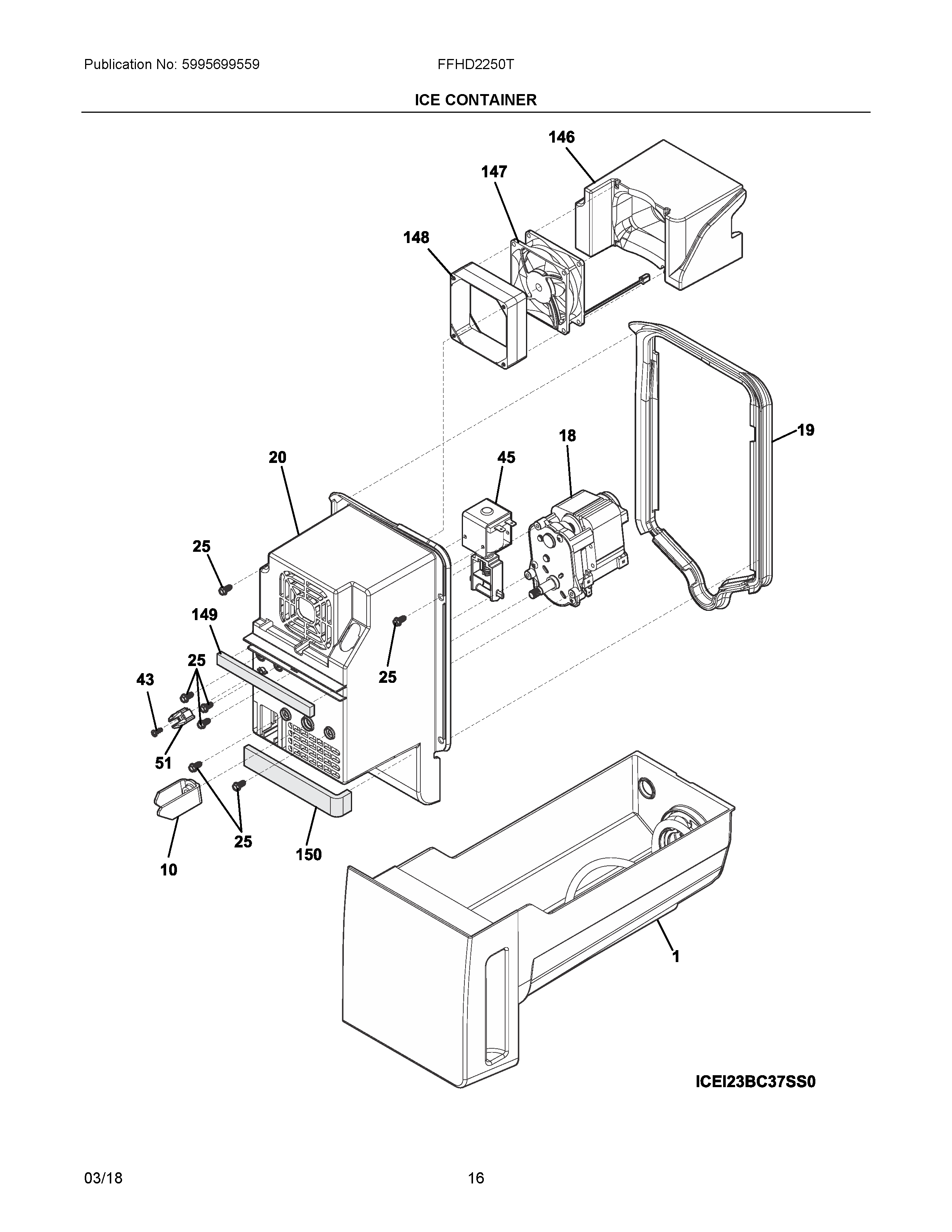

FFHD2250TS3 08 – ICE CONTAINER

Products

Position	Product
NIA	5304521762 Frigidaire Refrigerator Electrical Harness
1	242100106 Frigidaire Refrigerator Ice Container Assembly
10	241829001 Frigidaire Refrigerator Bar Drive
18	241816602 Frigidaire Refrigerator Motor-AUGER
19	5304508066 Frigidaire Refrigerator Gasket
20	5304508036 Frigidaire Refrigerator Housing
25	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
43	241641502 Frigidaire Refrigerator Screw
45	241675704 Frigidaire Refrigerator Solenoid Assembly
51	242095501 Frigidaire Refrigerator Anti-Twist Buck Pin
146	5304508072 Frigidaire Refrigerator Support
147	5304493604 Frigidaire Refrigerator Gasket & Fan Kit
148	5304508063 Frigidaire Refrigerator Grommet
149	GASKET
150	GASKET
