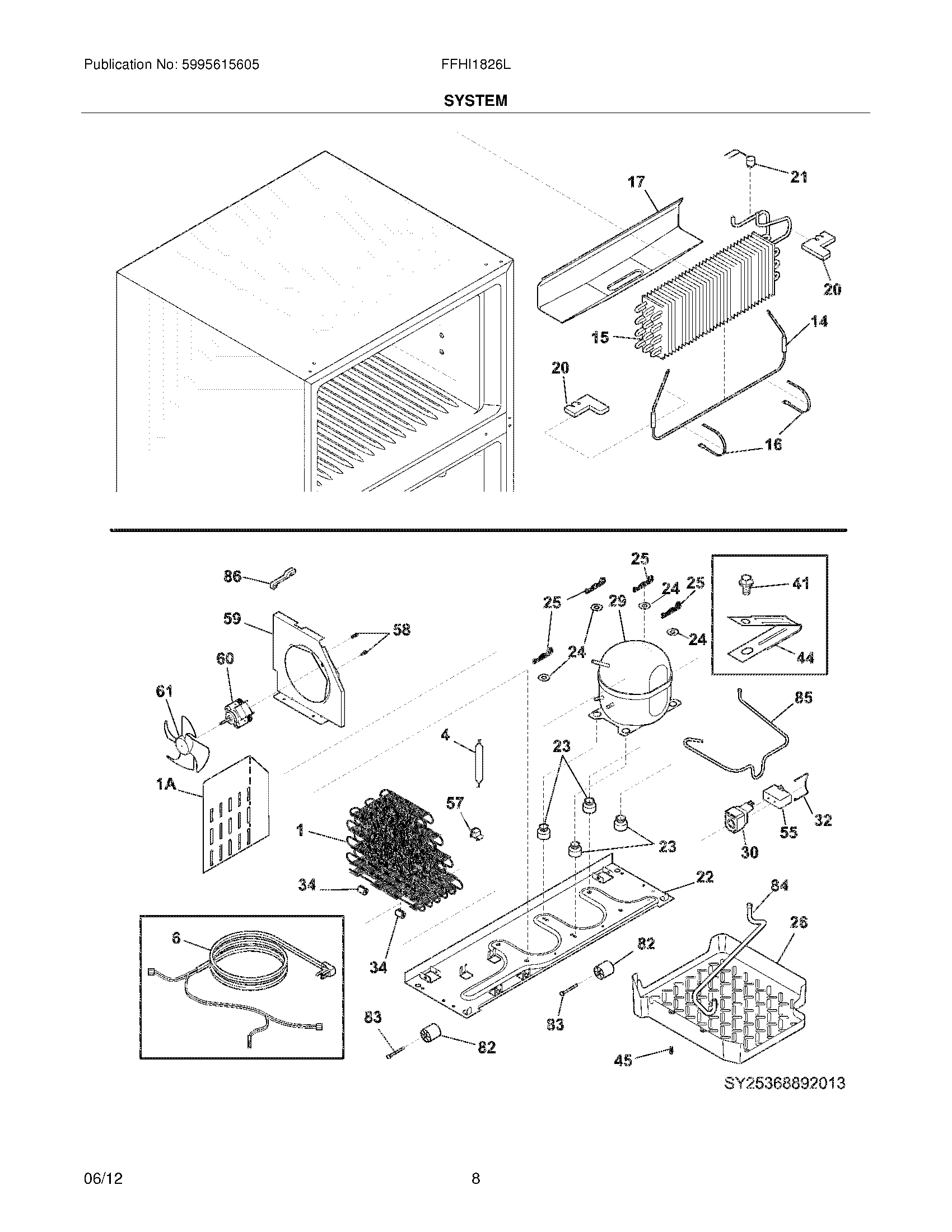

FFHI1826LB7 09 – SYSTEM

FFHI1826LB7 09 – SYSTEM

Written by

in

FFHI1826LB7 09 – SYSTEM

Products

PositionProduct
NI5303918263 Frigidaire Refrigerator Primary Heat Exchanger Kit (O/S1)
NI240346701 Frigidaire Refrigerator Foam Seal Tape
NIWCI 5303918222
NI240359403 Frigidaire Refrigerator Fan Shroud Screw
NI240388701 Frigidaire Refrigerator Wiring Harness
NI5308000039 Frigidaire Refrigerator Screw
NI240396801 Frigidaire Refrigerator Tube Clamp
NI218252201 Frigidaire Refrigerator Screw
1A242213901 Frigidaire Refrigerator Deflector
1WCI 241785402
45303305677 Frigidaire Replacement Filter Dryer Filters
65304521786 Frigidaire Refrigerator Wiring Harness
14242044008 Frigidaire Defrost Heater
15242067214 Frigidaire Refrigerator S/A Pur-Evaporator
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17241801301 Frigidaire Refrigerator Drain Trough
20241551902 Frigidaire Refrigerator Insulation Block
215303918202 Frigidaire Refrigerator Defrost Thermostat
22241665606 Frigidaire Refrigerator Compressor Base
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24241812301 Frigidaire Refrigerator Compressor Mount Washer
25242037701 Frigidaire Refrigerator Clip-Compressor Mtg
26241920605 Frigidaire Refrigerator Defrost Pan
295304507765 Frigidaire Refrigerator Compressor Kit
30WCI 241707720
325304497418 Frigidaire Refrigerator Clip
34240405201 Frigidaire Refrigerator Grommet
41240433204 Frigidaire Refrigerator Screw
445304456288 Frigidaire Refrigerator Clamp
45241500305 Frigidaire Refrigerator Screw
55297286803 Frigidaire Refrigerator Run Capacitor
57240542601 Frigidaire Clip-WIRING Harness
58240569202 Frigidaire Refrigerator Screw
59242050604 Frigidaire Refrigerator Shroud
60MOTOR-CONDENSER FAN
61241639502 Frigidaire Refrigerator Condenser Fan Blade
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
84240500801 Frigidaire Refrigerator P-1 Tube-Drain
85WCI 242014602
86240409302 Frigidaire Refrigerator Condenser Tube Spacer
