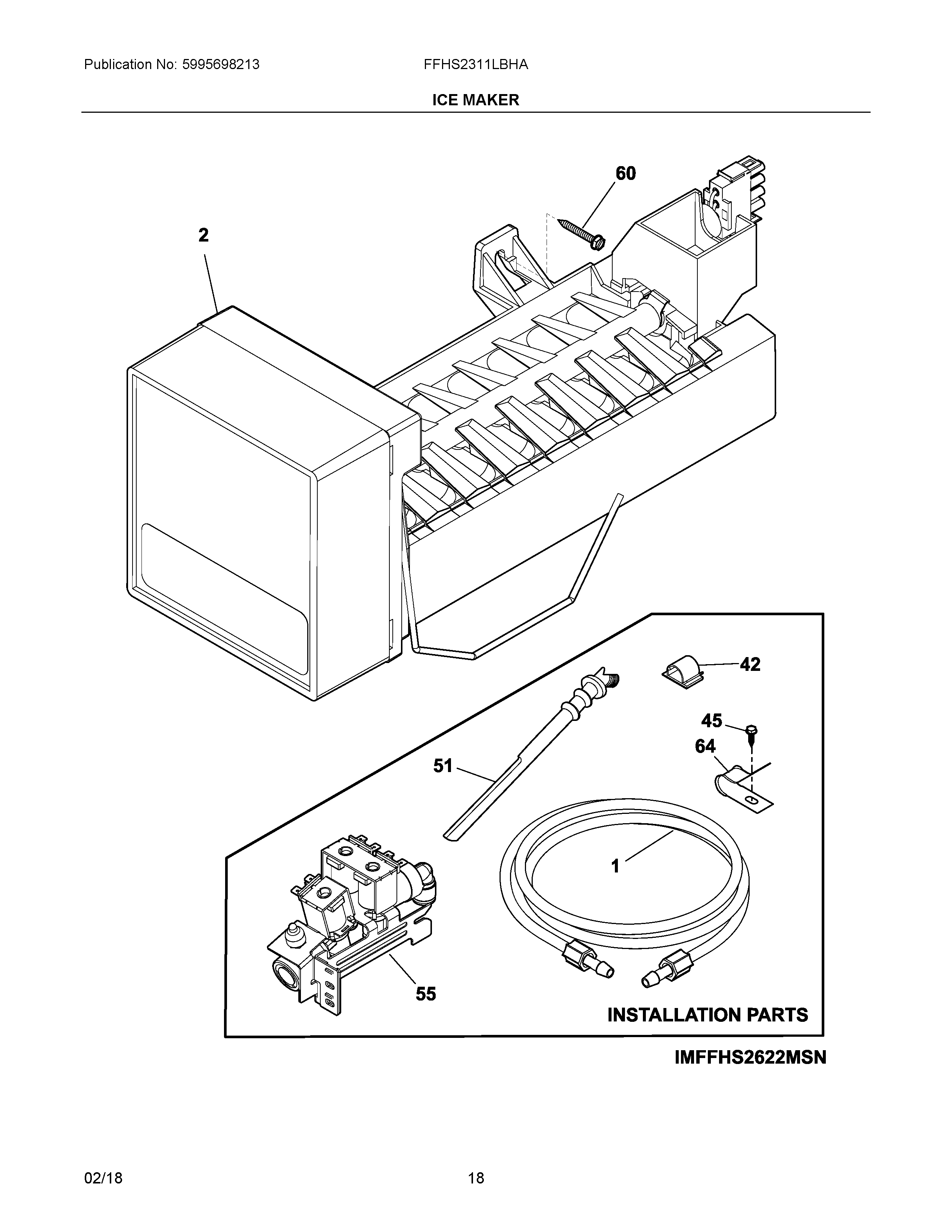

FFHS2311LBHA 10 – ICE MAKER

FFHS2311LBHA 10 – ICE MAKER

Written by

in

FFHS2311LBHA 10 – ICE MAKER

Products

PositionProduct
NI241806601 Frigidaire Refrigerator Water Connector
NIA218709101 Frigidaire Refrigerator Handle Mounting Screw
NIB240363602 Frigidaire Refrigerator Shoulder Screw
1B241850615 Frigidaire Ice Maker Fill Tube Assembly
1C242200102 Frigidaire Refrigerator Clip
1218976438 Frigidaire Refrigerator Tube
1A218976439 Frigidaire Refrigerator Water Inlet Tube
1D242220206 Frigidaire Refrigerator Water Inlet Tube
2241798231 Frigidaire Refrigerator Ice Maker Assembly
42218515401 Frigidaire Refrigerator Clip
45241500303 Frigidaire Refrigerator Screw
51241796405 Frigidaire Refrigerator Fill Water Tube
55242252702 Frigidaire Refrigerator Water Inlet Valve Triple Solenoid
605304455852 Frigidaire Refrigerator Screw
645304455846 Frigidaire Refrigerator Clamp
