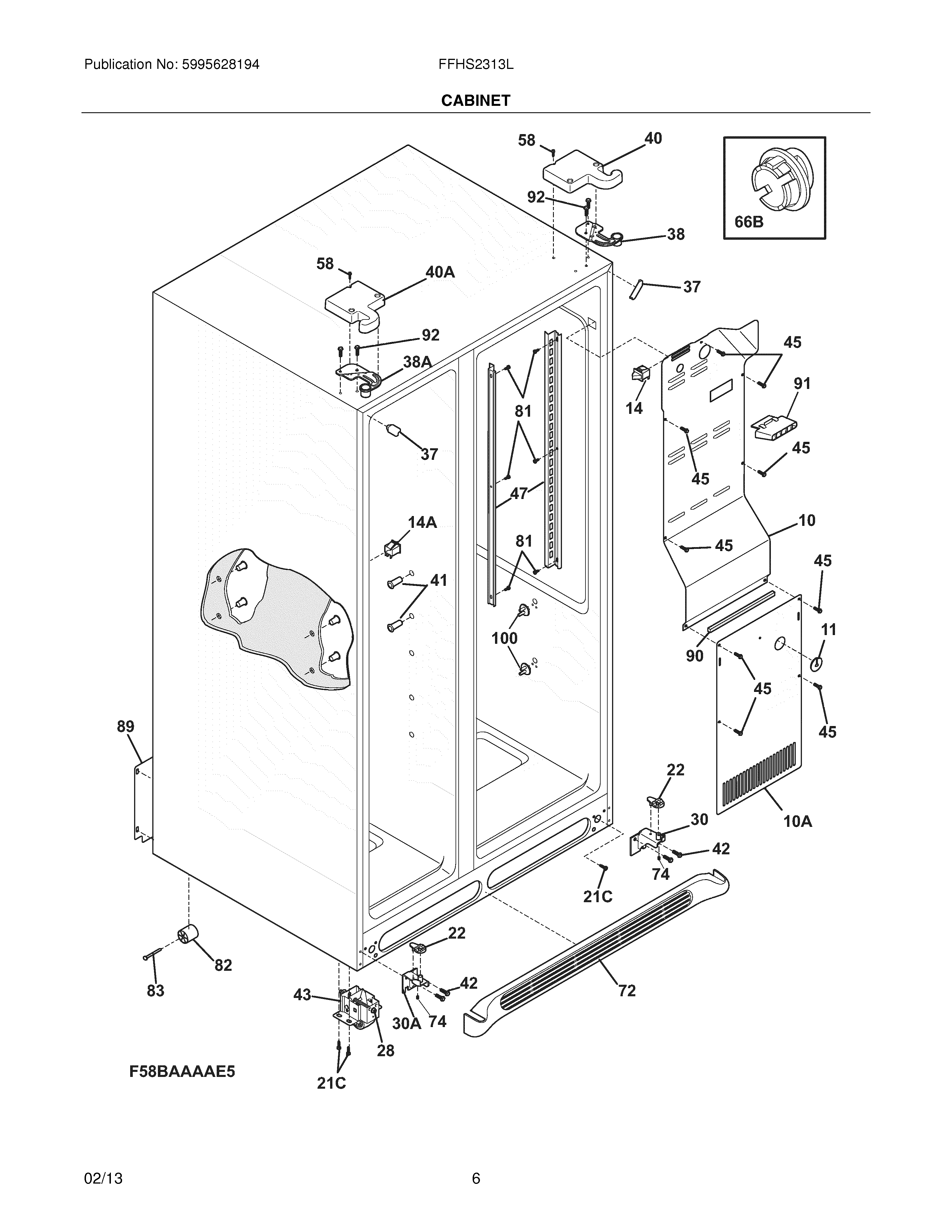

FFHS2313LE9 07 – CABINET

FFHS2313LE9 07 – CABINET

Written by

in

FFHS2313LE9 07 – CABINET

Products

Position	Product
NI	241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
NI	240396801 Frigidaire Refrigerator Tube Clamp
NI	5303321321 Frigidaire Refrigerator Black Touch-Up Paint
NI	240494001 Frigidaire Refrigerator Plug Button
10	240435911 Frigidaire Refrigerator Cover
10A	241719710 Frigidaire Refrigerator Cover-Evaporator
11	5303208309 Frigidaire Refrigerator Plug Hole
14	240505801 Frigidaire Light Switch
14A	241547902 Frigidaire Refrigerator Light Switch
21C	218252201 Frigidaire Refrigerator Screw
22	241917801 Frigidaire Refrigerator Closer Plate
30	241918001 Frigidaire Lower Door Hinge
30A	241918002 Frigidaire Refrigerator Lower Hinge
37	242161202 Frigidaire Refrigerator Trim-Cabinet Corner
38A	241761302 Frigidaire Refrigerator Bracket-Upper Hinge
38	241761301 Frigidaire Upper Bracket Hinge
40A	241946716 Frigidaire Refrigerator Upper Hinge Cover
40	241946715 Frigidaire Refrigerator Upper Hinge Cover
41	241550801 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
47	WCI 218659500
58	218781101 Frigidaire Handle Screw
66B	240518802 Frigidaire Refrigerator Push Pin
66B	WCI 240374301
72	241521603 Frigidaire Refrigerator Grill/Kickplate
74	218755402 Frigidaire Refrigerator Set Screw
81	5304455650 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
89	WCI 241733901
90	218249808 Frigidaire Refrigerator Seal-Coil Cover
91	240380101 Frigidaire Refrigerator Ice Maker Duct
92	241710601 Frigidaire Refrigerator Screw
100	241993001 Frigidaire Refrigerator Left Crisper Cover Support
100	CRISPER COVER SUPPORT
