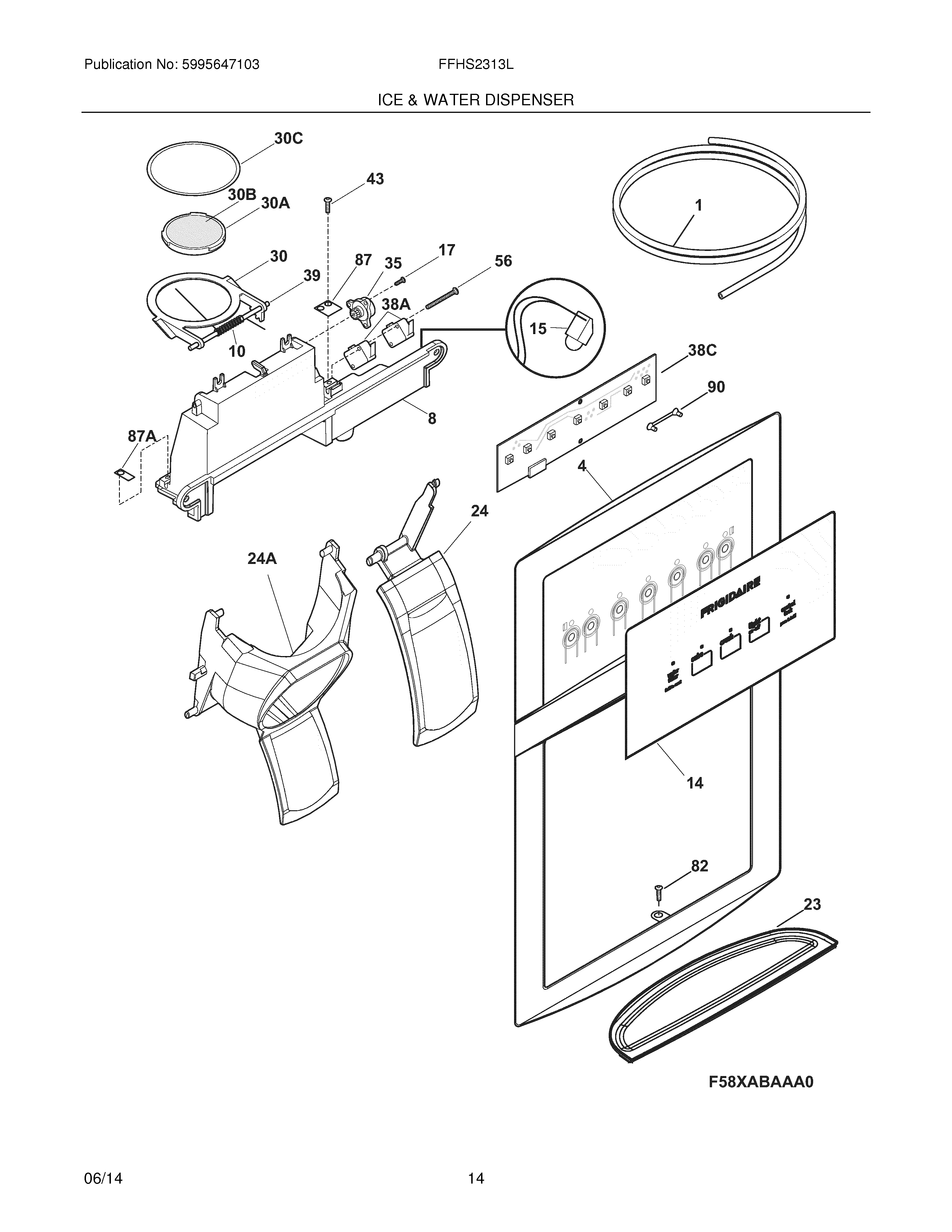

FFHS2313LPD 15 – ICE & WATER DISPENSER

Products

PositionProduct
NI5304521768 Frigidaire Refrigerator Harness
NI218976439 Frigidaire Refrigerator Water Inlet Tube
NI218976429 Frigidaire Refrigerator Tube
NI240561701 Frigidaire Refrigerator Seal
NI241850615 Frigidaire Ice Maker Fill Tube Assembly
NI218515403 Frigidaire Refrigerator Clip-Grille
1218976409 Frigidaire Refrigerator Water Tube
4241946811 Frigidaire Refrigerator Cover
8MODULE-DISPENSER
10241688901 Frigidaire Refrigerator Torsion Spring
14242083001 Frigidaire Refrigerator Module Cover Label
15242065203 Frigidaire Refrigerator Assembly Harness
17241679801 Frigidaire Screw
23241947001 Frigidaire Refrigerator Drip Tray
24AACTUATOR-ICE, WHITE
24ACTUATOR-WATER, WHITE
30C241688701 Frigidaire Refrigerator Door Seal
30A241688501 Frigidaire Refrigerator Door Center
30241688401 Frigidaire Ice Door Bracket
30B241688601 Frigidaire Refrigerator Door Insulation
35241689301 Frigidaire Refrigerator Rotary Damper
38A241689104 Frigidaire Refrigerator Switch-Micro
38C242053503 Frigidaire Refrigerator Control Board
38C241953902 Frigidaire Refrigerator Screw
39241688801 Frigidaire Refrigerator Pin-Hinge
43WCI 215296301
56241689201 Frigidaire Refrigerator Screw-Micro Switch
825304453707 Frigidaire Oven Screw
87A241688301 Frigidaire Refrigerator Bearing Plate
87241688302 Frigidaire Refrigerator Bearing Plate
90241732703 Frigidaire Refrigerator Light Pipe
