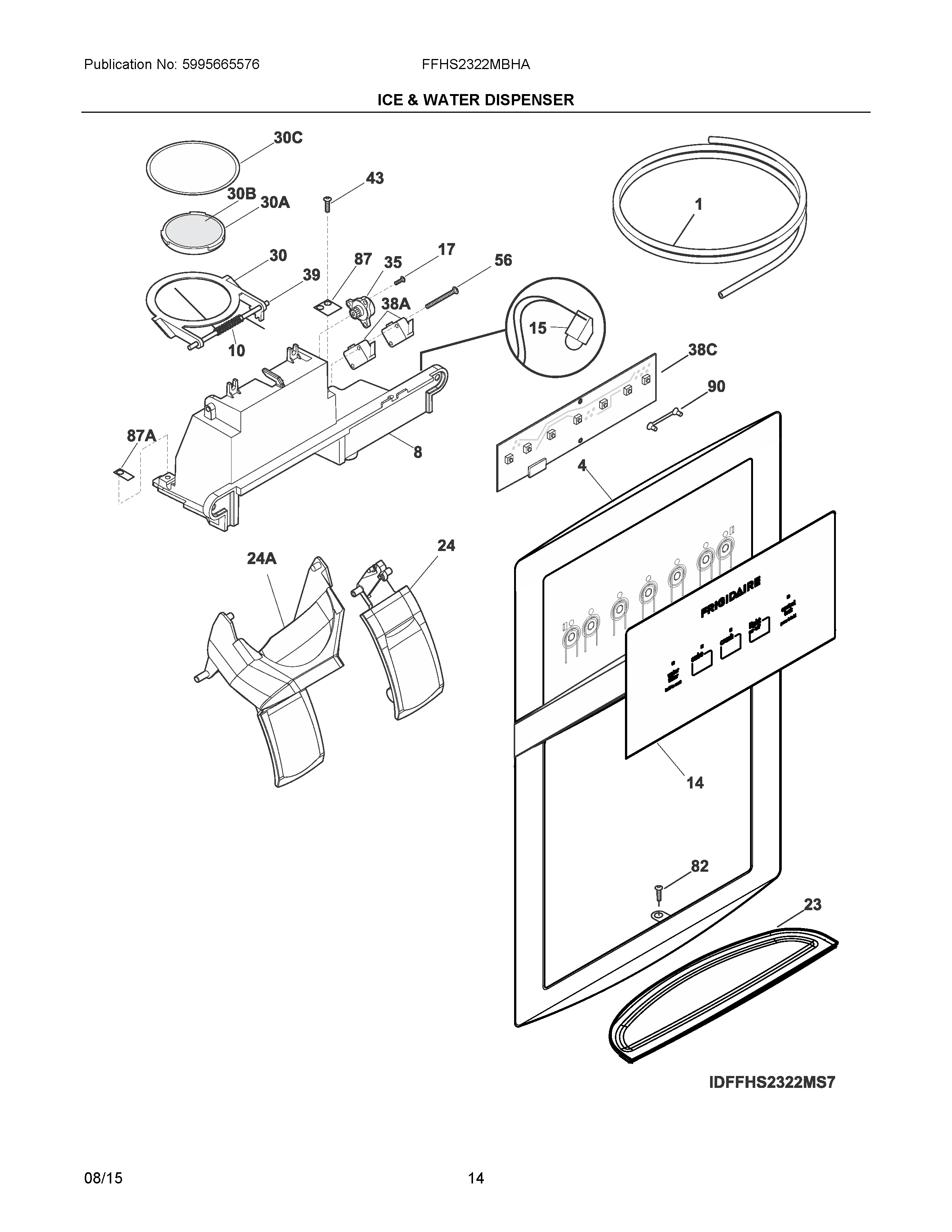

FFHS2322MBHA 08 – ICE & WATER DISPENSER

Products

Position	Product
NICA	241953902 Frigidaire Refrigerator Screw
NI	5304521768 Frigidaire Refrigerator Harness
NIE	242220206 Frigidaire Refrigerator Water Inlet Tube
NIA	218976439 Frigidaire Refrigerator Water Inlet Tube
NIB	218976440 Frigidaire Refrigerator Tubing
NI	218515403 Frigidaire Refrigerator Clip-Grille
NID	240561701 Frigidaire Refrigerator Seal
NIC	241850615 Frigidaire Ice Maker Fill Tube Assembly
1	218976438 Frigidaire Refrigerator Tube
4	808048105 Frigidaire Cover Assembly
8	MODULE-DISPENSER
10	241688901 Frigidaire Refrigerator Torsion Spring
14	242083003 Frigidaire Refrigerator Module Cover Label
15	242065203 Frigidaire Refrigerator Assembly Harness
17	241679801 Frigidaire Screw
23	241947003 Frigidaire Refrigerator Drip Tray
24A	242083503 Frigidaire Refrigerator Actuator
24	ACTUATOR-WATER, BLACK
30	241688401 Frigidaire Ice Door Bracket
30A	241688501 Frigidaire Refrigerator Door Center
30B	241688601 Frigidaire Refrigerator Door Insulation
30C	241688701 Frigidaire Refrigerator Door Seal
35	241689301 Frigidaire Refrigerator Rotary Damper
38C	242053503 Frigidaire Refrigerator Control Board
38A	241689104 Frigidaire Refrigerator Switch-Micro
39	241688801 Frigidaire Refrigerator Pin-Hinge
43	WCI 215296301
56	241689201 Frigidaire Refrigerator Screw-Micro Switch
82	5304453707 Frigidaire Oven Screw
87	241688302 Frigidaire Refrigerator Bearing Plate
87A	241688301 Frigidaire Refrigerator Bearing Plate
90	241732703 Frigidaire Refrigerator Light Pipe
