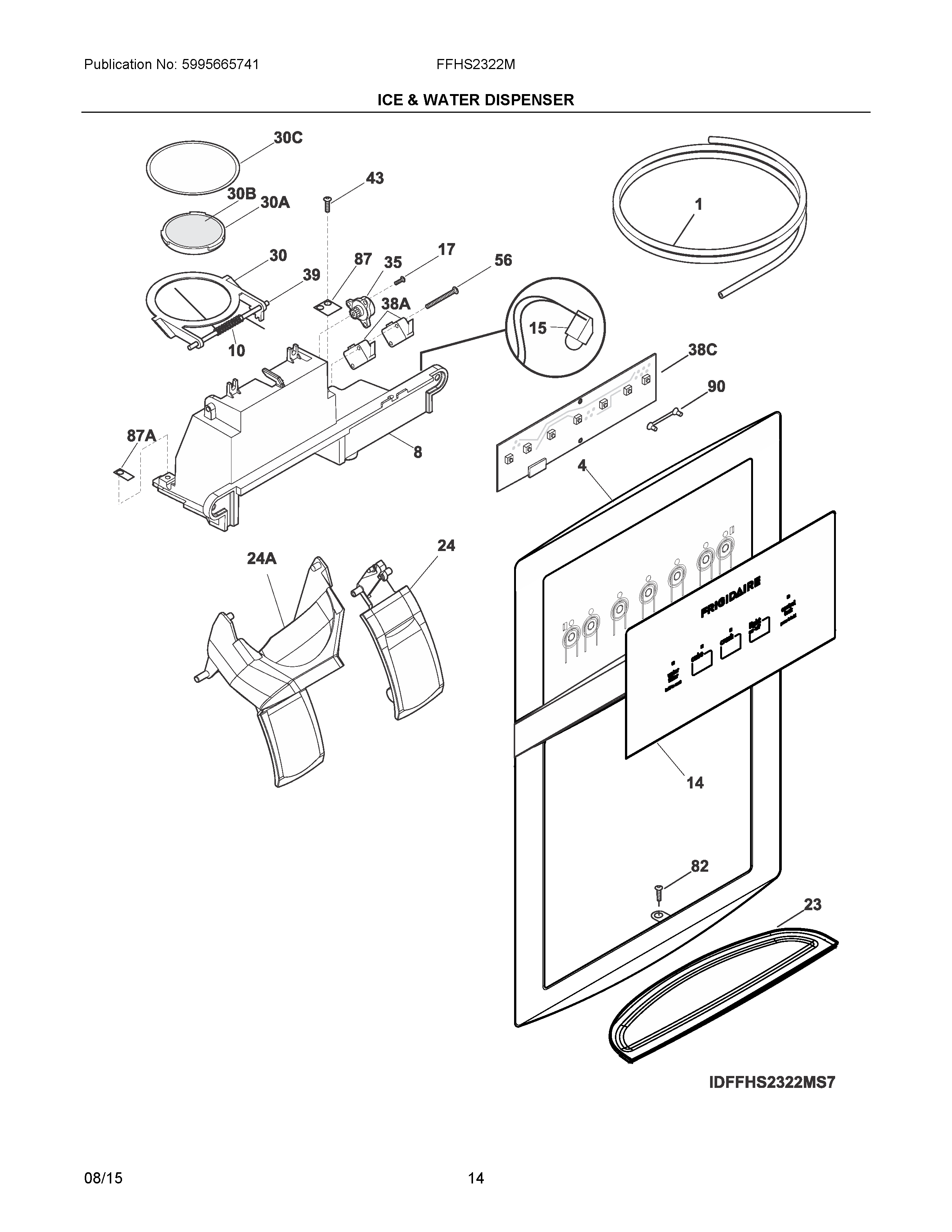

FFHS2322MSHA 08 – ICE & WATER DISPENSER

Products

PositionProduct
NICA241953902 Frigidaire Refrigerator Screw
NI5304521768 Frigidaire Refrigerator Harness
NIE242220206 Frigidaire Refrigerator Water Inlet Tube
NIA218976439 Frigidaire Refrigerator Water Inlet Tube
NIB218976440 Frigidaire Refrigerator Tubing
NI218515403 Frigidaire Refrigerator Clip-Grille
NID240561701 Frigidaire Refrigerator Seal
NIC241850615 Frigidaire Ice Maker Fill Tube Assembly
1218976438 Frigidaire Refrigerator Tube
4808048105 Frigidaire Cover Assembly
8MODULE-DISPENSER
10241688901 Frigidaire Refrigerator Torsion Spring
14242083003 Frigidaire Refrigerator Module Cover Label
15242065203 Frigidaire Refrigerator Assembly Harness
17241679801 Frigidaire Screw
23241947003 Frigidaire Refrigerator Drip Tray
24A242083503 Frigidaire Refrigerator Actuator
24ACTUATOR-WATER, BLACK
30241688401 Frigidaire Ice Door Bracket
30A241688501 Frigidaire Refrigerator Door Center
30B241688601 Frigidaire Refrigerator Door Insulation
30C241688701 Frigidaire Refrigerator Door Seal
35241689301 Frigidaire Refrigerator Rotary Damper
38C242053503 Frigidaire Refrigerator Control Board
38A241689104 Frigidaire Refrigerator Switch-Micro
39241688801 Frigidaire Refrigerator Pin-Hinge
43WCI 215296301
56241689201 Frigidaire Refrigerator Screw-Micro Switch
825304453707 Frigidaire Oven Screw
87241688302 Frigidaire Refrigerator Bearing Plate
87A241688301 Frigidaire Refrigerator Bearing Plate
90241732703 Frigidaire Refrigerator Light Pipe
