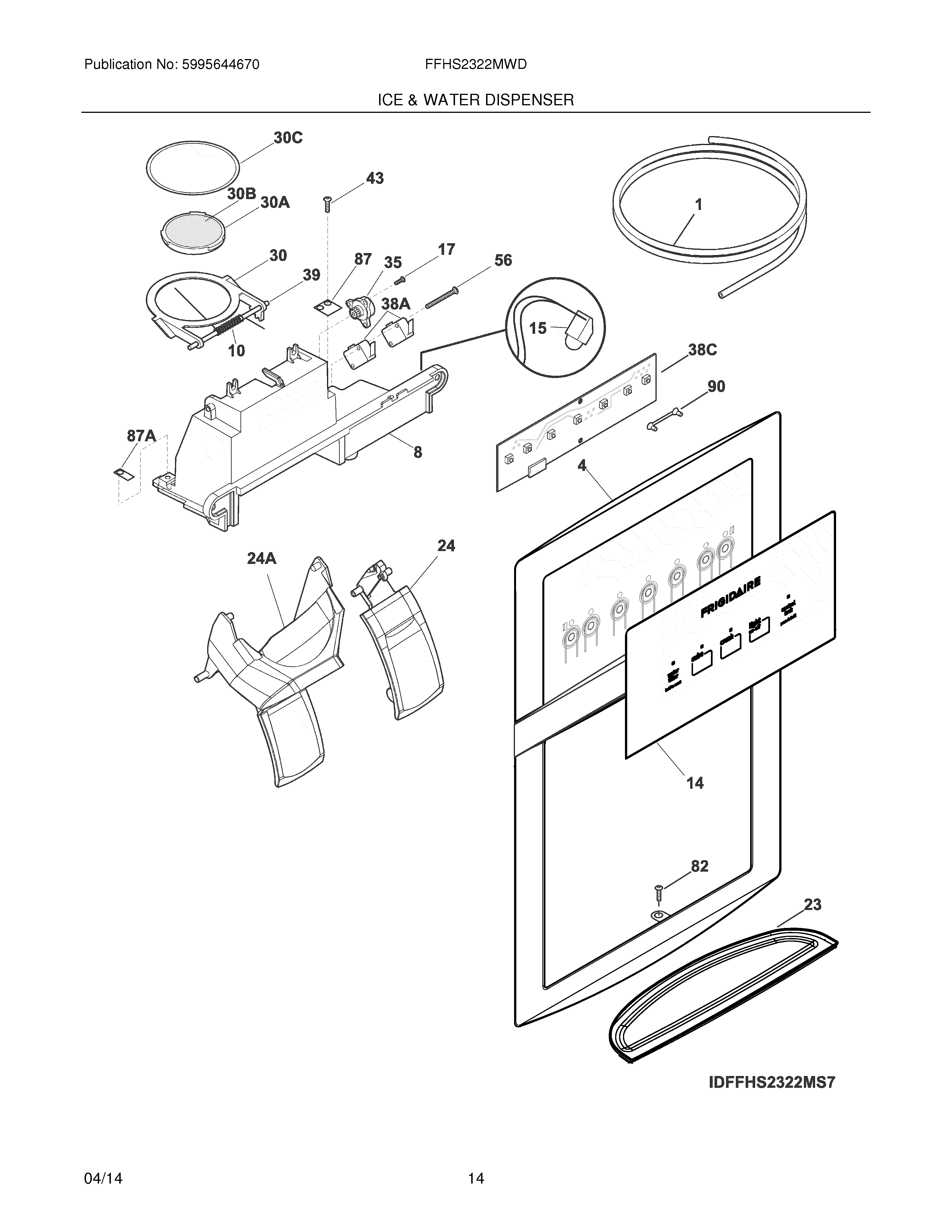

FFHS2322MWD 15 – ICE & WATER DISPENSER

Products

Position	Product
NI	5304521768 Frigidaire Refrigerator Harness
NI	218515403 Frigidaire Refrigerator Clip-Grille
NI	218976429 Frigidaire Refrigerator Tube
NI	241850615 Frigidaire Ice Maker Fill Tube Assembly
NI	240561701 Frigidaire Refrigerator Seal
NI	218976419 Frigidaire Refrigerator Tube
1	218976409 Frigidaire Refrigerator Water Tube
4	WCI 242097901
8	MODULE-DISPENSER
10	241688901 Frigidaire Refrigerator Torsion Spring
14	242083001 Frigidaire Refrigerator Module Cover Label
15	242065203 Frigidaire Refrigerator Assembly Harness
17	241679801 Frigidaire Screw
23	241947001 Frigidaire Refrigerator Drip Tray
24	ACTUATOR-WATER, WHITE
24A	ACTUATOR-ICE, WHITE
30C	241688701 Frigidaire Refrigerator Door Seal
30B	241688601 Frigidaire Refrigerator Door Insulation
30	241688401 Frigidaire Ice Door Bracket
30A	241688501 Frigidaire Refrigerator Door Center
35	241689301 Frigidaire Refrigerator Rotary Damper
38A	241689104 Frigidaire Refrigerator Switch-Micro
38C	242053503 Frigidaire Refrigerator Control Board
38C	241953902 Frigidaire Refrigerator Screw
39	241688801 Frigidaire Refrigerator Pin-Hinge
43	WCI 215296301
56	241689201 Frigidaire Refrigerator Screw-Micro Switch
82	5304453707 Frigidaire Oven Screw
87A	241688301 Frigidaire Refrigerator Bearing Plate
87	241688302 Frigidaire Refrigerator Bearing Plate
90	241732703 Frigidaire Refrigerator Light Pipe
