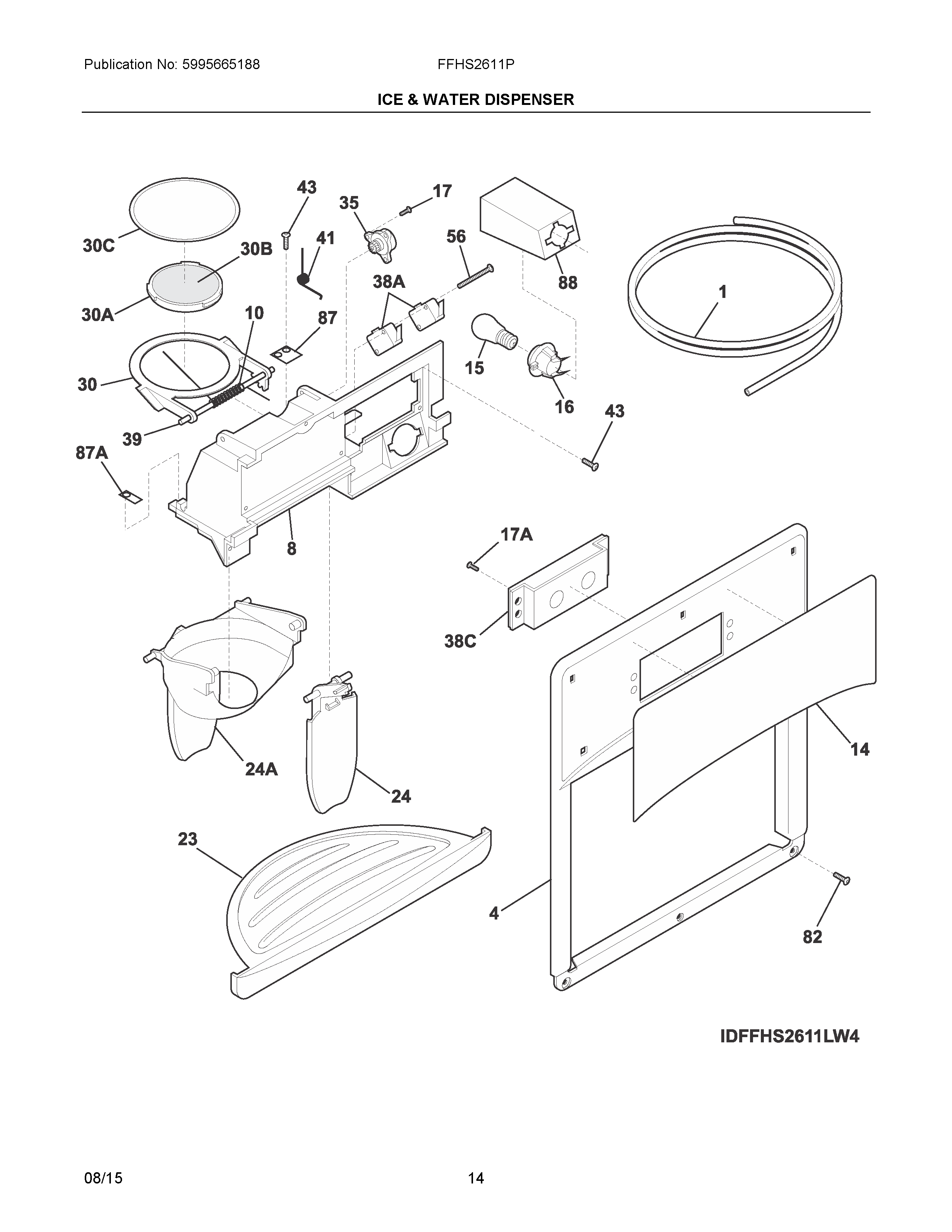

FFHS2611PFCA 08 – ICE & WATER DISPENSER

FFHS2611PFCA 08 – ICE & WATER DISPENSER

Written by

in

FFHS2611PFCA 08 – ICE & WATER DISPENSER

Products

PositionProduct
NIA5304453707 Frigidaire Oven Screw
NIA218976439 Frigidaire Refrigerator Water Inlet Tube
NID242220206 Frigidaire Refrigerator Water Inlet Tube
NICA5304521693 Frigidaire Refrigerator Harness-Facade W/Li
NIAA241679201 Frigidaire Refrigerator Wiring Harness
NIB241850615 Frigidaire Ice Maker Fill Tube Assembly
NIC240561701 Frigidaire Refrigerator Seal
1218976438 Frigidaire Refrigerator Tube
4241679003 Frigidaire Dispenser Cover
8WCI 241680507
10241688901 Frigidaire Refrigerator Torsion Spring
14240570237 Frigidaire Refrigerator Dispense Front Panel/Cover
15WCI 5304506475
16240548901 Frigidaire Refrigerator P-1 Socket
17241679801 Frigidaire Screw
17A241679901 Frigidaire Refrigerator Screw
23241649003 Frigidaire Refrigerator Drip Tray
24A241681903 Frigidaire Refrigerator Ice Dispenser Actuator
24241682003 Frigidaire Refrigerator Black Water Dispenser Actuator
30C241688701 Frigidaire Refrigerator Door Seal
30241688401 Frigidaire Ice Door Bracket
30A241688501 Frigidaire Refrigerator Door Center
30B241688601 Frigidaire Refrigerator Door Insulation
35241689301 Frigidaire Refrigerator Rotary Damper
38A241689106 Frigidaire Refrigerator Micro Switch
38C5304525097 Frigidaire Refrigerator 4 Button Switch Assembly
39241688801 Frigidaire Refrigerator Pin-Hinge
41241689001 Frigidaire Refrigerator Actuator Spring
43WCI 215296301
56241689201 Frigidaire Refrigerator Screw-Micro Switch
87241688302 Frigidaire Refrigerator Bearing Plate
87A241688301 Frigidaire Refrigerator Bearing Plate
88WCI 241686101
