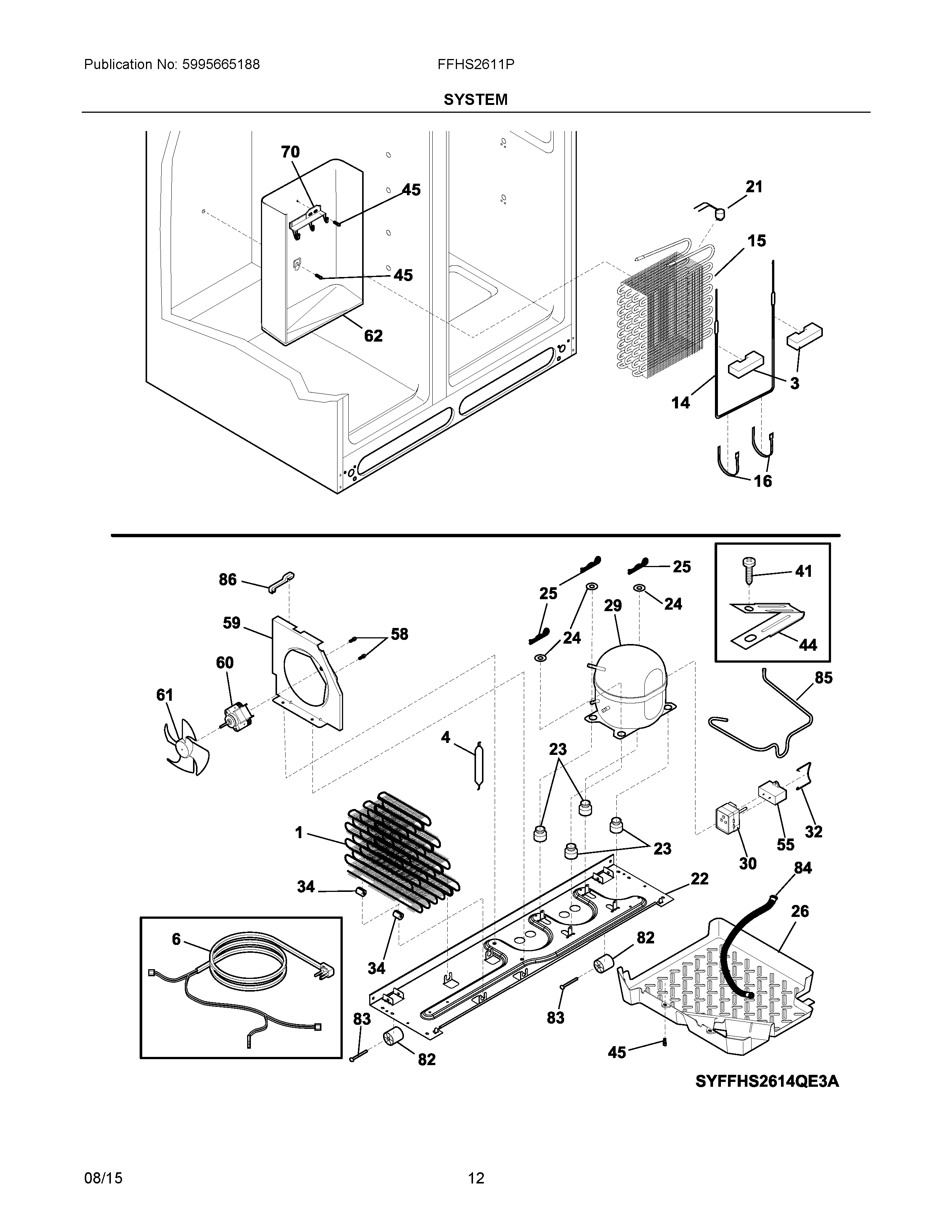

FFHS2611PFDA 07 – SYSTEM

Products

Position	Product
NIA	218252201 Frigidaire Refrigerator Screw
NIA	240346701 Frigidaire Refrigerator Foam Seal Tape
NIA	242036801 Frigidaire Refrigerator Plastic Clip
NI	5303918328 Frigidaire Refrigerator OS1 Heat Exchanger Kit
NIB	240359403 Frigidaire Refrigerator Fan Shroud Screw
NIA	5304521777 Frigidaire Refrigerator Wiring Harness
1	242106605 Frigidaire Refrigerator Condenser
3	218679614 Frigidaire Refrigerator Evaporator Coil Block
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	5304521699 Frigidaire Refrigerator Machine Wiring Harness
14	242044113 Frigidaire Refrigerator Defrost Heater Assembly
15	5303918284 Frigidaire Refrigerator Evaporator Kit P-1
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
21	5303918214 Frigidaire Refrigerator Defrost Thermostat Kit
22	240330014 Frigidaire Refrigerator Compressor Base
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	241812301 Frigidaire Refrigerator Compressor Mount Washer
25	242037702 Frigidaire Refrigerator Spring Clip
26	241697603 Frigidaire Defrost Pan
29	5304524545 Frigidaire Refrigerator Compressor
30	297259515 Frigidaire Refrigerator Start Relay
32	216954300 Frigidaire Refrigerator Clip
34	240405201 Frigidaire Refrigerator Grommet
41	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
44	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45	5304455650 Frigidaire Refrigerator Screw
55	297286803 Frigidaire Refrigerator Run Capacitor
58	240569202 Frigidaire Refrigerator Screw
59	241946106 Frigidaire Refrigerator Shroud-Cond Fan
60	MOTOR-CONDENSER FAN
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
62	5304532798 Frigidaire Refrigerator Drain Trough
70	218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
82	240335202 Frigidaire Refrigerator Roller
83	5304455655 Frigidaire Refrigerator Rivet
84	241830905 Frigidaire Lower Drain Tube
85	241856909 Frigidaire Refrigerator Connector Tube
86	240409302 Frigidaire Refrigerator Condenser Tube Spacer
