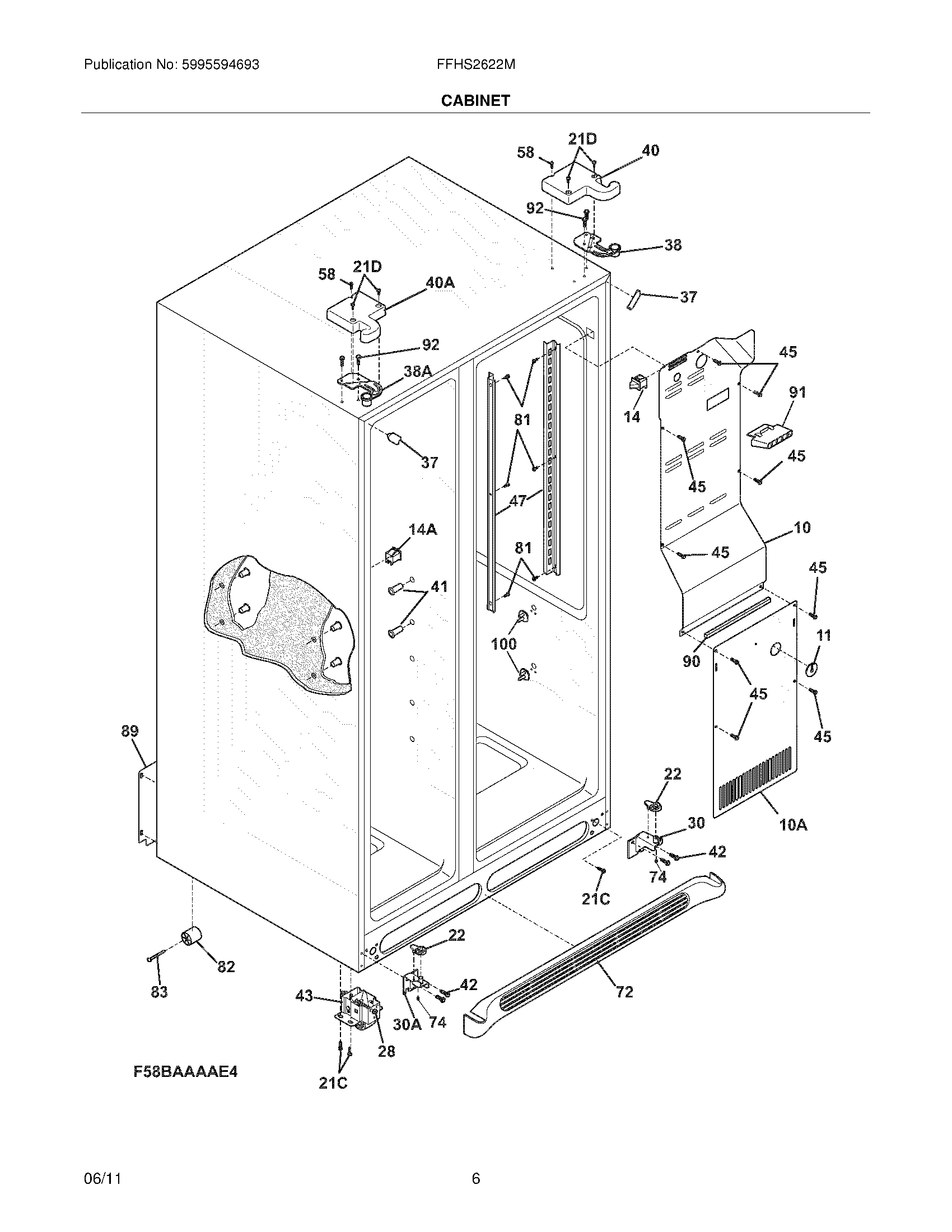

FFHS2622MQ0 07 – CABINET

FFHS2622MQ0 07 – CABINET

Written by

in

FFHS2622MQ0 07 – CABINET

Products

Position	Product
NI	240494001 Frigidaire Refrigerator Plug Button
NI	241890601 Frigidaire Refrigerator Louver Assembly
NI	241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
NI	241868101 Frigidaire Air Guide
NI	5304414035 Frigidaire Refrigerator Touch Up Paint Bisque
10	240435912 Frigidaire Refrigerator Cover-Air Duct
10A	241719711 Frigidaire Refrigerator Evaporator Coil Cover
11	5303208309 Frigidaire Refrigerator Plug Hole
14A	241547902 Frigidaire Refrigerator Light Switch
14	240505801 Frigidaire Light Switch
21D	218781101 Frigidaire Handle Screw
21C	218252201 Frigidaire Refrigerator Screw
22	241917801 Frigidaire Refrigerator Closer Plate
30	241918001 Frigidaire Lower Door Hinge
30A	241918002 Frigidaire Refrigerator Lower Hinge
37	TRIM-CABINET CORNER
38A	241761302 Frigidaire Refrigerator Bracket-Upper Hinge
38	241761301 Frigidaire Upper Bracket Hinge
40	WCI 241946713
40A	Cover-upper hinge,bisque ,LH
41	241550801 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
47	WCI 218659500
58	241548003 Frigidaire Refrigerator Screw
72	WCI 240324410
74	218755402 Frigidaire Refrigerator Set Screw
81	5304455650 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
89	5304520905 Frigidaire Assembly Cover Refrigerator
90	218249808 Frigidaire Refrigerator Seal-Coil Cover
91	240380101 Frigidaire Refrigerator Ice Maker Duct
92	241710601 Frigidaire Refrigerator Screw
100	CRISPER COVER SUPPORT
100	241993001 Frigidaire Refrigerator Left Crisper Cover Support
