FFHT1425VB 04 – SHELVES

FFHT1425VB 04 – SHELVES

Written by

in

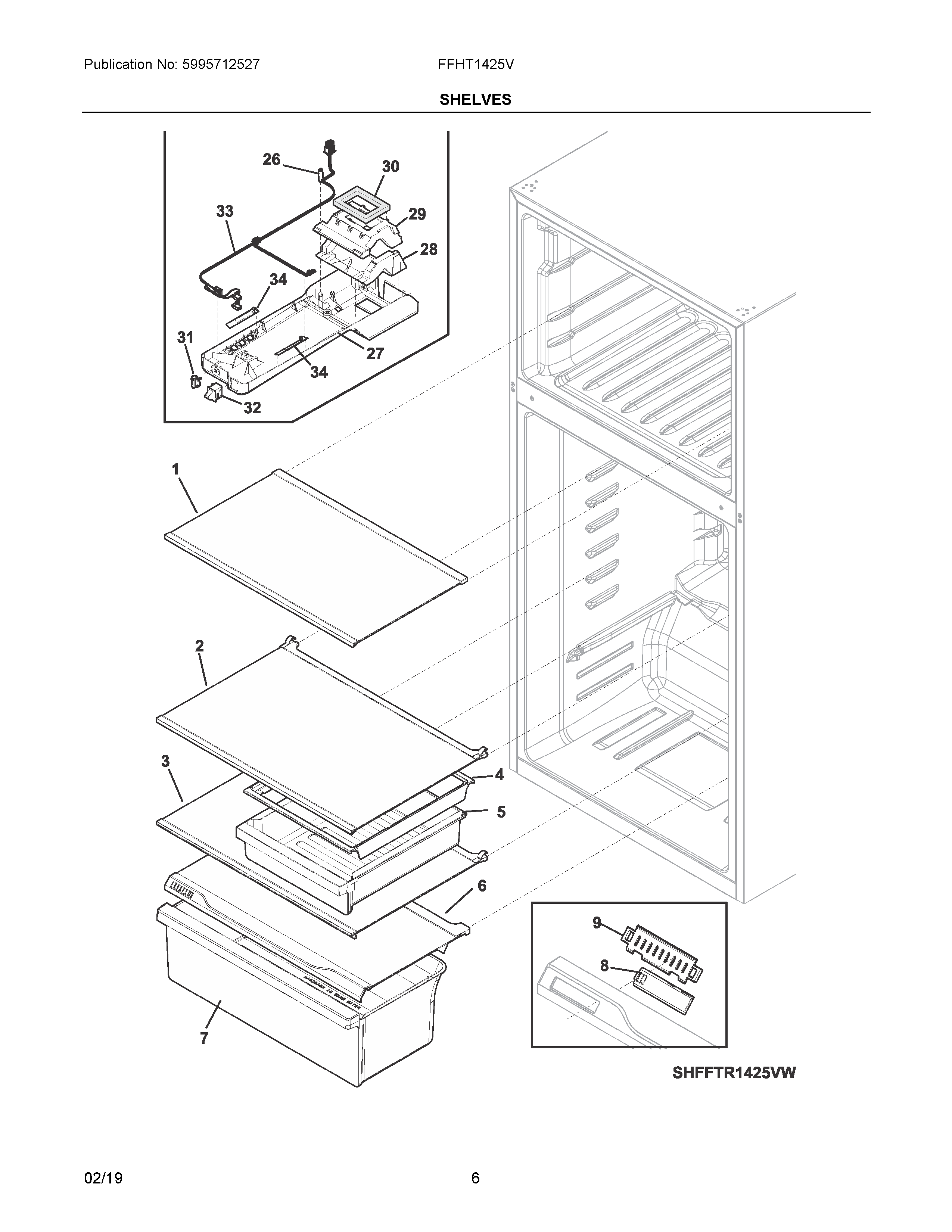

FFHT1425VB 04 – SHELVES

Products

PositionProduct
NI811949503 Frigidaire Screw
15304520481 Frigidaire Shelf Assembly
25304520482 Frigidaire Refrigerator Shelf Assembly
35304520483 Frigidaire Refrigerator Shelf Assembly
45304520484 Frigidaire Refrigerator Deli Drawer Support
55304520485 Frigidaire Refrigerator Drawer Assembly
65304520486 Frigidaire Refrigerator Shelf Assembly
75304520487 Frigidaire Crisper Drawer Assembly
85304520488 Frigidaire Slide
95304520489 Frigidaire Frame
265304520944 Frigidaire Refrigerator Sensor
275304520490 Frigidaire Refrigerator Control Box
28DUCT, AIR FLOW, EPS, BOTTOM
295304520492 Frigidaire Refrigerator Duct
305304520493 Frigidaire Refrigerator Seal
315304532562 Frigidaire Refrigerator Knob
325304520495 Frigidaire Refrigerator Switch
335304520496 Frigidaire Refrigerator Wiring Harness
345304525264 Frigidaire LED Light
