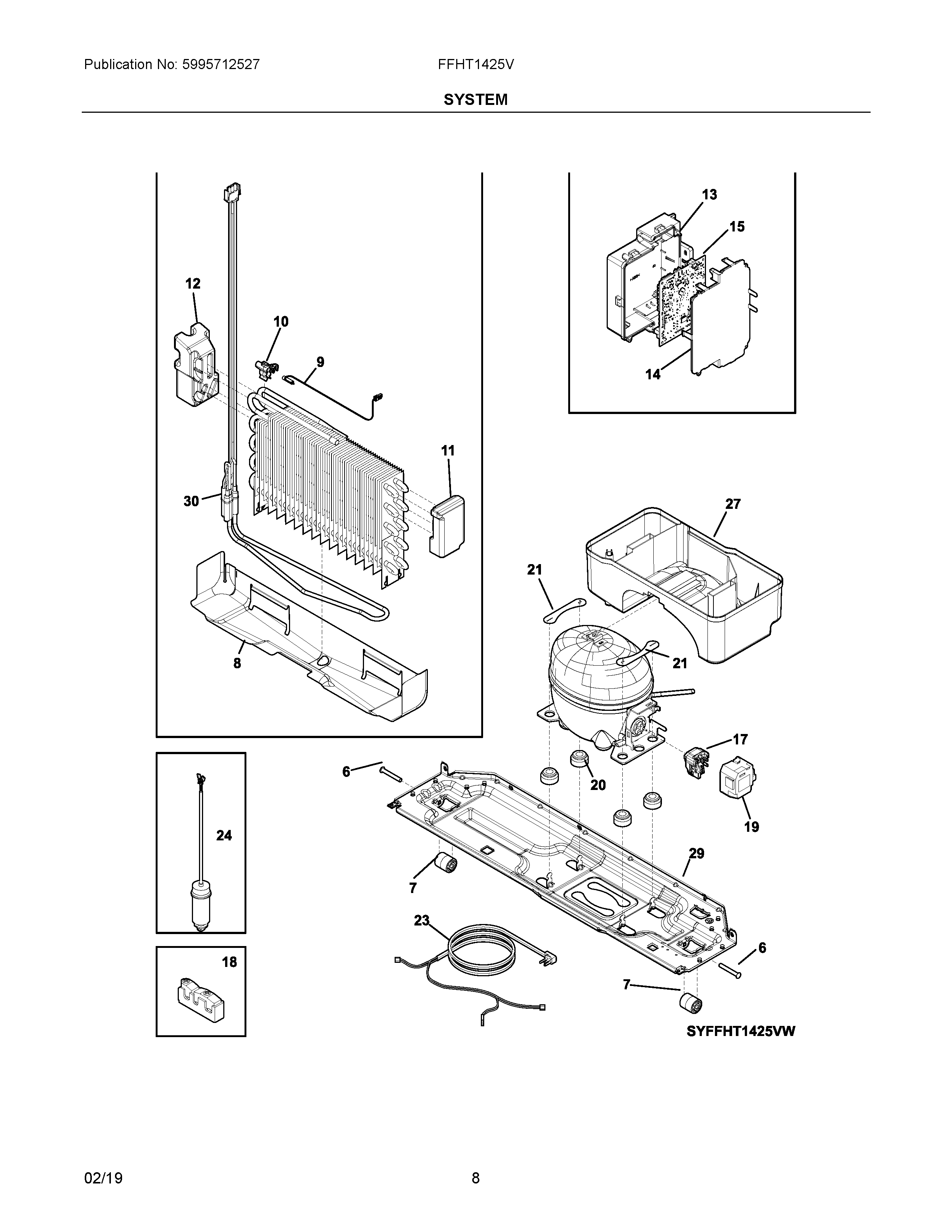

FFHT1425VB 05 – SYSTEM

Products

Position	Product
NI	811949401 Frigidaire Refrigerator Screw
NI	808337903 Frigidaire Refrigerator Screw
NIA	5304519110 Frigidaire Screw
6	811998302 Frigidaire Refrigerator Shaft
7	807822703 Frigidaire Base Assembly
8	5304520498 Frigidaire Refrigerator Tray
9	5304520944 Frigidaire Refrigerator Sensor
10	811980406 Frigidaire Clamp
11	SUPPORT, EVAPORATOR, RH
12	SUPPORT, EVAPORATOR, LH
13	HOUSING, CONTROL BOARD, MAIN
14	5304525319 Frigidaire Cover Assembly
15	5304526091 Frigidaire Refrigerator PC Board
17	5304520509 Frigidaire Refrigerator Electricals
18	242535801 Frigidaire Clamp Assembly
19	242563302 Frigidaire Cover
20	811978901 Frigidaire Refrigerator Grommet
21	5304524607 Frigidaire Clamp
23	5304520505 Frigidaire Refrigerator Power Cord
24	CAPACITOR, RUN, COMPRESSOR
27	5304534928 Frigidaire Refrigerator Drain Pan
30	5304520507 Frigidaire Refrigerator Heater
