FFHT1515LWB 09 – SYSTEM

FFHT1515LWB 09 – SYSTEM

Written by

in

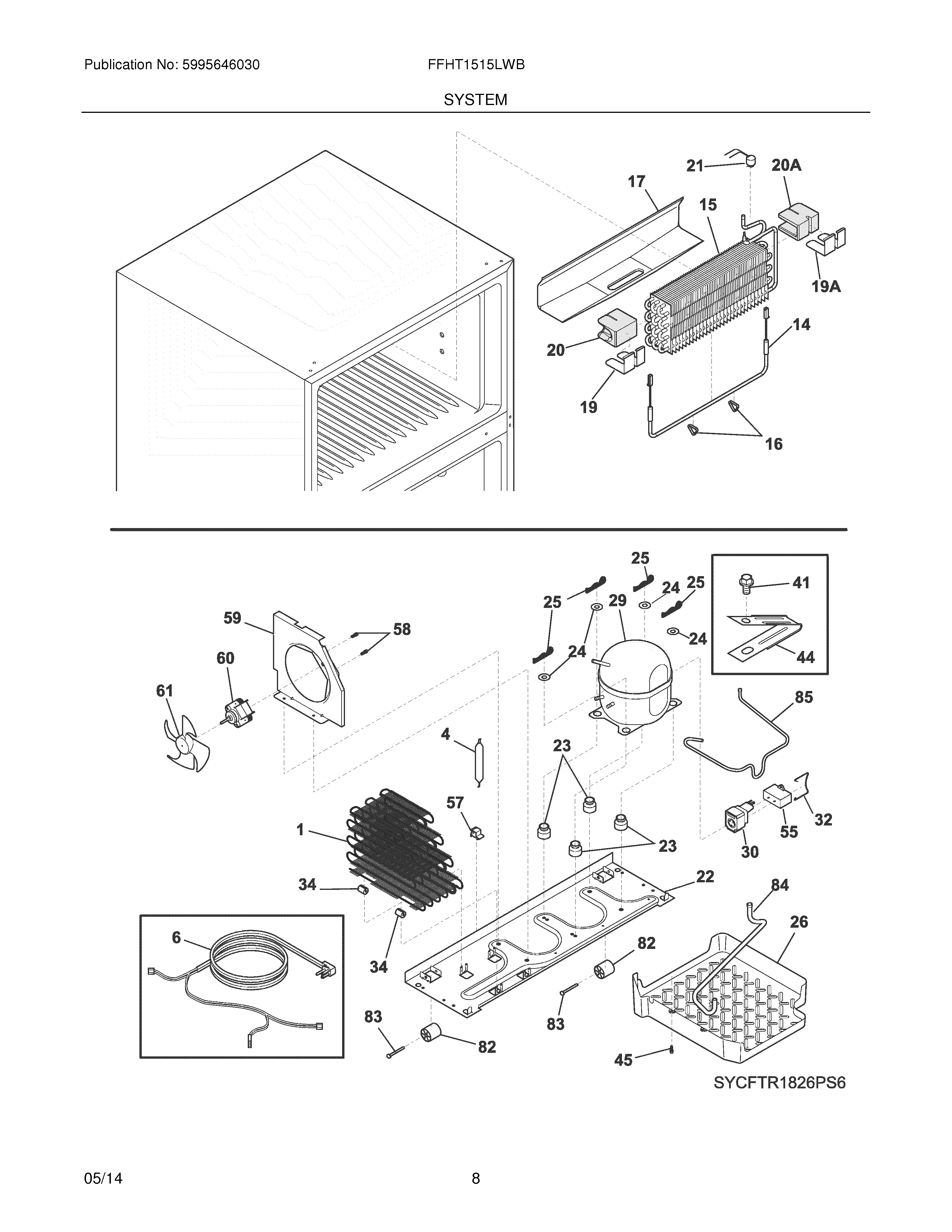

FFHT1515LWB 09 – SYSTEM

Products

Position	Product
NI	WCI 242099701
NI	240359403 Frigidaire Refrigerator Fan Shroud Screw
NI	240396801 Frigidaire Refrigerator Tube Clamp
NI	240346701 Frigidaire Refrigerator Foam Seal Tape
NI	5304455650 Frigidaire Refrigerator Screw
NI	5303918263 Frigidaire Refrigerator Primary Heat Exchanger Kit (O/S1)
NI	218252201 Frigidaire Refrigerator Screw
NI	240388701 Frigidaire Refrigerator Wiring Harness
1	241785404 Frigidaire Refrigerator Condenser
1A	242213901 Frigidaire Refrigerator Deflector
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	5304521786 Frigidaire Refrigerator Wiring Harness
14	242044007 Frigidaire Refrigerator Defrost Heater
15	WCI 242214404
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	241801302 Frigidaire Refrigerator Trough-Drain
19	242320401 Frigidaire Refrigerator Shield
20A	5304527430 Frigidaire Refrigerator Block
20	5304527429 Frigidaire Refrigerator Block
21	5303918634 Frigidaire Kit Thermostat
22	241665605 Frigidaire Refrigerator Base Compressor
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	241812301 Frigidaire Refrigerator Compressor Mount Washer
25	242037701 Frigidaire Refrigerator Clip-Compressor Mtg
26	241920605 Frigidaire Refrigerator Defrost Pan
29	WCI 242040643
30	297259505 Frigidaire Refrigerator Starter
32	216954300 Frigidaire Refrigerator Clip
34	240405201 Frigidaire Refrigerator Grommet
41	240433204 Frigidaire Refrigerator Screw
41	241941202 Frigidaire Refrigerator Screw-#8-18 X 3/8 F
44	5304456288 Frigidaire Refrigerator Clamp
45	241500305 Frigidaire Refrigerator Screw
55	297286803 Frigidaire Refrigerator Run Capacitor
57	240542601 Frigidaire Clip-WIRING Harness
58	240569202 Frigidaire Refrigerator Screw
59	242050604 Frigidaire Refrigerator Shroud
60	MOTOR-CONDENSER FAN
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
84	240500801 Frigidaire Refrigerator P-1 Tube-Drain
85	241856909 Frigidaire Refrigerator Connector Tube
