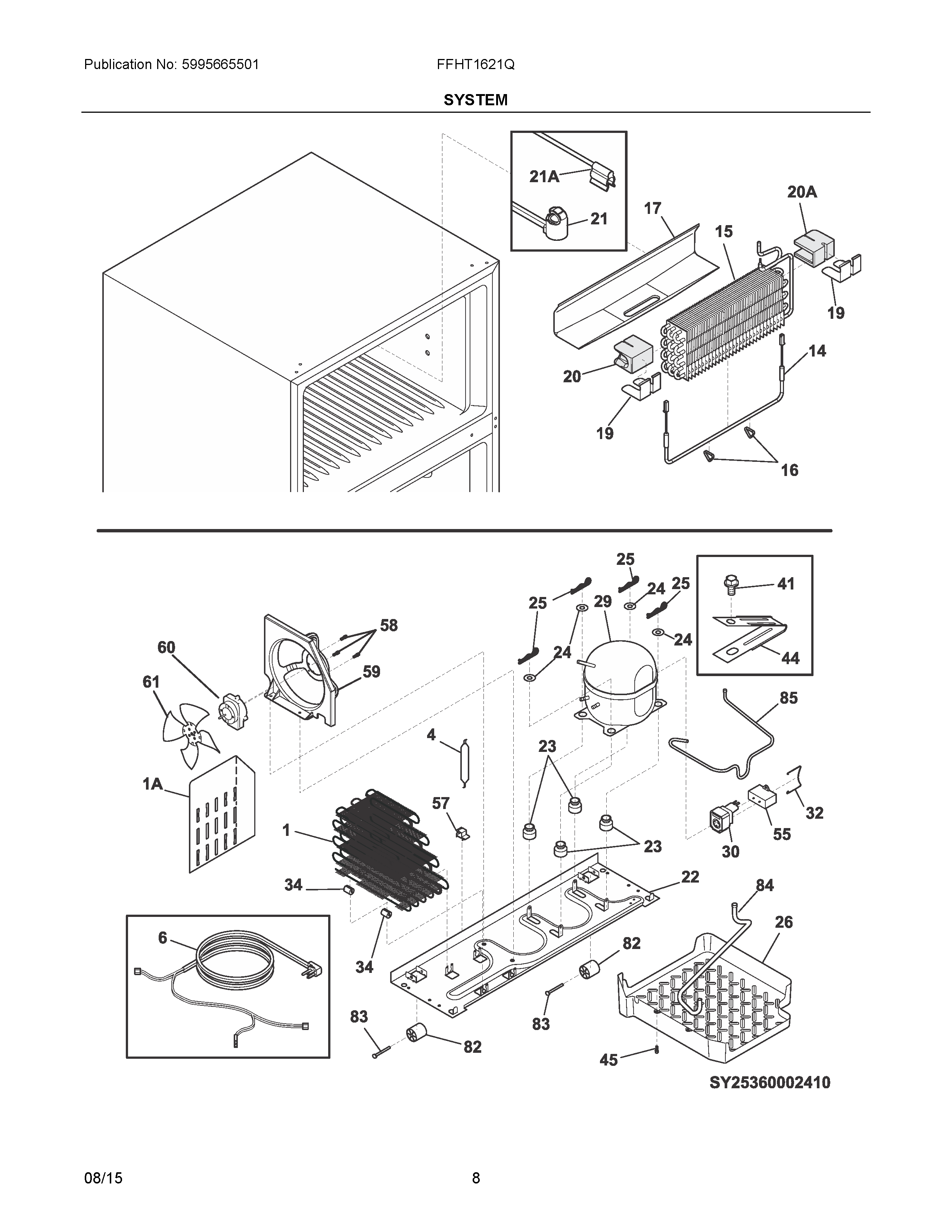

FFHT1621QW2 05 – SYSTEM

FFHT1621QW2 05 – SYSTEM

Written by

in

FFHT1621QW2 05 – SYSTEM

Products

Position	Product
NIA	5304523788 Frigidaire Defrost Thermostat
NIA	240346701 Frigidaire Refrigerator Foam Seal Tape
NIB	240359403 Frigidaire Refrigerator Fan Shroud Screw
NI	240396801 Frigidaire Refrigerator Tube Clamp
NI	218843801 Frigidaire Refrigerator Screw
NIA	218252201 Frigidaire Refrigerator Screw
1	5304502821 Frigidaire Refrigerator Condenser
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	5304521786 Frigidaire Refrigerator Wiring Harness
14	242044007 Frigidaire Refrigerator Defrost Heater
15	5303918275 Frigidaire Refrigerator Evaporator Kit P1
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	241801302 Frigidaire Refrigerator Trough-Drain
19	242320401 Frigidaire Refrigerator Shield
20A	5304527430 Frigidaire Refrigerator Block
20	5304527429 Frigidaire Refrigerator Block
21A	5303918645 Frigidaire Refrigerator Thermistor Kit
21	5303918638 Frigidaire Refrigerator Thermostat
22	241665605 Frigidaire Refrigerator Base Compressor
24	241812301 Frigidaire Refrigerator Compressor Mount Washer
25	242037701 Frigidaire Refrigerator Clip-Compressor Mtg
26	241920605 Frigidaire Refrigerator Defrost Pan
29	5304524545 Frigidaire Refrigerator Compressor
30	297259505 Frigidaire Refrigerator Starter
32	216954300 Frigidaire Refrigerator Clip
41	240433204 Frigidaire Refrigerator Screw
44	5304456288 Frigidaire Refrigerator Clamp
45	241500305 Frigidaire Refrigerator Screw
55	297286803 Frigidaire Refrigerator Run Capacitor
57	240542601 Frigidaire Clip-WIRING Harness
58	240569202 Frigidaire Refrigerator Screw
59	242050604 Frigidaire Refrigerator Shroud
60	MOTOR-CONDENSER FAN
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
83	5304455655 Frigidaire Refrigerator Rivet
84	240500801 Frigidaire Refrigerator P-1 Tube-Drain
85	241856909 Frigidaire Refrigerator Connector Tube
