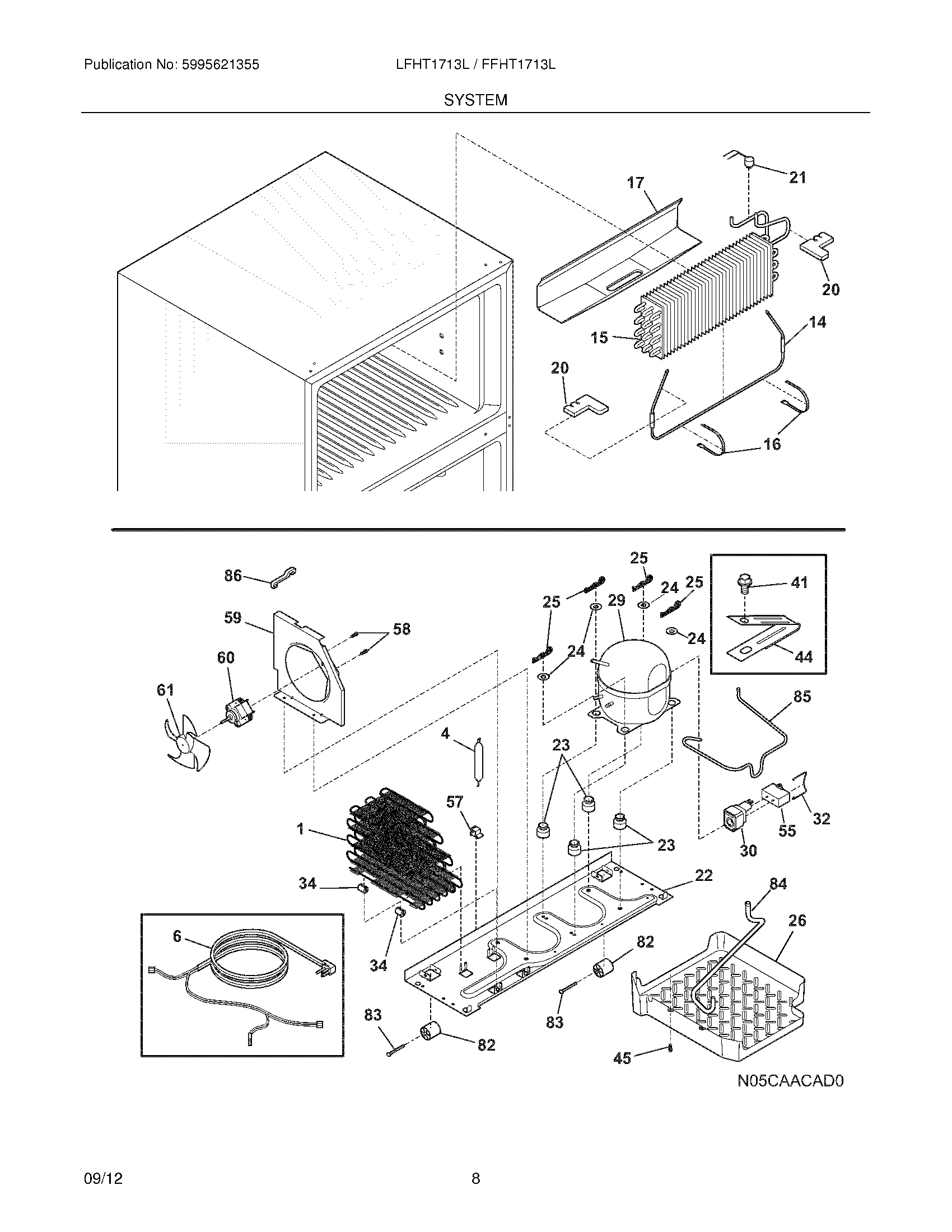

FFHT1713LQA 09 – SYSTEM

FFHT1713LQA 09 – SYSTEM

Written by

in

FFHT1713LQA 09 – SYSTEM

Products

Position	Product
NI	240388701 Frigidaire Refrigerator Wiring Harness
NI	240359403 Frigidaire Refrigerator Fan Shroud Screw
NI	240396801 Frigidaire Refrigerator Tube Clamp
NI	HARNESS-WIRING
NI	240346701 Frigidaire Refrigerator Foam Seal Tape
NI	218252201 Frigidaire Refrigerator Screw
1	241785404 Frigidaire Refrigerator Condenser
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	5304521786 Frigidaire Refrigerator Wiring Harness
14	242044007 Frigidaire Refrigerator Defrost Heater
15	242214411 Frigidaire Refrigerator Evaporator
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	241801302 Frigidaire Refrigerator Trough-Drain
20	241551902 Frigidaire Refrigerator Insulation Block
21	5303918202 Frigidaire Refrigerator Defrost Thermostat
22	241665605 Frigidaire Refrigerator Base Compressor
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	241812301 Frigidaire Refrigerator Compressor Mount Washer
25	242037701 Frigidaire Refrigerator Clip-Compressor Mtg
26	241920605 Frigidaire Refrigerator Defrost Pan
29	5304507765 Frigidaire Refrigerator Compressor Kit
30	216954235 Frigidaire Refrigerator Compressor Freezer Controller
32	297030500 Frigidaire Refrigerator Clip
34	240405201 Frigidaire Refrigerator Grommet
41	241941202 Frigidaire Refrigerator Screw-#8-18 X 3/8 F
41	240433204 Frigidaire Refrigerator Screw
44	5304456288 Frigidaire Refrigerator Clamp
45	241500305 Frigidaire Refrigerator Screw
45	5304455650 Frigidaire Refrigerator Screw
55	297286803 Frigidaire Refrigerator Run Capacitor
57	240542601 Frigidaire Clip-WIRING Harness
58	240569202 Frigidaire Refrigerator Screw
59	242050604 Frigidaire Refrigerator Shroud
60	MOTOR-CONDENSER FAN
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
84	240500801 Frigidaire Refrigerator P-1 Tube-Drain
85	241871503 Frigidaire Refrigerator Tube-Connector
86	240409302 Frigidaire Refrigerator Condenser Tube Spacer
