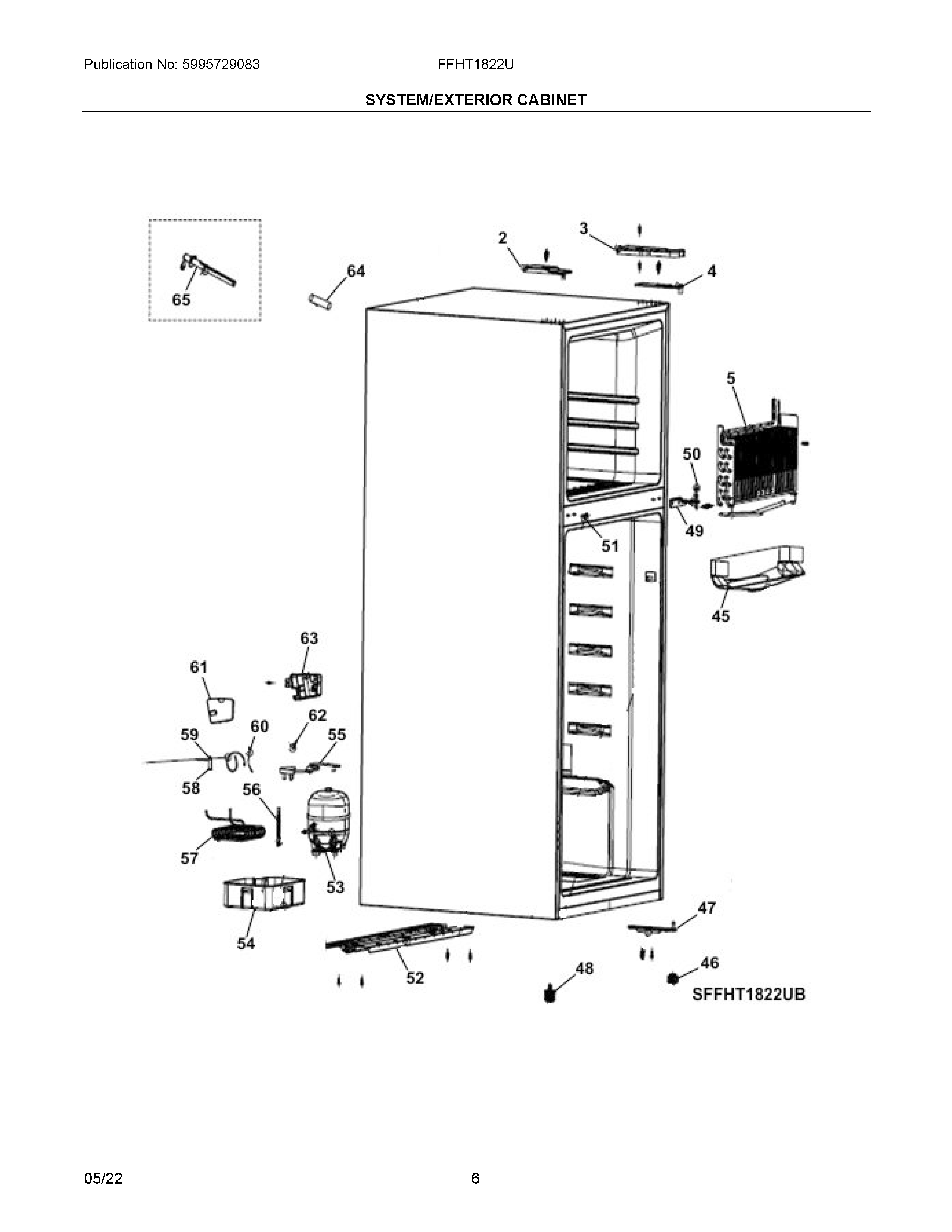

FFHT1822UB 04 – SYSTEM/EXTERIOR CABINETadmin2025-04-26T10:21:34+00:00FFHT1822UB 04 – SYSTEM/EXTERIOR CABINET
Products
| Position | Product |
|---|
| NI | COVER, HINGE, BLACK, LH UPPER, (OPTIONAL) |
| 2 | COVER, HINGE HOLES, BLACK, UPPER |
| 3 | COVER, HINGE, BLACK, RH UPPER |
| 4 | 5304529312 Frigidaire Hinge |
| 5 | 5304529313 Frigidaire Refrigerator Evaporator |
| 45 | TROUGH, DRAIN, EVAPORATOR |
| 46 | 5304534465 Frigidaire Foot |
| 47 | 5304529346 Frigidaire Refrigerator Hinge |
| 48 | 5304518500 Frigidaire Refrigerator Foot |
| 49 | HINGE, DOOR, MIDDLE |
| 50 | SPACER, HINGE, MIDDLE |
| 51 | COVER, SCREW, MIDDLE HINGE |
| 52 | 5304521532 Frigidaire Base |
| 53 | 5304533013 Frigidaire Refrigerator Compressor |
| 54 | 5304521531 Frigidaire Refrigerator Tray |
| 55 | 5304533014 Frigidaire Cord |
| 56 | 5304518525 Frigidaire Drain Pipe Assembly |
| 57 | 5304529351 Frigidaire Refrigerator Condenser |
| 58 | A19676501 Frigidaire Refrigerator Drier Filter |
| 59 | 5304521528 Frigidaire Refrigerator Pipe |
| 60 | 5304518526 Frigidaire Refrigerator Wire |
| 61 | COVER, WATER VALVE |
| 62 | TUBE, PROCESS |
| 63 | 5304529354 Frigidaire Housing |
| 64 | 5304529355 Frigidaire Sponge |
| 65 | 5304529356 Frigidaire Tube |
