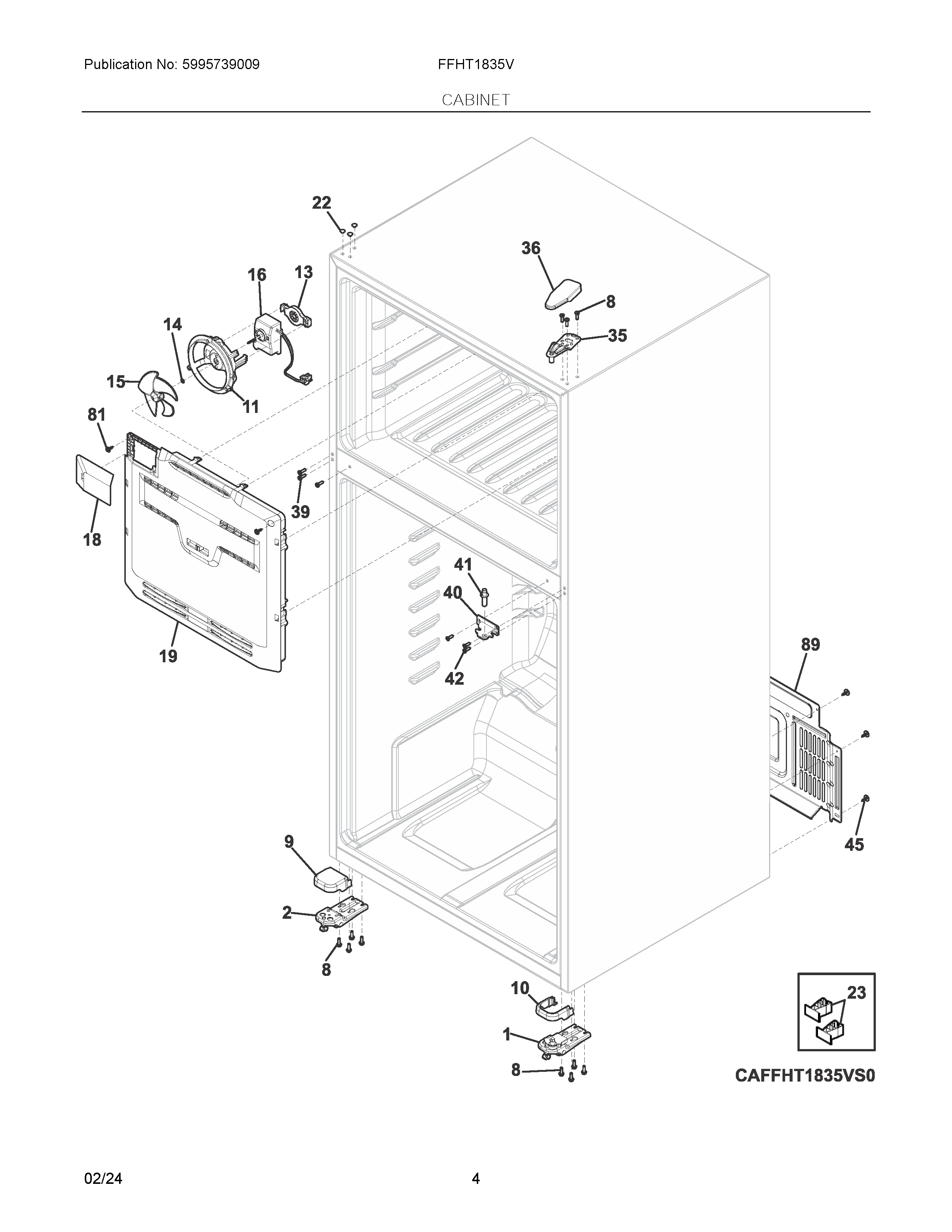

FFHT1835VB4 03 – CABINET

Products

Position	Product
NI	5304524219 Frigidaire Refrigerator Spacer
1	5304526773 Frigidaire Refrigerator Hinge Assembly
2	5304519776 Frigidaire Hinge Assembly
9	5304522220 Frigidaire Refrigerator Hinge Cover
10	5304522193 Frigidaire Refrigerator Bearing
11	5304519752 Frigidaire Refrigerator Shroud
13	242287501 Frigidaire Refrigerator Grommet
14	215474201 Frigidaire Refrigerator Washer
15	242219302 Frigidaire Refrigerator Evaporator Fan Blade
16	242219206 Frigidaire Refrigerator Motor
18	5304519662 Frigidaire Refrigerator Cover
19	5304519654 Frigidaire Refrigerator Cover Assembly
22	5304523314 Frigidaire Label
23	CLIP
35	5304519646 Frigidaire Refrigerator Hinge
36	5304530084 Frigidaire Cover Assembly
39	5304522252 Frigidaire Refrigerator Screw
40	5304522099 Frigidaire Refrigerator Hinge
41	5304519642 Frigidaire Refrigerator Pin
42B	5304522279 Frigidaire Screw
45	241500305 Frigidaire Refrigerator Screw
81	5304519765 Frigidaire Refrigerator Screw
89	5304522114 Frigidaire Refrigerator Access Cover
