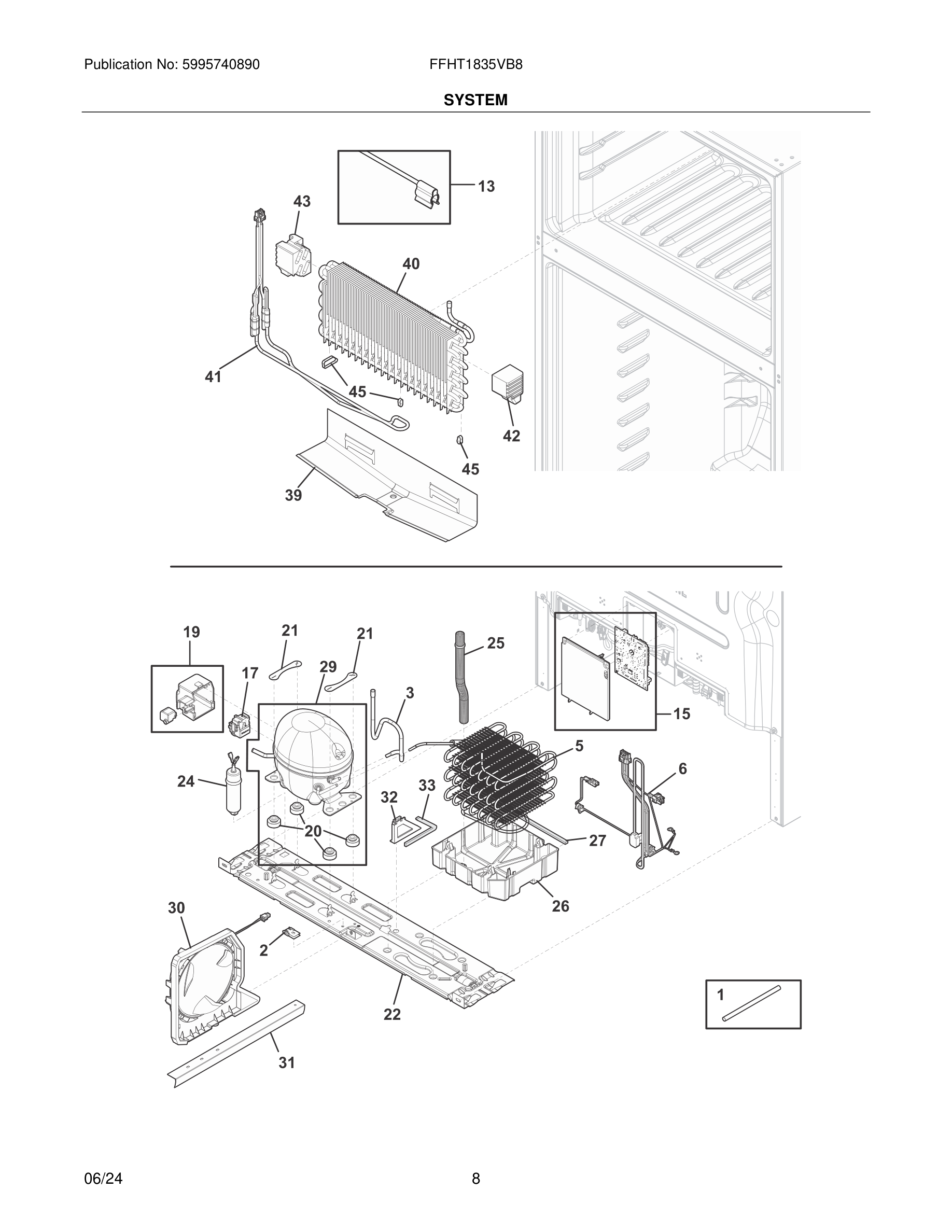

FFHT1835VB8 09 – SYSTEM

Products

Position	Product
*	240433204 Frigidaire Refrigerator Screw
*	241947701 Frigidaire Refrigerator Spacer
*	WCI 5304534034
1#	TUBE, PROCESS, 1 #
2	5304456288 Frigidaire Refrigerator Clamp
3#	TUBE-SUCTION JUMPER
4#	A19676501 Frigidaire Refrigerator Drier Filter
5#	5304530007 Frigidaire Refrigerator Condenser
6#	5304519649 Frigidaire Refrigerator Harness
13#	5303918645 Frigidaire Refrigerator Thermistor Kit
15#	5304537124 Frigidaire S/A-Mainboard & Hou
17#	5304529285 Frigidaire Refrigerator Starter
19	5304528888 Frigidaire Refrigerator Cover
20	5304522323 Frigidaire Refrigerator Grommet
21	5304524607 Frigidaire Clamp
22	5304519667 Frigidaire Refrigerator Base Assembly
24#	5304528894 Frigidaire Capacitor
25	5304519743 Frigidaire Refrigerator Tube
26	5304519674 Frigidaire Refrigerator Pan
27	5304519750 Frigidaire Seal
29#	5304537795 Frigidaire Refrigeration Compressor Assembly Esc55C
30#	5304522173 Frigidaire Refrigerator Fan Assembly
31	5304519668 Frigidaire Baffle Assembly
32	5304519745 Frigidaire Refrigerator Baffle
33	5304519751 Frigidaire Refrigerator Seal
39	5304519679 Frigidaire Refrigerator Trough
40#	5304522324 Frigidaire Refrigerator Evaporator
41#	5304522325 Frigidaire Refrigerator Heater
42	5304522326 Frigidaire Refrigerator Support
43	5304522327 Frigidaire Refrigerator Support
45	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
81	5304519765 Frigidaire Refrigerator Screw
