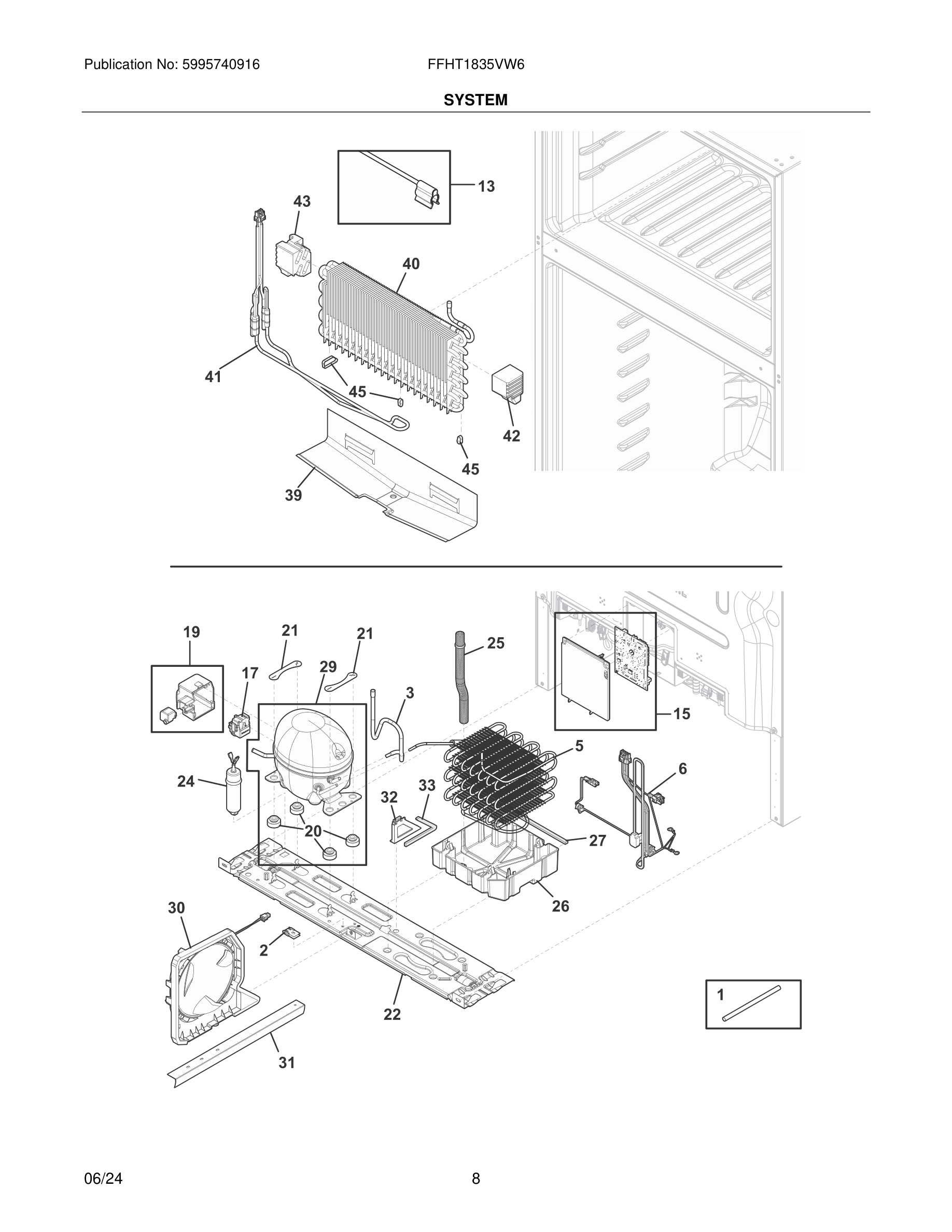

FFHT1835VW6 09 – SYSTEM

FFHT1835VW6 09 – SYSTEM

Written by

in

FFHT1835VW6 09 – SYSTEM

Products

PositionProduct
*240433204 Frigidaire Refrigerator Screw
*WCI 5304534034
1#TUBE, PROCESS, 1 #
25304456288 Frigidaire Refrigerator Clamp
3#TUBE-SUCTION JUMPER
4#A19676501 Frigidaire Refrigerator Drier Filter
5#5304530007 Frigidaire Refrigerator Condenser
6#5304519649 Frigidaire Refrigerator Harness
13#5303918645 Frigidaire Refrigerator Thermistor Kit
15#5304537124 Frigidaire S/A-Mainboard & Hou
17#5304529285 Frigidaire Refrigerator Starter
195304528888 Frigidaire Refrigerator Cover
205304522323 Frigidaire Refrigerator Grommet
215304524607 Frigidaire Clamp
225304519667 Frigidaire Refrigerator Base Assembly
24#5304528894 Frigidaire Capacitor
255304519743 Frigidaire Refrigerator Tube
265304519674 Frigidaire Refrigerator Pan
275304519750 Frigidaire Seal
29#5304537795 Frigidaire Refrigeration Compressor Assembly Esc55C
30#5304522173 Frigidaire Refrigerator Fan Assembly
315304519668 Frigidaire Baffle Assembly
325304519745 Frigidaire Refrigerator Baffle
335304519751 Frigidaire Refrigerator Seal
395304519679 Frigidaire Refrigerator Trough
40#5304522324 Frigidaire Refrigerator Evaporator
41#5304522325 Frigidaire Refrigerator Heater
425304522326 Frigidaire Refrigerator Support
435304522327 Frigidaire Refrigerator Support
45241500305 Frigidaire Refrigerator Screw
455308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
815304519765 Frigidaire Refrigerator Screw
