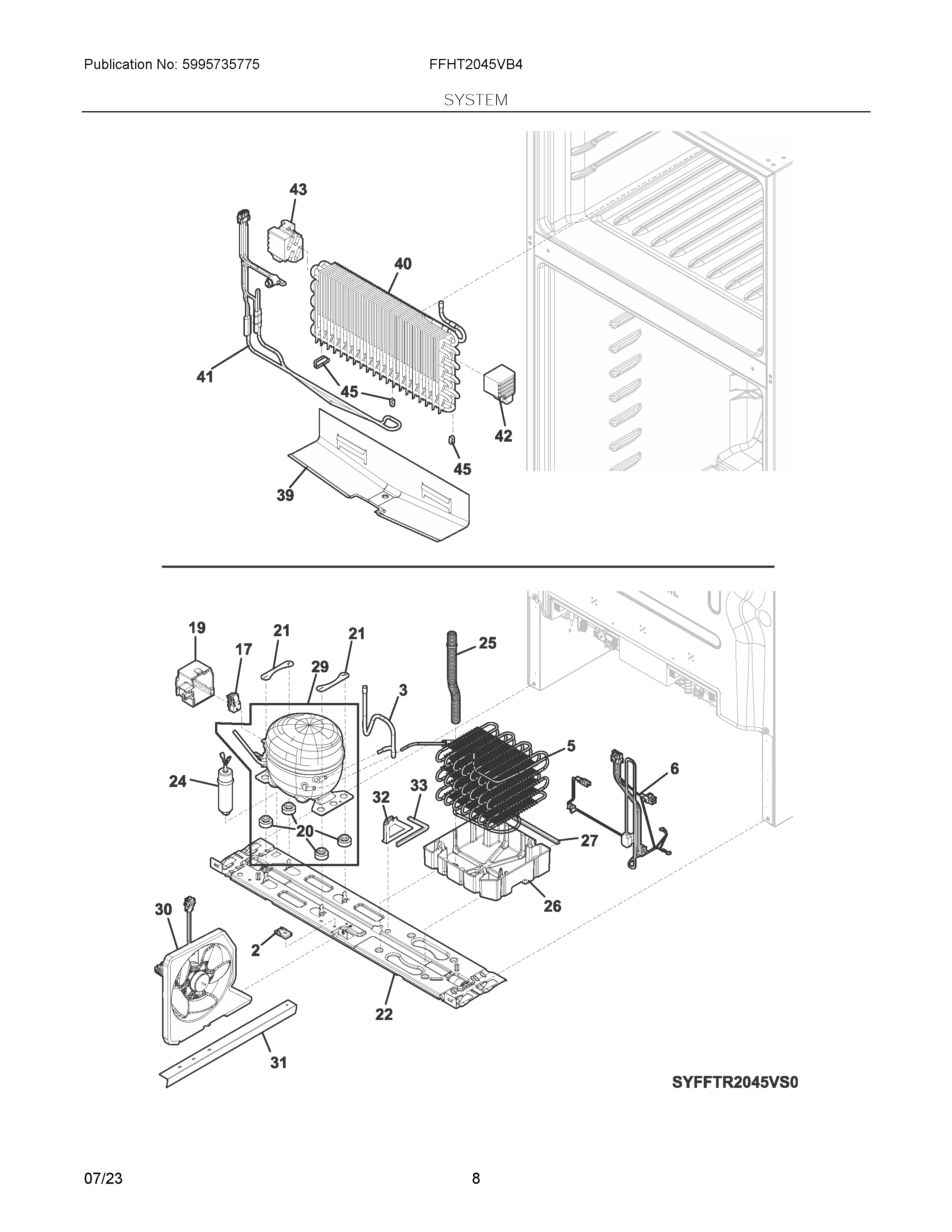

FFHT2045VB4 05 – SYSTEM

Products

Position	Product
NI	240433204 Frigidaire Refrigerator Screw
NI	241500305 Frigidaire Refrigerator Screw
NI	241947701 Frigidaire Refrigerator Spacer
NIA	5304519765 Frigidaire Refrigerator Screw
1	5304522289 Frigidaire Refrigerator Tube
2	5304456288 Frigidaire Refrigerator Clamp
3	5304531532 Frigidaire Refrigerator Tube
5	5304530007 Frigidaire Refrigerator Condenser
6	5304519649 Frigidaire Refrigerator Harness
10	A19676501 Frigidaire Refrigerator Drier Filter
13	5303918645 Frigidaire Refrigerator Thermistor Kit
15	5304528823 Frigidaire PC Control Board
17	STARTER
19	5304528888 Frigidaire Refrigerator Cover
20	5304522323 Frigidaire Refrigerator Grommet
21	5304524607 Frigidaire Clamp
22	5304519667 Frigidaire Refrigerator Base Assembly
24	5304528894 Frigidaire Capacitor
25	5304519743 Frigidaire Refrigerator Tube
26	5304519674 Frigidaire Refrigerator Pan
27	5304519750 Frigidaire Seal
29	5303918884 Frigidaire Refrigerator Compressor Kit with Electricals
30	5304522173 Frigidaire Refrigerator Fan Assembly
31	5304519668 Frigidaire Baffle Assembly
32	5304519745 Frigidaire Refrigerator Baffle
33	5304519751 Frigidaire Refrigerator Seal
39	5304519679 Frigidaire Refrigerator Trough
40	5304522324 Frigidaire Refrigerator Evaporator
41	5304522325 Frigidaire Refrigerator Heater
42	5304522326 Frigidaire Refrigerator Support
43	5304522327 Frigidaire Refrigerator Support
45	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
