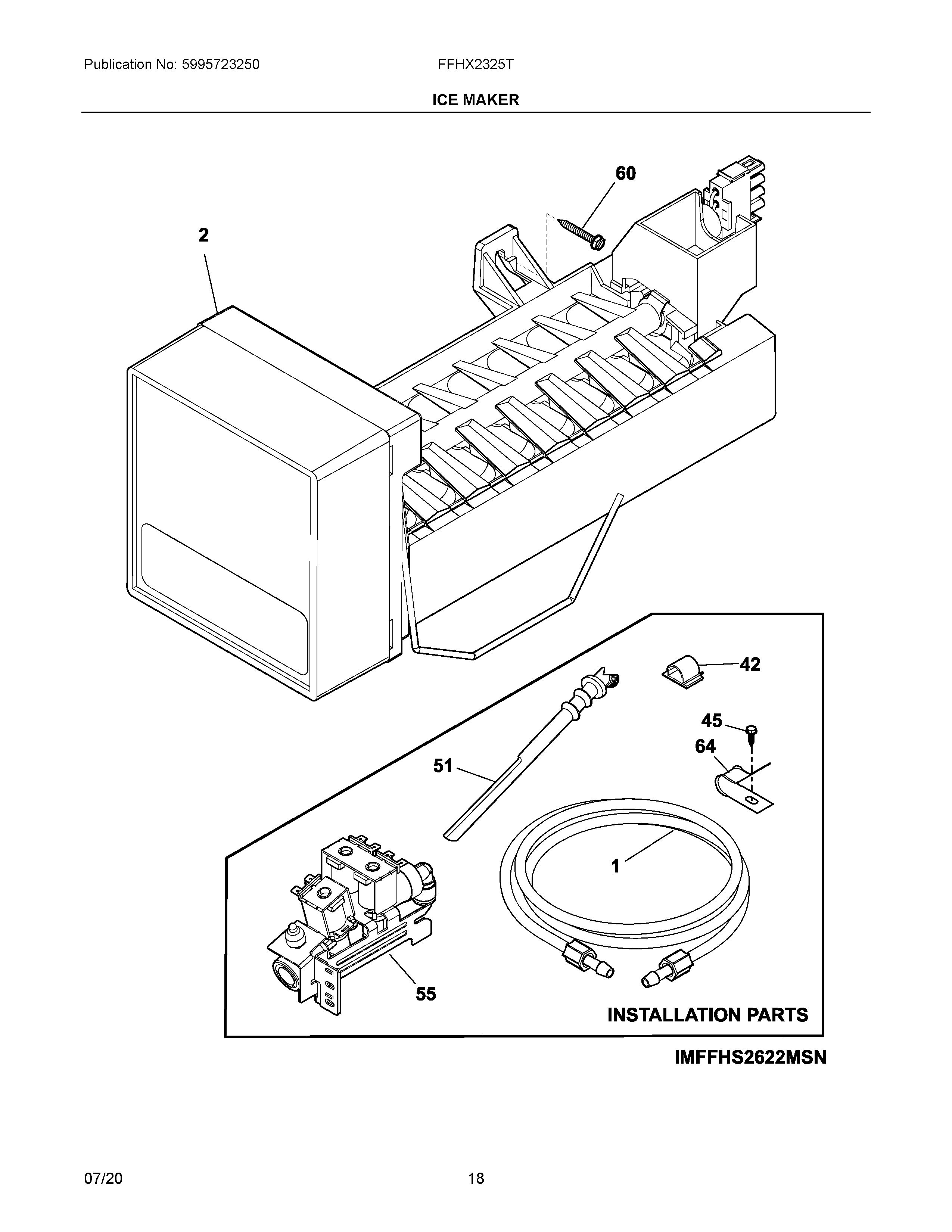

FFHX2325TS3 10 – ICE MAKER

FFHX2325TS3 10 – ICE MAKER

Written by

in

FFHX2325TS3 10 – ICE MAKER

Products

PositionProduct
NIA218709101 Frigidaire Refrigerator Handle Mounting Screw
NID242220206 Frigidaire Refrigerator Water Inlet Tube
NIA218976439 Frigidaire Refrigerator Water Inlet Tube
NIB240363602 Frigidaire Refrigerator Shoulder Screw
NI241806601 Frigidaire Refrigerator Water Connector
NIB241850615 Frigidaire Ice Maker Fill Tube Assembly
NIC240561701 Frigidaire Refrigerator Seal
1218976438 Frigidaire Refrigerator Tube
2241642534 Frigidaire Ice Maker Assembly
42218515401 Frigidaire Refrigerator Clip
455304455650 Frigidaire Refrigerator Screw
51241796405 Frigidaire Refrigerator Fill Water Tube
55242252702 Frigidaire Refrigerator Water Inlet Valve Triple Solenoid
605304455852 Frigidaire Refrigerator Screw
645304455846 Frigidaire Refrigerator Clamp
