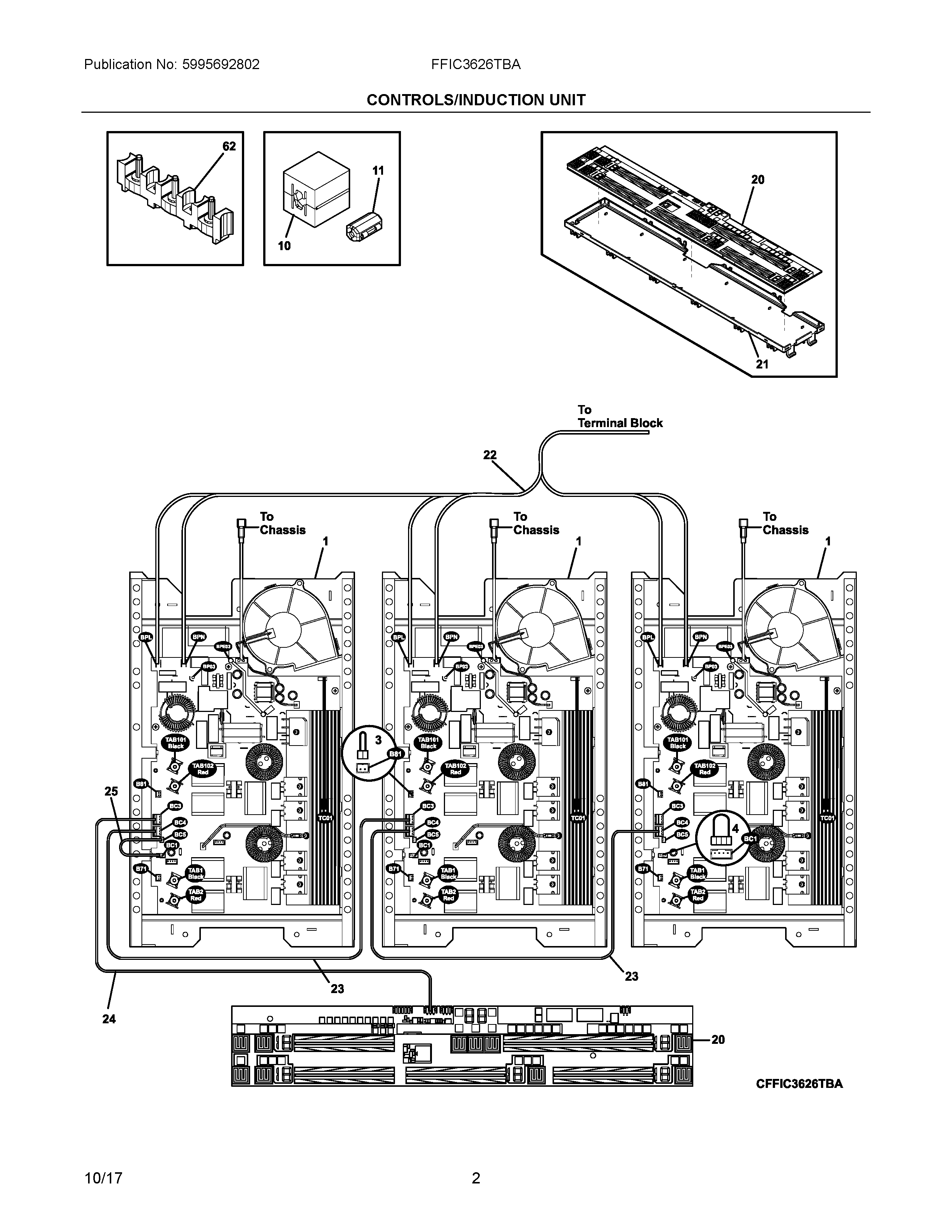

FFIC3626TBA 02 – CONTROLS/INDUCTION UNIT

FFIC3626TBA 02 – CONTROLS/INDUCTION UNIT

Written by

in

FFIC3626TBA 02 – CONTROLS/INDUCTION UNIT

Products

PositionProduct
NISCREW, ST, 4.2 : 12, (9)
NIC305452800 Frigidaire Screw
NI5304522494 Frigidaire Box & Wires Assembly
NIBNUT, TERMINAL BLOCK, (2)
NI5304514340 Frigidaire Harness Assembly
NI5304514387 Frigidaire Box
NIASCREW, M4
1357266088 Frigidaire Generator Circuit Board
3387540300 Frigidaire Bridging Plug
4318578302 Frigidaire Wire
105304506076 Frigidaire Filter
115304514339 Frigidaire Filter
20561940444 Frigidaire Control Assembly
21561630814 Frigidaire Oven Carrier
225304522492 Frigidaire Harness
23318578332 Frigidaire Oven Harness
245304514389 Frigidaire Harness
25JUMPER ASSEMBLY, BC1-BC5
625304409888 Frigidaire Oven Terminal Block with Hardware
