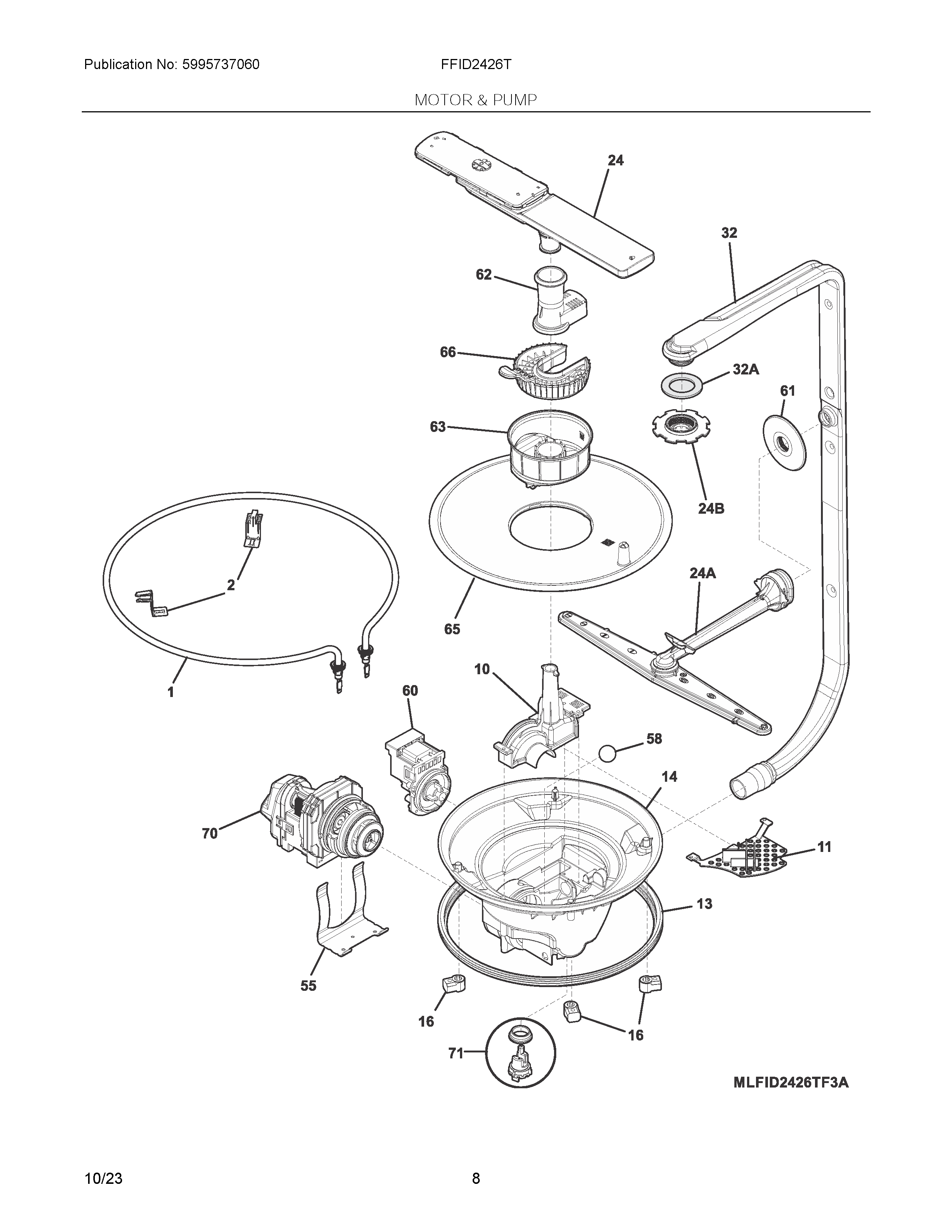

FFID2426TD6A 05 – MOTOR & PUMP

Products

Position	Product
NI	154783101 Frigidaire Dishwasher Screw
NIA	154106202 Frigidaire Dishwasher Heater Nut
NIA	154491101 Frigidaire Dishwasher Screw
NIA	154741501 Frigidaire Dishwasher Screw
NIA	154754901 Frigidaire Dishwasher Screw
NIA	154779601 Frigidaire Dishwasher Screw
NIB	807048001 Frigidaire Dishwasher Check Valve
NIB	154289801 Frigidaire Dishwasher Shield
1	154825001 Frigidaire Dishwasher Round Heater Heating Element
2	154465101 Frigidaire Dishwasher Heating Element Support Bracket
10	807145201 Frigidaire Dishwasher Cover-Volute
11	807111601 Frigidaire Sump Cover Assembly and Filter
13	154246801 Frigidaire Dishwasher Primary Gasket
14	154723801 Frigidaire Dishwasher SUMP Assembly
16	154246502 Frigidaire Dishwasher Bracket
24	5304507158 Frigidaire Dishwasher Lower Wash Arm Assembly
24B	154754302 Frigidaire Dishwasher Nozzle
24A	5304506740 Frigidaire Dishwasher Spray Arm Center Assembly
32A	154406401 Frigidaire Delivery Tube Gasket
32	5304507087 Frigidaire Dishwasher Tube
55	5304534830 Frigidaire Dishwasher Bracket
58	154246402 Frigidaire Dishwasher P-1 BALL
60	A00126401 Frigidaire Dishwasher Drain Pump Assembly
61	5304506517 Frigidaire Dishwasher Grommet Assembly
62	5304518968 Frigidaire Lower Spray Arm Support
63	5304506533 Frigidaire Dishwasher Filter Base
65	5304506525 Frigidaire Dishwasher Filter Assembly
66	5304532206 Frigidaire Trap
70	MOTOR & PUMP ASSY
71	154762601 Frigidaire Dishwasher Turbidity Sensor
