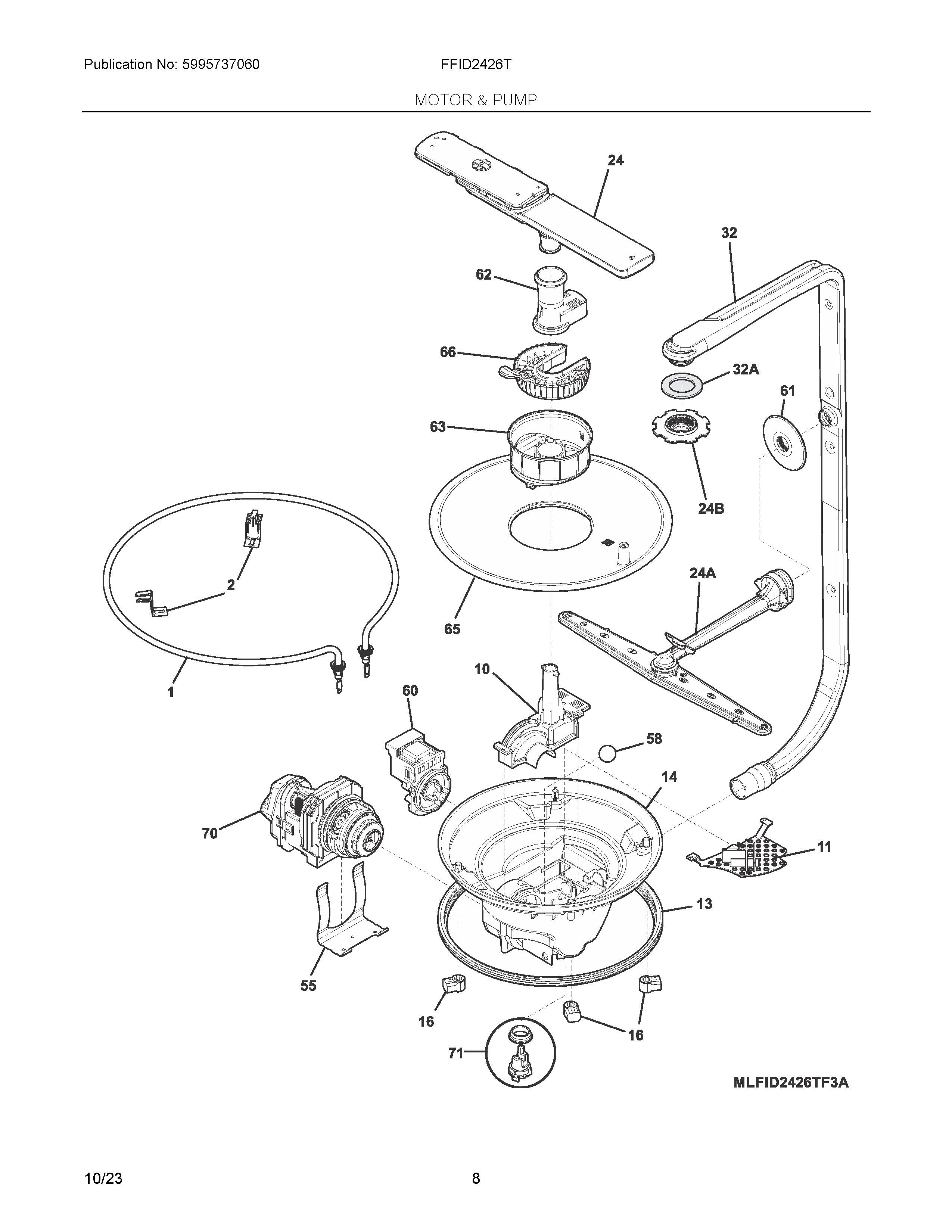

FFID2426TS6A 05 – MOTOR & PUMP

FFID2426TS6A 05 – MOTOR & PUMP

Written by

in

FFID2426TS6A 05 – MOTOR & PUMP

Products

PositionProduct
NI154783101 Frigidaire Dishwasher Screw
NIA154106202 Frigidaire Dishwasher Heater Nut
NIA154491101 Frigidaire Dishwasher Screw
NIA154741501 Frigidaire Dishwasher Screw
NIA154754901 Frigidaire Dishwasher Screw
NIA154779601 Frigidaire Dishwasher Screw
NIB807048001 Frigidaire Dishwasher Check Valve
NIB154289801 Frigidaire Dishwasher Shield
1154825001 Frigidaire Dishwasher Round Heater Heating Element
2154465101 Frigidaire Dishwasher Heating Element Support Bracket
10807145201 Frigidaire Dishwasher Cover-Volute
11807111601 Frigidaire Sump Cover Assembly and Filter
13154246801 Frigidaire Dishwasher Primary Gasket
14154723801 Frigidaire Dishwasher SUMP Assembly
16154246502 Frigidaire Dishwasher Bracket
245304507158 Frigidaire Dishwasher Lower Wash Arm Assembly
24B154754302 Frigidaire Dishwasher Nozzle
24A5304506740 Frigidaire Dishwasher Spray Arm Center Assembly
32A154406401 Frigidaire Delivery Tube Gasket
325304507087 Frigidaire Dishwasher Tube
555304534830 Frigidaire Dishwasher Bracket
58154246402 Frigidaire Dishwasher P-1 BALL
60A00126401 Frigidaire Dishwasher Drain Pump Assembly
615304506517 Frigidaire Dishwasher Grommet Assembly
625304518968 Frigidaire Lower Spray Arm Support
635304506533 Frigidaire Dishwasher Filter Base
655304506525 Frigidaire Dishwasher Filter Assembly
665304532206 Frigidaire Trap
70MOTOR & PUMP ASSY
71154762601 Frigidaire Dishwasher Turbidity Sensor
