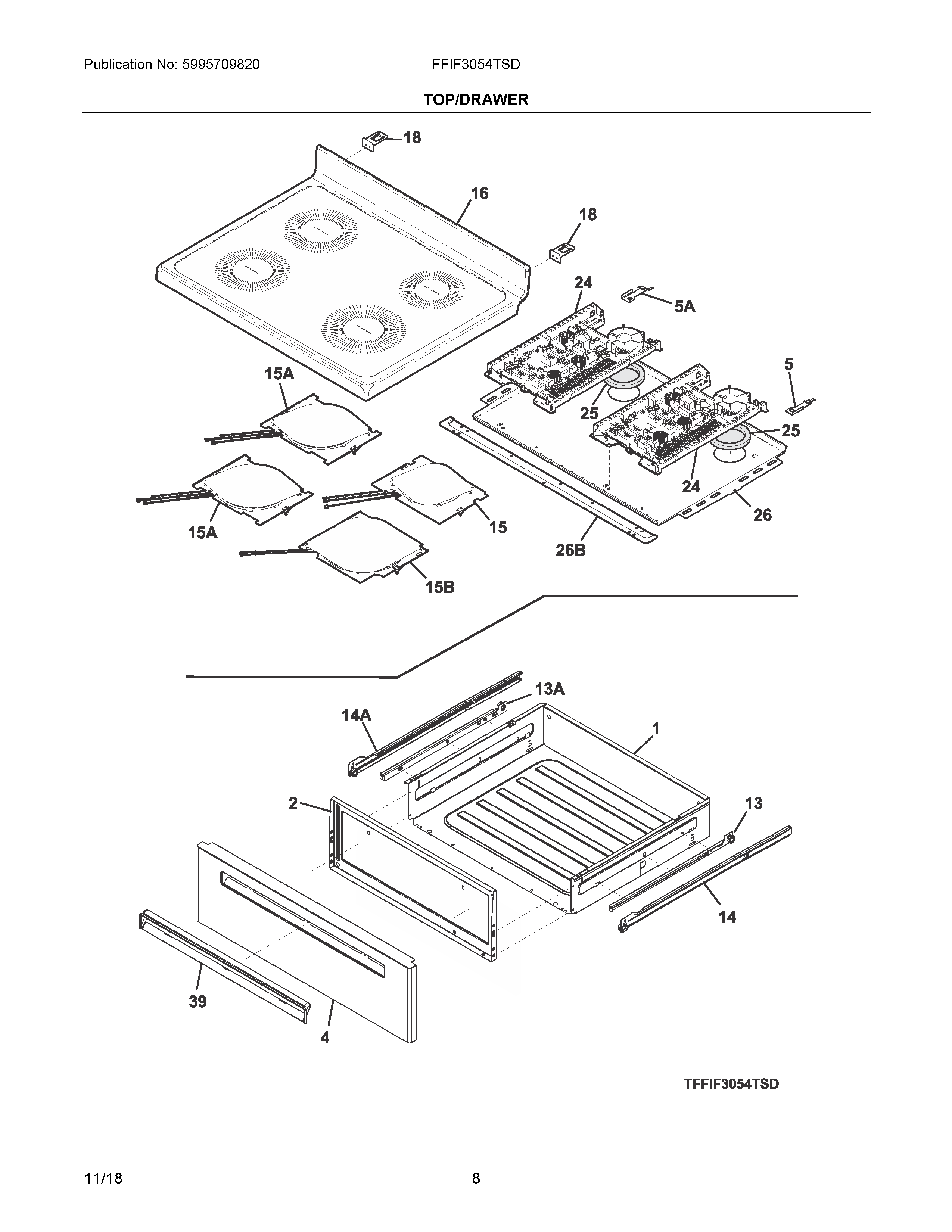

FFIF3054TSD 04 – TOP/DRAWER

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
NI	5304517544 Frigidaire Oven Harness
NI	5304517540 Frigidaire Harness
NI	316001017 Frigidaire Screw
1	316408706 Frigidaire Oven Drawer Assembly
2	5304527989 Frigidaire Liner
4	5304510525 Frigidaire Oven Panel
5	BRACKET, COOKTOP, RH REAR
5A	BRACKET, COOKTOP, LH REAR
11	5304517906 Frigidaire Oven Bracket
13	5304517905 Frigidaire Oven Inner Right Hand Drawer Glide (Black)
13A	5304517903 Frigidaire Oven Glide Drawer
14	5304517904 Frigidaire Oven Outer Right Hand Drawer Glide (Black)
14A	5304517902 Frigidaire Oven Glide Drawer
15B	387761249 Frigidaire Range Element Assembly
15A	387404870 Frigidaire Range Element Assembly
15	387404760 Frigidaire Range Element Assembly
16	5304511086 Frigidaire Smooth Top
18	316580800 Frigidaire Hinge Bracket
24	5304531890 Frigidaire Assembly Generator
25	SEALS, RING, FANS, (2)
26	PANEL, INDUCTION MTG.
26B	316607600 Frigidaire Bracket
39	5304511565 Frigidaire Oven Handle
