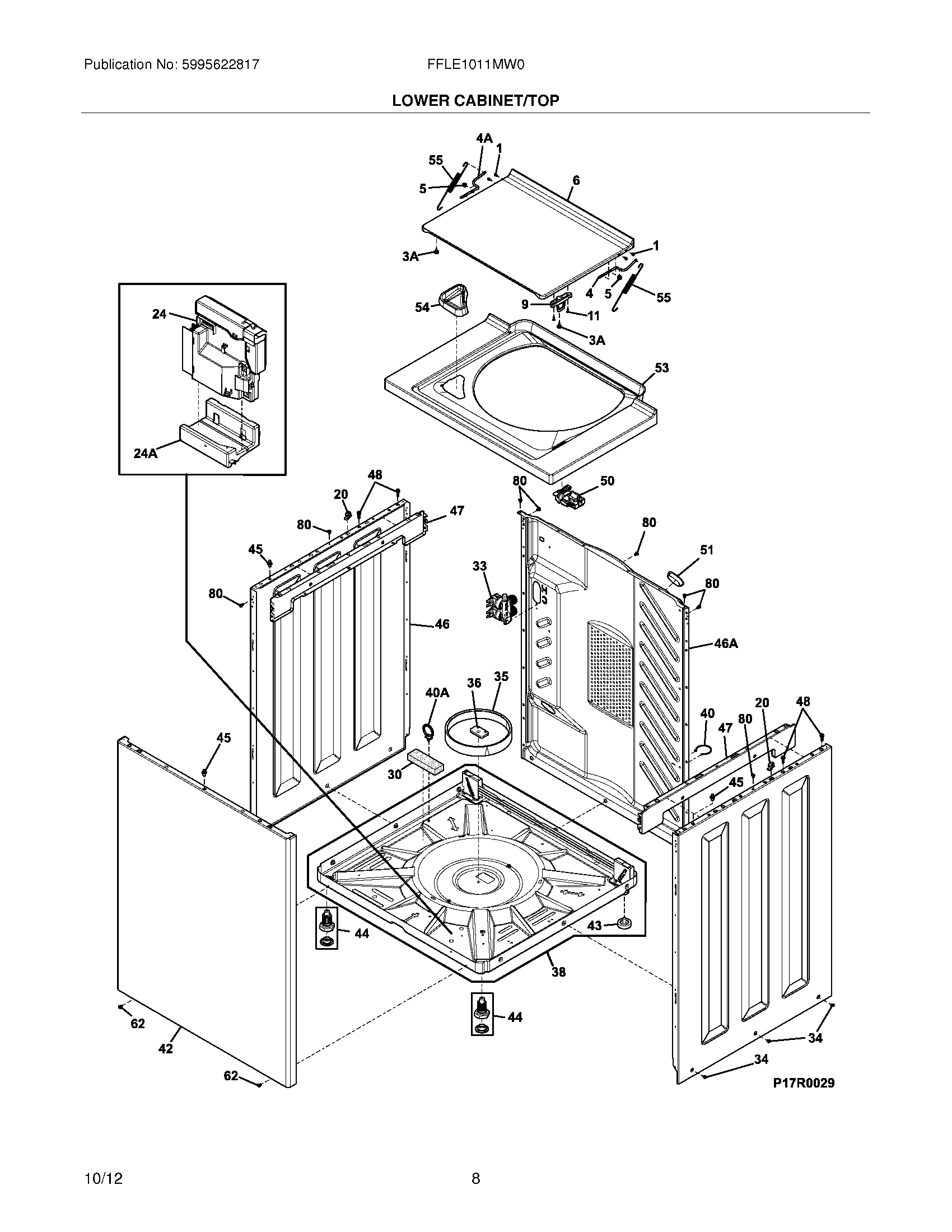

FFLE1011MW0 09 – LOWER CABINET/TOP

Products

PositionProduct
NI134178901 Frigidaire Screw
1134203900 Frigidaire Scr 6-32X.337 Pph D
3A134075500 Frigidaire Bumper-LID
4137469900 Frigidaire Hinge Bar
4A137470900 Frigidaire Hinge Bar
55304488483 Frigidaire GROMMET
65303212872 Frigidaire Lid
9137513712 Frigidaire Striker
113204368 Frigidaire Screw-Strike
203204374 Frigidaire Pin
24137469113NH Frigidaire Washer Motor Control Board
24AWCI 137469200
30WCI 131663500
33137353500 Frigidaire Valve Coil 2
34131205500 Frigidaire Screw
35SNUBBER RING
36SHIPPING BLOCK
38WCI 137364600
405303309503 Frigidaire Clip
40A134261300 Frigidaire Clip
425304501141 Frigidaire Panel
43131422200 Frigidaire P-1 Self Level Leg Pad
44134548800 Frigidaire Washer Leg Levelling
45131346401 Frigidaire Pin
46AWCI 137273201
46WCI 137272610
47WCI 137304500
48137329800 Frigidaire Screw 12-24 Unc X .
50LID LOCK
51131453000 Frigidaire Bushing
53137190810 Frigidaire Panel
545304488476 Frigidaire Dispenser
55134890500 Frigidaire Spring
62131302800 Frigidaire Drum Vane Screw
80131168200 Frigidaire Dryer Screw
