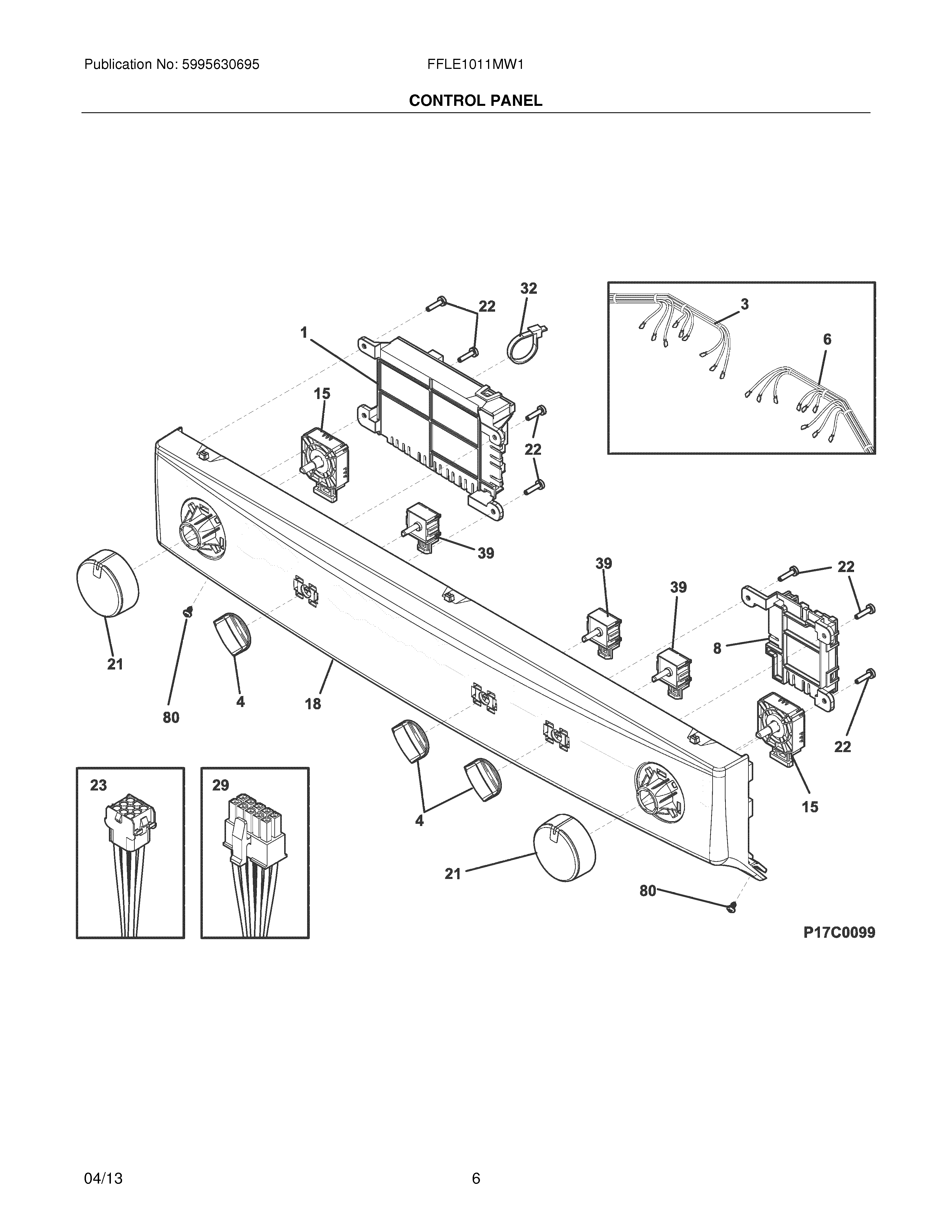

FFLE1011MW1 07 – CONTROL PANEL

Products

Position	Product
NI	134101400 Frigidaire Dryer Kit Terminal Block
1	5304500452 Frigidaire Dryer Control Board
3	137329200 Frigidaire Wiring Harness
4	5304504886 Frigidaire Control Knob
6	WCI 137156200
8	A00537602 Frigidaire Control Board
15	SWITCH, PTS CYCLE, 8 POSITION
18	WCI 137518410
21	WCI 137489800
22	131205100 Frigidaire Screw
23	WCI 137161400
29	5304517938 Frigidaire Wiring Harness
32	5304464772 Frigidaire Refrigerator Wire Tie
39	137052500 Frigidaire Switch
80	134402900 Frigidaire Screw
