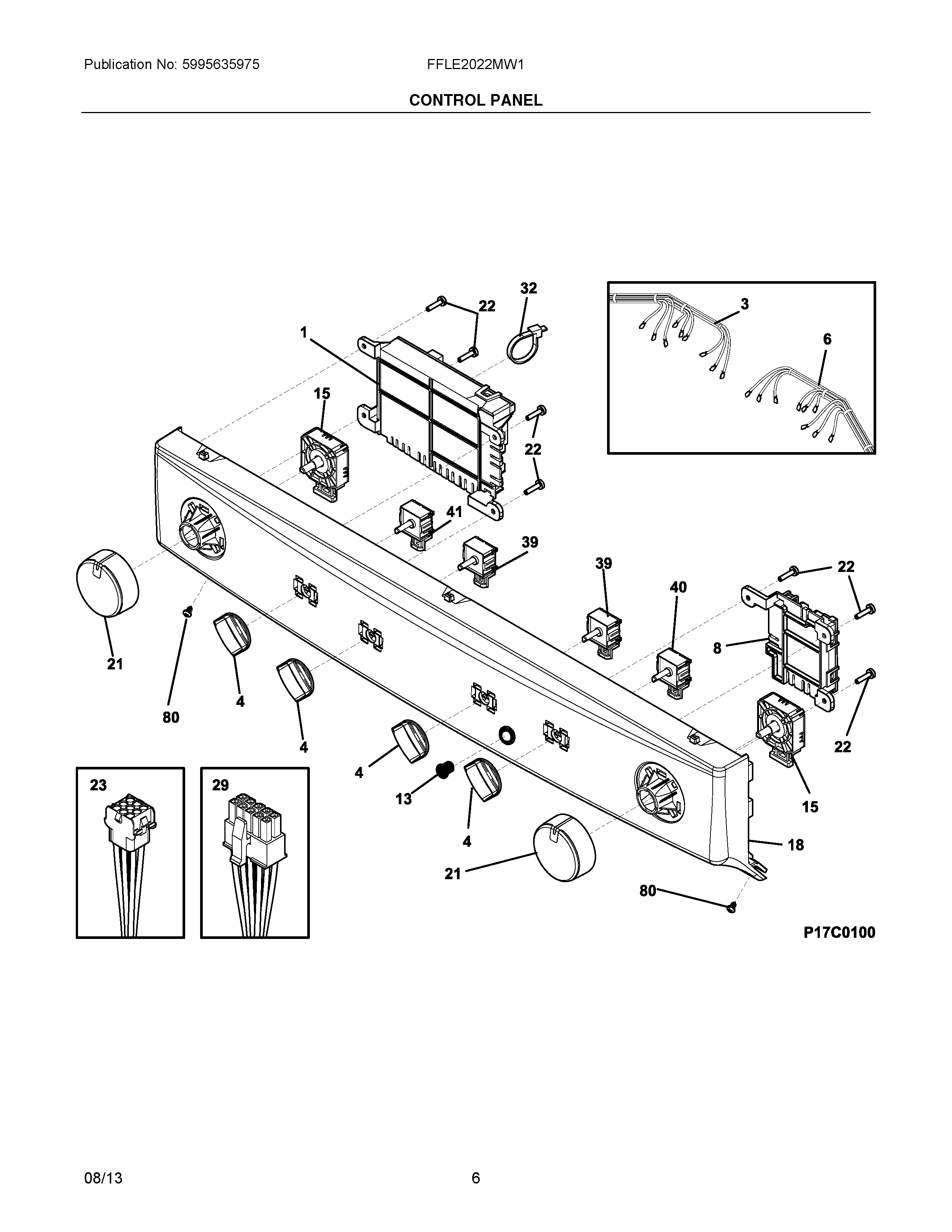

FFLE2022MW1 04 – CONTROL PANEL

FFLE2022MW1 04 – CONTROL PANEL

Written by

in

FFLE2022MW1 04 – CONTROL PANEL

Products

PositionProduct
NIA134101400 Frigidaire Dryer Kit Terminal Block
15304500454 Frigidaire Board
3137329400 Frigidaire Wiring Harness
45304504886 Frigidaire Control Knob
6HARNESS, UPPER LC, WASH
8A00537603 Frigidaire Control Board
13134040800 Frigidaire Switch
15137493400 Frigidaire Switch
18CONSOLE, DECORATED, CONTROL PANEL
21WCI 137489800
22131205100 Frigidaire Screw
23WIRING HARNESS, MAIN
295304517938 Frigidaire Wiring Harness
325304464772 Frigidaire Refrigerator Wire Tie
39137205200 Frigidaire Switch
40137052700 Frigidaire Switch
41137261000 Frigidaire Switch
80134402900 Frigidaire Screw
