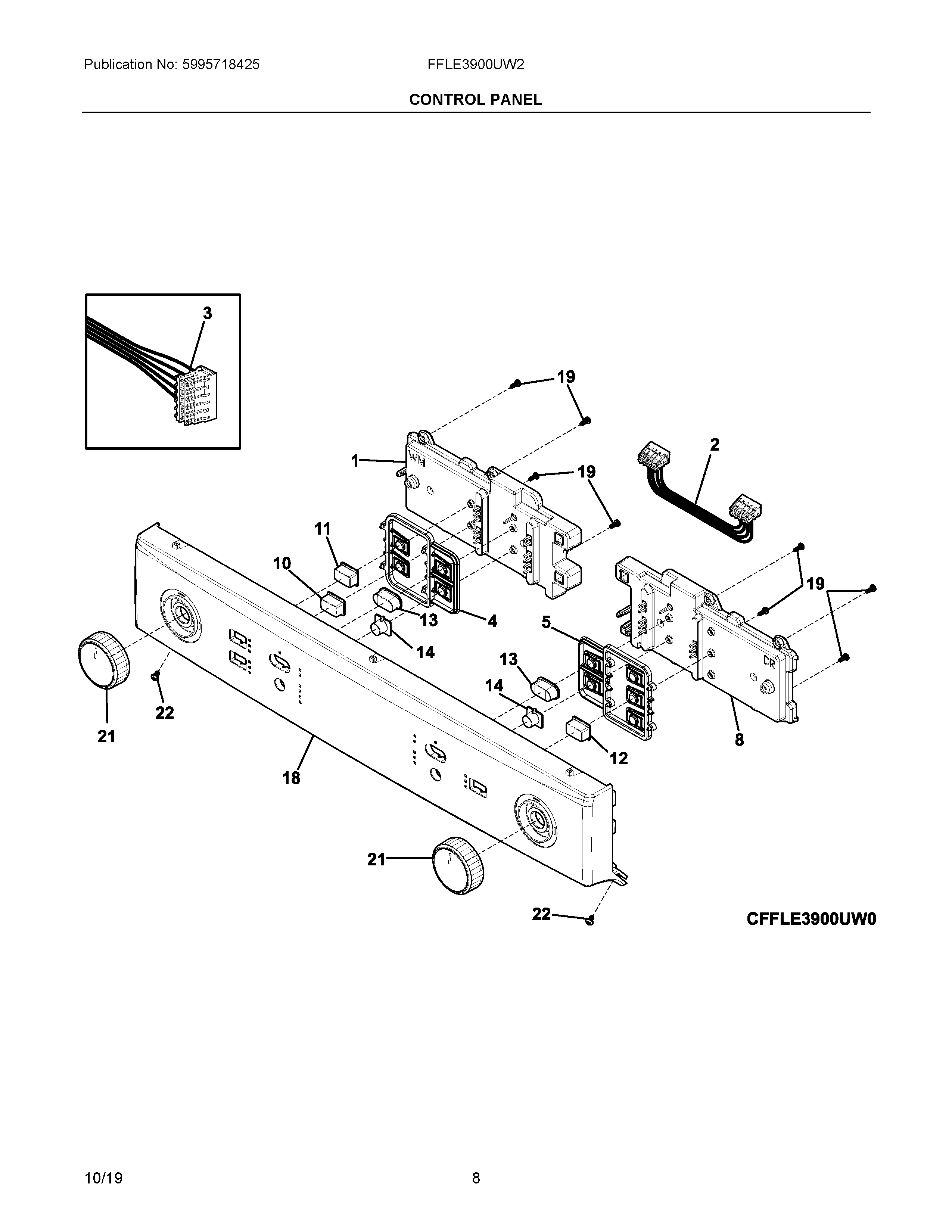

FFLE3900UW2 04 – CONTROL PANEL

FFLE3900UW2 04 – CONTROL PANEL

Written by

in

FFLE3900UW2 04 – CONTROL PANEL

Products

PositionProduct
1BOARD ASSEMBLY
25304520297 Frigidaire Wiring Harness
35304521434 Frigidaire Harness Wiring
45304515821 Frigidaire Support
55304515822 Frigidaire Support Assembly
8BOARD ASSEMBLY
105304524439 Frigidaire Button
11BUTTON, WASH TEMP, WHITE
125304515793 Frigidaire Button
135304515795 Frigidaire Button
145304515797 Frigidaire Button
185304515801 Frigidaire Console
195304505441 Frigidaire Screw
215304515769 Frigidaire Knob Assembly
22131168200 Frigidaire Dryer Screw
