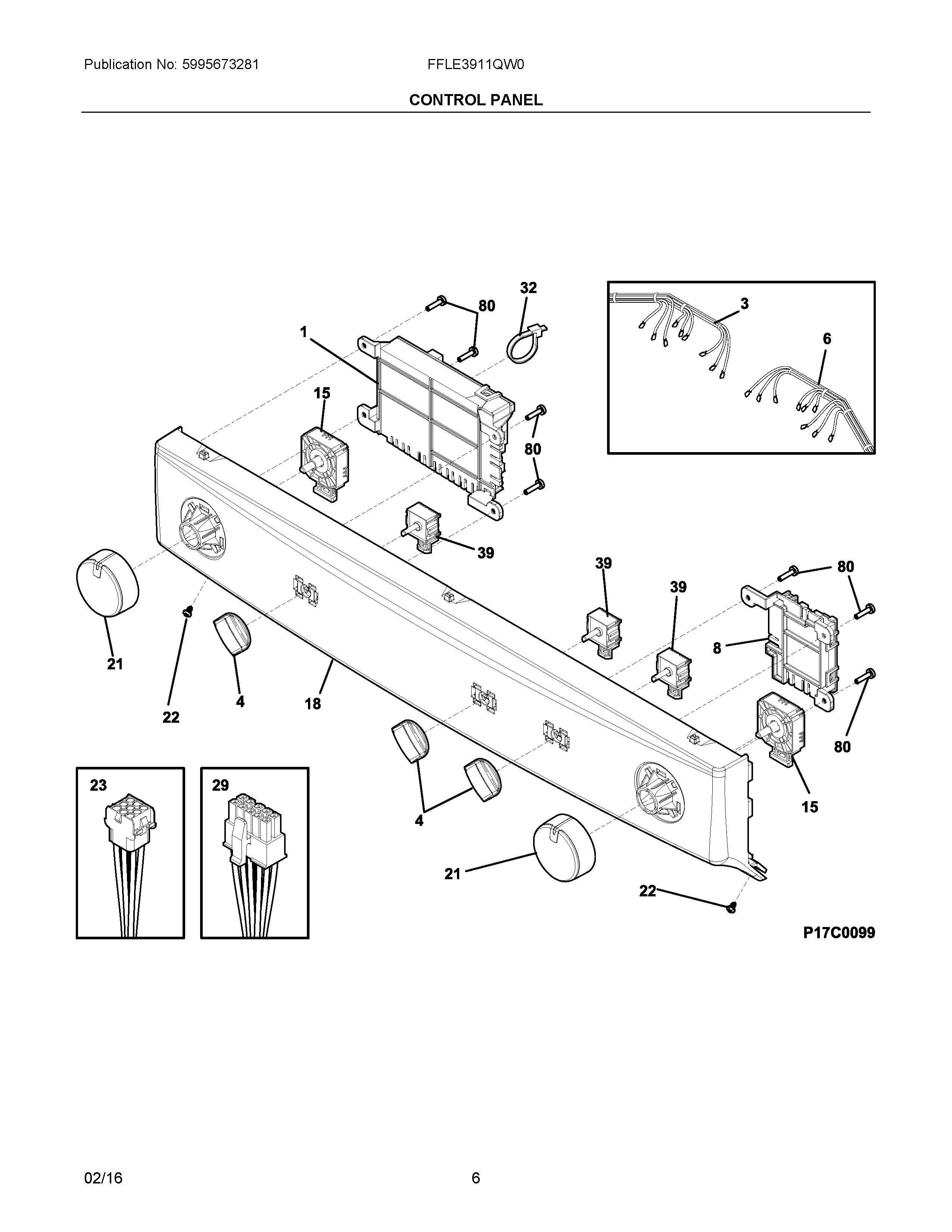

FFLE3911QW0 04 – CONTROL PANEL

Products

Position	Product
NIA	134101400 Frigidaire Dryer Kit Terminal Block
NI	WCI 5304500527
1	5304500452 Frigidaire Dryer Control Board
3	137329200 Frigidaire Wiring Harness
4	5304504886 Frigidaire Control Knob
6	5304500473 Frigidaire Harness
8	5304500456 Frigidaire Washer Housing with PC Board
15	SWITCH, PTS CYCLE, 8 POSITION
18	5304500509 Frigidaire Console
21	WCI 137489800
22	131205100 Frigidaire Screw
23	5304500523 Frigidaire Harness
29	5304517938 Frigidaire Wiring Harness
32	5304464772 Frigidaire Refrigerator Wire Tie
39	137052500 Frigidaire Switch
80	134402900 Frigidaire Screw
