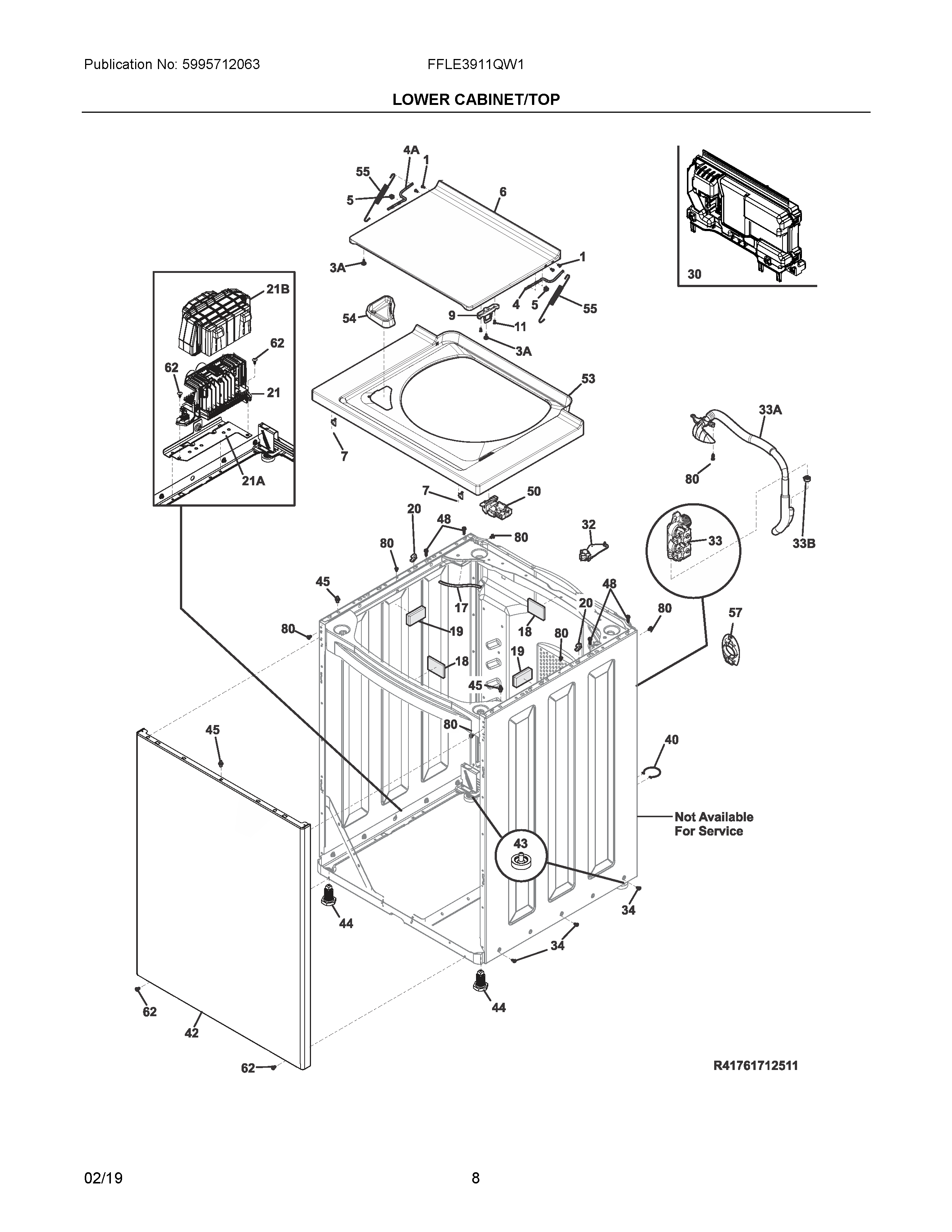

FFLE3911QW1 05 – LOWER CABINET/TOP

Products

Position	Product
NIA	134154100 Frigidaire Screw 10-32 x 0.375 Co
NIA	131205100 Frigidaire Screw
NI	5304500523 Frigidaire Harness
NIA	5304500439 Frigidaire Cover
NIAA	131731500 Frigidaire Fastener
NIA	5304500476 Frigidaire Harness Assembly
1	134203900 Frigidaire Scr 6-32X.337 Pph D
3A	134075500 Frigidaire Bumper-LID
4	137469900 Frigidaire Hinge Bar
4A	137470900 Frigidaire Hinge Bar
5	5304488483 Frigidaire GROMMET
6	5303212872 Frigidaire Lid
7	3205821 Frigidaire Clip
9	137513712 Frigidaire Striker
11	3204368 Frigidaire Screw-Strike
17	137360821 Frigidaire Protector
18	PAD, CUSHION
19	5304515731 Frigidaire Pad
20	3204374 Frigidaire Pin
21A	809161501 Frigidaire Bracket
21B	5304500440 Frigidaire Cover
21	WASHER CONTROL BOARD
30	5304511966 Frigidaire Electrical Control
32	5304500487 Frigidaire Bracket
33A	FILL HOSE
33B	5304488479 Frigidaire Washer Hose Clamp
33	137353500 Frigidaire Valve Coil 2
34	131205500 Frigidaire Screw
40	5303309503 Frigidaire Clip
42	5304501141 Frigidaire Panel
43	131422200 Frigidaire P-1 Self Level Leg Pad
44	134548800 Frigidaire Washer Leg Levelling
45	131346401 Frigidaire Pin
48	137329800 Frigidaire Screw 12-24 Unc X .
50	WASHER LID LOCK
53	137190810 Frigidaire Panel
54	5304488476 Frigidaire Dispenser
55	134890500 Frigidaire Spring
57	134641100 Frigidaire Bracket
62	131302800 Frigidaire Drum Vane Screw
80	131168200 Frigidaire Dryer Screw
