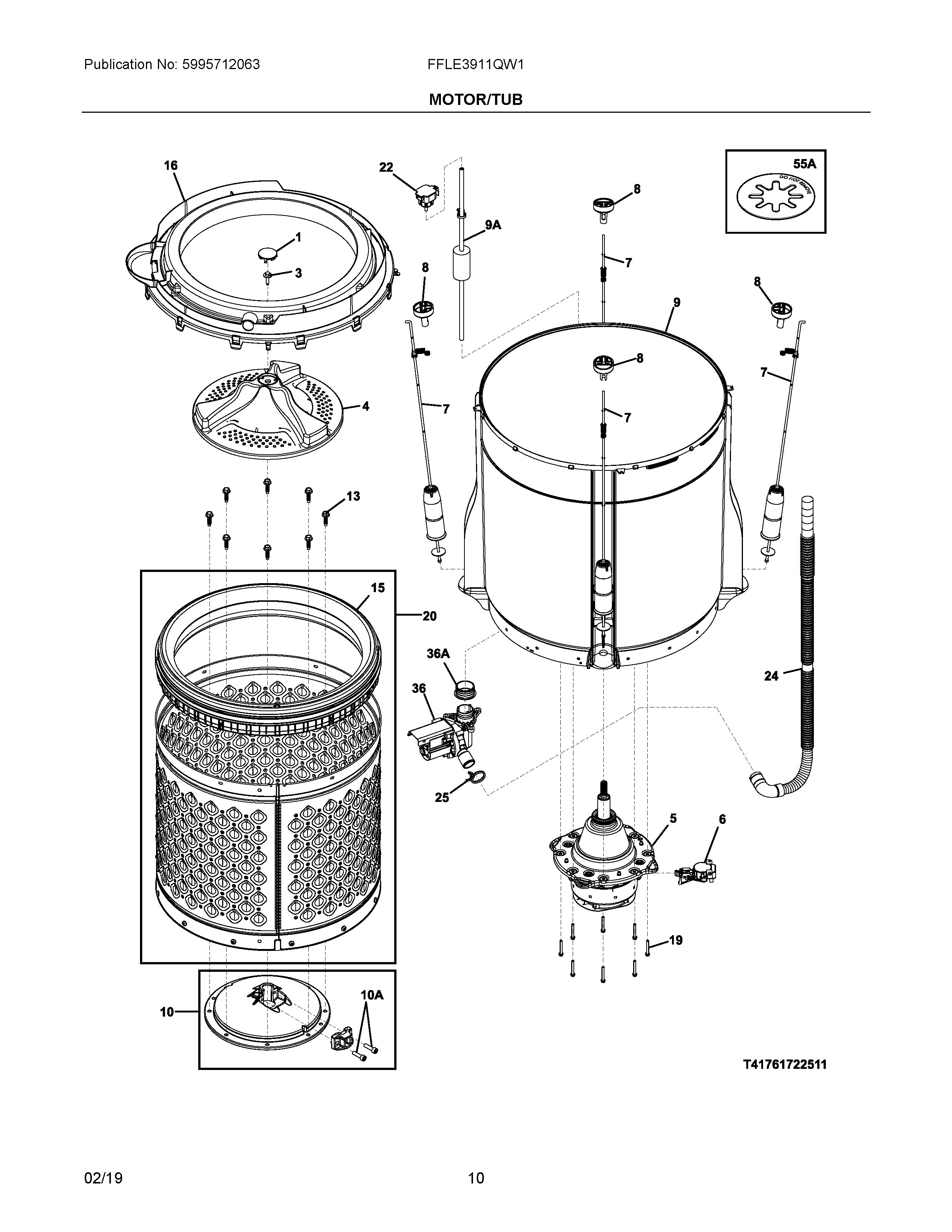

FFLE3911QW1 06 – MOTOR/TUB

Products

Position	Product
NI	134935200 Frigidaire Screw
NI	5304500823 Frigidaire Harness
NIAA	131209800 Frigidaire Clamp
NI	5304500575 Frigidaire Screw
NIA	5304500571 Frigidaire Screw
NI	5304500556 Frigidaire Screw
NIAC	5304500487 Frigidaire Bracket
NI	5304500554 Frigidaire Screw Assembly
NI	WCI 5304517952
NIAB	5304464772 Frigidaire Refrigerator Wire Tie
NIA	137003500 Frigidaire Cable Tie
1	WCI 808676601
3	5304500572 Frigidaire Screw
4	808726001 Frigidaire Agitator
5	5304501142 Frigidaire Trans/Motor/Gear
6	5304536495 Frigidaire Actuator
7	SUSPENSION
8	5304500580 Frigidaire Suspension
9A	5304500517 Frigidaire Hose
9	5304536277 Frigidaire Tub Assembly
10A	5304500432 Frigidaire Screw Assembly
10	5304500426 Frigidaire Hub Assembly
13	5304504896 Frigidaire Screw
15	809088904 Frigidaire Ring
16	809090501 Frigidaire Cover
19	5304501446 Frigidaire Screw
20	WCI 5304517942
20	5304500427 Frigidaire Tub
22	5304504885 Frigidaire Washer Sensor
24	WCI 5304516370
25	CLAMP, HOSE, WIRE
36	PUMP ASSEMBLY
36A	5304500585 Frigidaire Seal Assembly
55A	137385100 Frigidaire Ring
